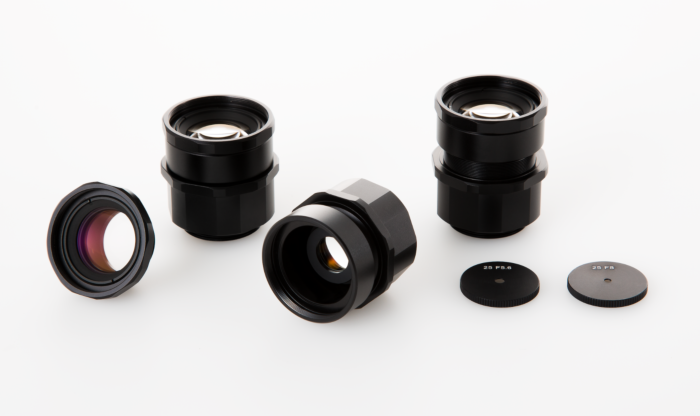

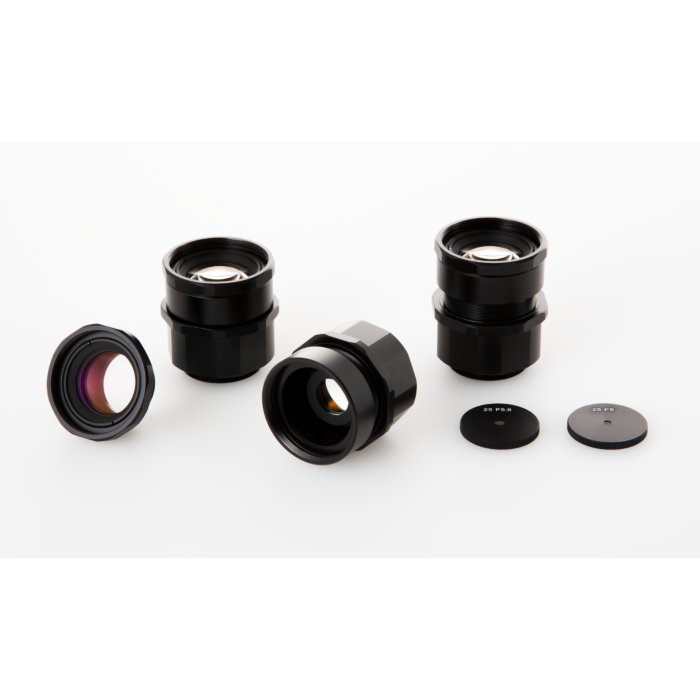

VS Technology VS-MC16H1 High Resolution Ruggedized Lens
Precision Imaging with VS-MC16H1 High-Resolution Ruggedized Lens
Discover the cutting-edge VS Technology VS-MC16H1 lens, designed for industrial and machine vision applications. This high-resolution ruggedized lens is tailored for 1" format imaging, offering unparalleled image quality and precision. With a focal range from f8mm to f50mm across six versatile models, it provides adaptability for various industrial scenarios.
The lens features a unique Changeable Iris plate system, allowing users to select apertures from Fno 1.4 to 5.6 to 8, ensuring optimal light control in diverse environments. The threaded iris plate system secures the aperture settings, preventing dust generation from vibration and ensuring consistent performance.
Its Torque body facilitates easy mounting control, enhancing the user experience in industrial setups. This lens is ideal for applications requiring high-resolution imaging, such as quality control, inspection, and robotics. The 1" support and ruggedized design make it suitable for challenging environments.
Features:
- 1" format lens
- f8mm to f50mm focal range
- Changeable Iris plate system
- Threaded iris plate for stability
- Torque body for easy mounting control
Applications:
- Quality control
- Inspection
- Robotics
- Industrial imaging
- Machine vision solutions
| Focal Length | 16mm |
| Maximum Aperture Ratio | 1: 1.4 |
| Angle Of View (1") | 38.6° x 38.6° (Diagonal: 53.5°) |
| M.O.D | 300 mm |
| TV Distortion (1.1") | -0.65 % |
| Operation | Manual |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1" |
| Filter Thread | M 30.5 P= 0.5 |
| Weight (approx.) | 100 g |
| Dimension | Ø 36.5 (max.) x L = 45 mm |
