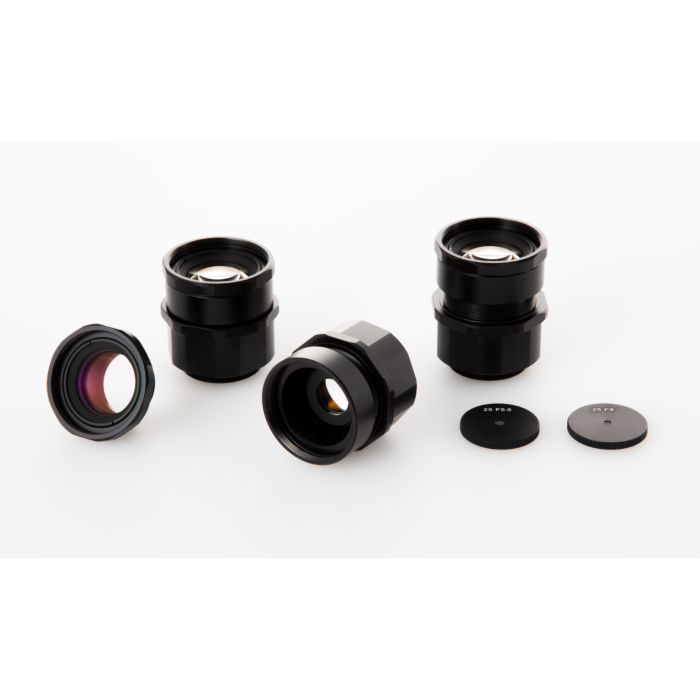

VS Technology VS-MC12H1 High Resolution Ruggedized Lens
Discover Precision Imaging with VS Technology VS-MC12H1 Lens
Elevate your industrial and machine vision capabilities with the VS Technology VS-MC12H1 high-resolution ruggedized lens, designed for 1" format cameras. With support for 1" sensors, this lens offers versatility with six models ranging from f8mm to f50mm, catering to diverse imaging needs. The innovative Changeable Iris plate system provides flexibility with Fno settings of 1.4, 5.6, and 8, ensuring optimal image quality in varying conditions.
The threaded iris plate system enhances stability, locking the iris securely to prevent dust generation from vibration, maintaining image clarity. The torque body facilitates easy mounting control, streamlining installation for seamless integration into your industrial camera setup.
Features:
- 1" format support
- Six models: f8mm to f50mm
- Changeable Iris plate system (Fno 1.4/5.6/8)
- Threaded iris plate system for stability
- Torque body for easy mounting control
Applications:
- Precision manufacturing
- Quality control inspection
- Robotics and automation
- Semiconductor inspection
- Medical imaging
| Focal Length | 12mm |
| Maximum Aperture Ratio | 1: 1.4 |
| Angle Of View (1") | 50.8° x 50.8° (Diagonal: 68.2°) |
| M.O.D | 300 mm |
| TV Distortion (1.1") | -0.32 % |
| Operation | Manual |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1" |
| Filter Thread | M 35.5 P= 0.5 |
| Weight (approx.) | 106 g |
| Dimension | Ø 38 (max.) x L = 48 mm |
