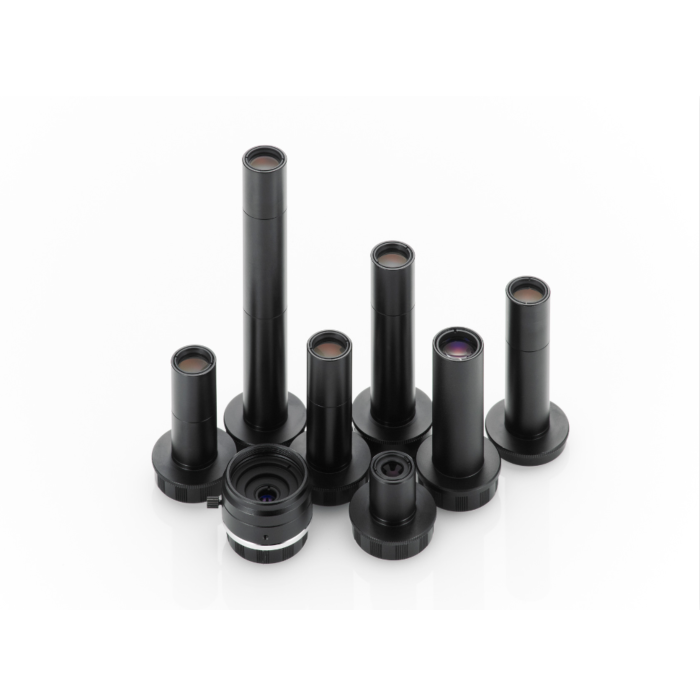

VS Technology VS-MC1-60 Fixed & Variable Magnification Macro Lens
Precision Imaging with VS Technology VS-MC1-60 Macro Lenses
Unlock unparalleled precision in industrial imaging with the VS Technology VS-MC1-60 Fixed & Variable Magnification Macro Lens offered by Aegis Electronic Group. Engineered for compatibility with 2/3" support, these lenses provide versatile magnification options ranging from 0.1x to 2.0x for fixed magnification and 0.24x to 1.0x for variable magnification. With a selection of 15 models, including Φ16 lens variants, these lenses offer optimal adaptability for diverse applications.
The VS-MC1-60 lenses ensure seamless connections in industrial camera setups, enhancing the imaging system's overall performance. Whether you require fixed or variable magnification, these lenses deliver crisp, high-resolution images crucial for machine vision applications. The precision optics make them ideal for tasks requiring detailed inspection and analysis in fields such as quality control, robotics, and automation.
Features:
- 2/3" Support
- Versatile Magnification (0.1x to 2.0x for fixed, 0.24x to 1.0x for variable)
- 15 Models, Including Φ16 Variants
- Seamless Connections in Industrial Camera Setups
- High-Resolution Imaging for Detailed Inspection
Applications:
| Focal Length | 33.7mm | ||
| Optical Mag. | x 1 ± 5 % | ||
| FOV (V x H) | 2/3" - 7.1 x 8.4 1/2" - 4.8 x 6.4 1/3" - 3.6 x 4.8 |
||
| WD | 60.1 mm ± 3 | ||
| O/I (Object & Imager distance) | 135.9 mm | ||
| Working F/# *Value at Iris open | 7.8 | ||
| NA | 0.064 | ||
| DOF at PCoC Ø 0.04mm | 0.6 mm | ||
| TV Distortion (2/3") | 0.00% | ||
| Relative Illuminance (Y=5.5) | 97 % | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 21 g | ||
| Dimension | Ø 30 (max.) x L = 58.3 mm | ||
