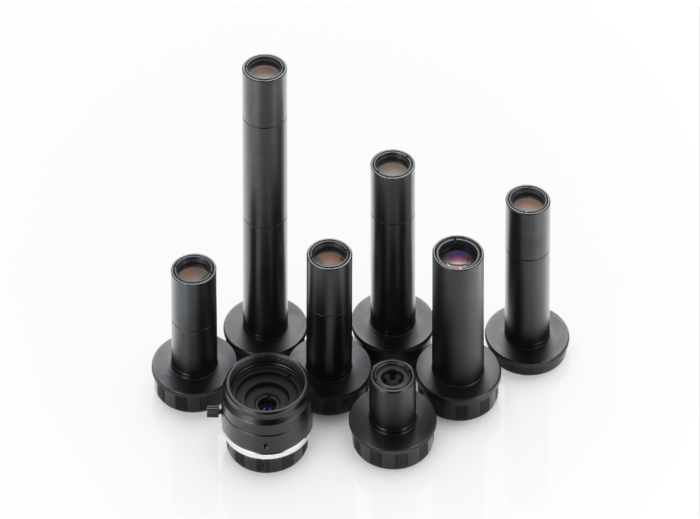

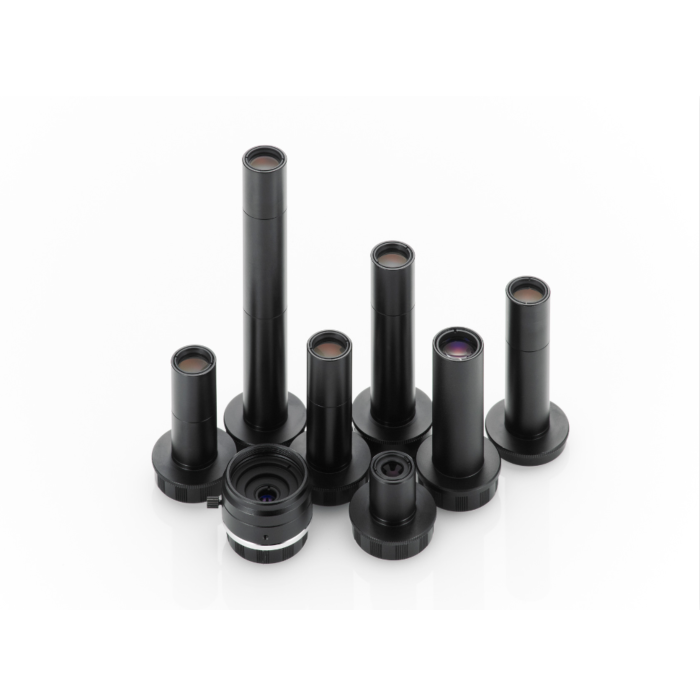

VS Technology VS-MC075-70 Fixed & Variable Magnification Macro Lens
Precision Imaging with VS Technology VS-MC075-70 Macro Lens
Immerse yourself in the world of cutting-edge industrial imaging with the VS Technology VS-MC075-70 Macro Lens offered by Aegis Electronic Group. Engineered with precision, this lens boasts 2/3" support, delivering exceptional image clarity and detail. With a magnification range from 0.1x to 2.0x (Φ16), it offers versatility with 15 fixed magnification models and two variable magnification types.
The VS-MC075-70 lens is equipped with robust connections, ensuring seamless integration into various industrial setups. Its adaptability makes it suitable for diverse applications, from optical inspections to high-resolution imaging in machine vision environments. The lens's Φ16 macro capabilities enable unparalleled close-up views, essential for intricate inspections.
Features:
- 2/3" Support for Exceptional Clarity
- Wide Magnification Range (0.1x - 2.0x)
- 15 Fixed Magnification Models
- 2 Variable Magnification Types
- Robust Connections for Seamless Integration
Applications:
| Focal Length | 27.5mm | ||
| Optical Mag. | x 0.75 ± 5 % | ||
| FOV (V x H) | 2/3" - 9.5 x 11.2 1/2" - 6.4 x 8.5 1/3" - 4.8 x 6.4 |
||
| WD | 50.8 mm ± 2 | ||
| O/I (Object & Imager distance) | 110.1 mm | ||
| Working F/# *Value at Iris open | 5.8 | ||
| NA | 0.065 | ||
| DOF at PCoC Ø 0.04mm | 0.8 mm | ||
| TV Distortion (2/3") | -0.03% | ||
| Relative Illuminance (Y=5.5) | 98 % | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 18.5 g | ||
| Dimension | Ø 30 (max.) x L = 41.8 mm | ||
