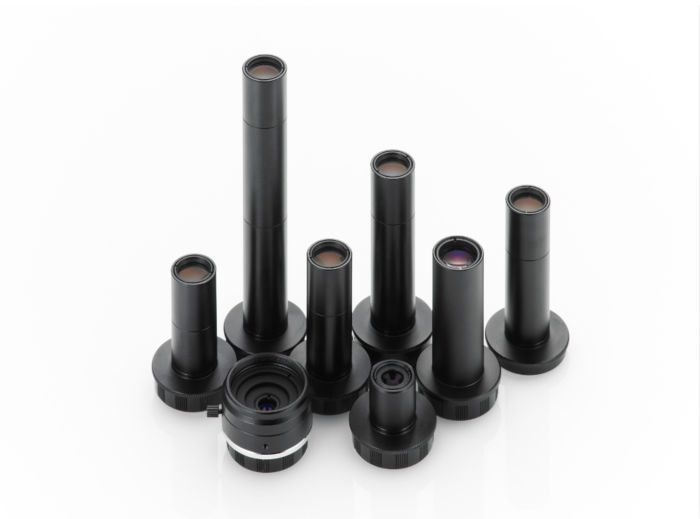

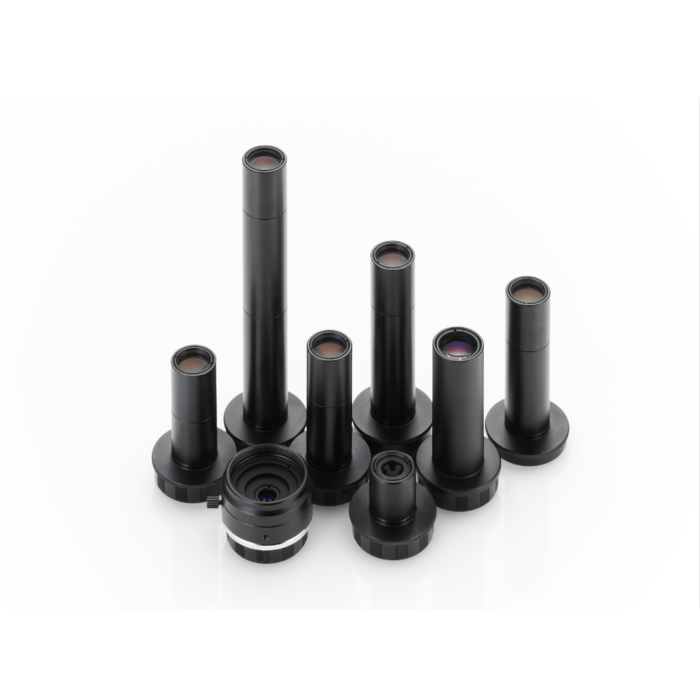

VS Technology VS-MC075-50 Fixed & Variable Magnification Macro Lens
Unleash the power of precision with the VS Technology VS-MC075-50 Macro Lens. Elevate your industrial imaging experience – explore the lens for unparalleled clarity and accuracy.
SKU
VS-MC075-50
Precision Imaging with VS Technology VS-MC075-50 Macro Lens
Discover unparalleled precision in industrial imaging with the VS Technology VS-MC075-50 Fixed & Variable Magnification Macro Lens offered by Aegis Electronic Group. Engineered to support 2/3" sensors, this lens boasts a magnification range from 0.1x to 2.0x with 15 models for fixed magnification and 2 models for variable magnification ranging from 0.24x to 1.0x.
The lens ensures optimal connectivity with cutting-edge Φ16 connections. Its advanced optics deliver high-resolution imaging, making it ideal for precision inspection and intricate machine vision applications. Whether used in factory automation or for specialized tasks requiring macro imaging, this lens stands out for its versatility and reliability.
Features:
- Supports 2/3" sensors
- Magnification range from 0.1x to 2.0x (fixed) and 0.24x to 1.0x (variable)
- Φ16 connections for seamless connectivity
- High-resolution imaging for precision inspection
Applications:
- Precision Inspection
- Machine Vision in Automation
- Industrial Imaging Solutions
- Macro Imaging for Specialized Tasks
| Focal Length | 27.5mm | ||
| Optical Mag. | x 0.75 ± 5 % | ||
| FOV (V x H) | 2/3" - 9.5 x 11.2 1/2" - 6.4 x 8.5 1/3" - 4.8 x 6.4 |
||
| WD | 50.8 mm ± 2 | ||
| O/I (Object & Imager distance) | 110.1 mm | ||
| Working F/# *Value at Iris open | 5.8 | ||
| NA | 0.065 | ||
| DOF at PCoC Ø 0.04mm | 0.8 mm | ||
| TV Distortion (2/3") | -0.03% | ||
| Relative Illuminance (Y=5.5) | 98 % | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 18.5 g | ||
| Dimension | Ø 30 (max.) x L = 41.8 mm | ||
