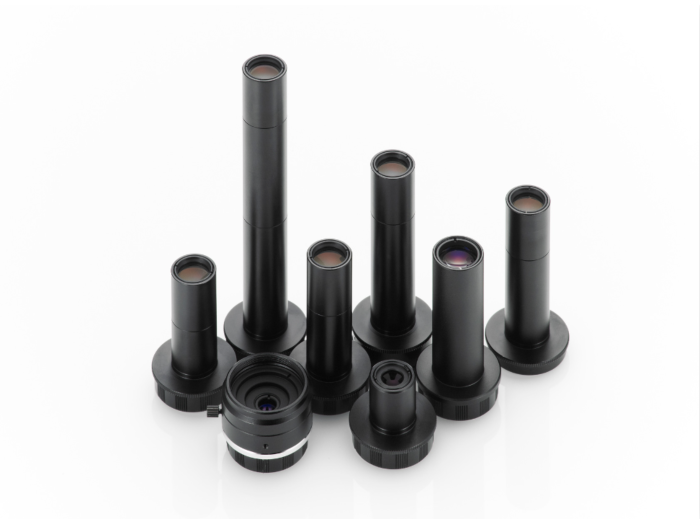

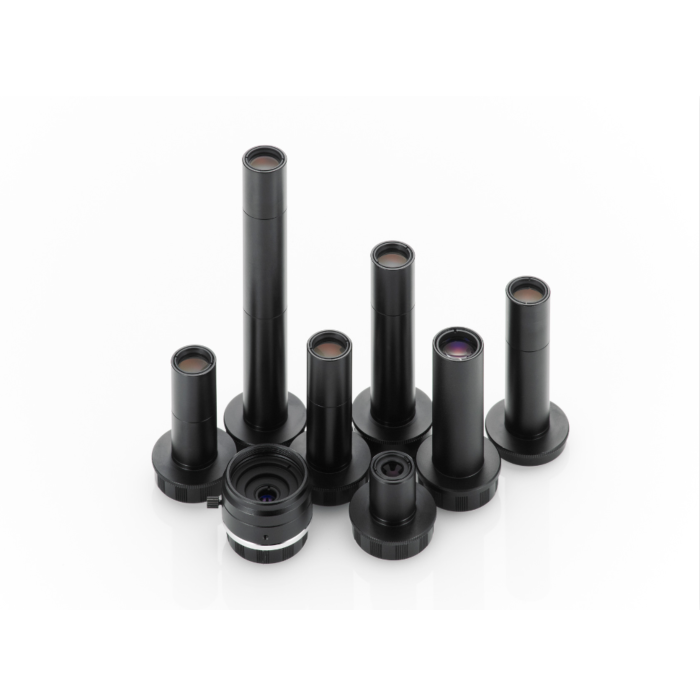

VS Technology VS-MC0510S Fixed & Variable Magnification Macro Lenses
Enhance Your Vision Systems with VS Technology VS-MC0510S Lenses
Aegis Electronic Group Inc. proudly offers the VS Technology VS-MC0510S Fixed & Variable Magnification Macro Lenses, ideal for a range of industrial and machine vision applications. These lenses are designed to deliver exceptional optical performance with a magnification range of 0.5× to 1.0× and a working distance of 118.4 mm to 72.4 mm. The VS-MC0510S series supports 2/3" sensors and features both fixed magnification models (0.1x-2.0x) and variable magnification models (0.24x-1.0x), providing versatility to meet diverse imaging requirements.
VS Technology lenses are known for their robust construction and precise optical clarity, making them suitable for tasks that demand high accuracy and detail. These lenses are perfect for applications such as quality inspection, automated assembly, and precision measurement in various industries, including electronics manufacturing, pharmaceuticals, and automotive.
By incorporating the VS-MC0510S lenses into your vision systems, you can achieve superior image quality, enhancing the efficiency and reliability of your inspection and measurement processes. Trust Aegis Electronic Group Inc. to provide the best in optical solutions, ensuring your industrial applications are equipped with cutting-edge technology for optimal performance.
Features:
- Magnification range: 0.5× to 1.0×
- Working distance: 118.4 mm to 72.4 mm
- Supports 2/3" sensors
- Fixed magnification models: 0.1x-2.0x
- Variable magnification models: 0.24x-1.0x
- C-Mount compatibility
- High precision optics
- Robust construction
Applications:
- Quality inspection
- Automated assembly
- Precision measurement
- Electronics manufacturing
- Pharmaceutical inspection
- Automotive industry applications
- Industrial automation
- Image processing and analysis
| Optical Mag. Range | x 0.5 ～ x 1.0 | ||
| Optical Mag. | x0.5 x0.75 x1.0 | ||
| FOV (V x H) | 2/3" - 14.2 x 16.8 mm 9.5 x 11.2 mm 7.1 x 8.4 mm 1/2" - 9.6 x 12.8 mm 6.4 x 8.5 mm 4.8 x 6.4 mm 1/3" - 7.2 x 9.6 mm 4.8 x 6.4 mm 3.6 x 4.8 mm | ||
| WD | 118.4 mm 87.6 mm 72.4 mm | ||
| O/I (Object & Imager distance) | 200.1 mm 180.9 mm 177.1 mm | ||
| Working F/# *Value at Iris open | 4.8 5.9 6.4 | ||
| DOF at PCoC Ø 0.04mm | 1.5 mm 0.8 mm 0.5 mm | ||
| TV Distortion (2/3") | 0.0% | ||
| Relative Illuminance (Y=5.5) | 88 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 66 g | ||
| Dimension | Ø 32 (max.) x L = 64.2 (X0.5) ～ 87.2 (X1.0) mm | ||
