VS Technology VS-MC0510 Fixed & Variable Magnification Macro Lenses
Enhance Your Imaging Precision with VS Technology Macro Lenses
Aegis Electronic Group Inc. offers the VS Technology VS-MC0510 Fixed & Variable Magnification Macro Lenses, a superior choice for industrial and machine vision applications. With a focal length range of 4.8mm to 6.4mm and working distance of 121.3mm to 75.3mm, these lenses deliver high-precision imaging capabilities. They support a magnification range of 0.5x to 1.0x and feature a working F/# of 4.8 to 6.4. Designed for versatility, these lenses come with C-Mount compatibility and support 2/3" sensors, making them ideal for a variety of imaging needs.

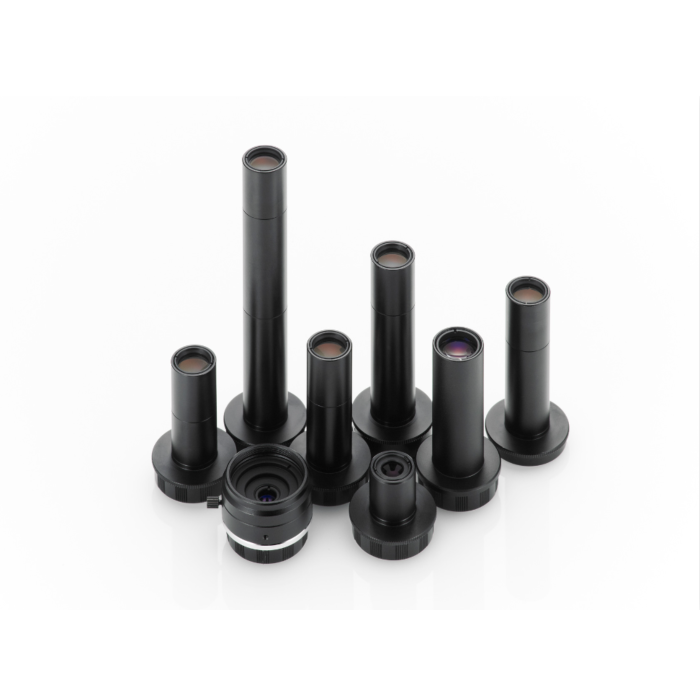

VS Technology lenses are renowned for their quality and reliability in close-up inspection and automated inspection systems. The 15 models available with fixed magnification (0.1x to 2.0x) and the 2 models with variable magnification (0.24x to 1.0x) ensure that there is a perfect fit for every application. These lenses are particularly beneficial for industries requiring detailed image analysis, such as semiconductor inspection, printed circuit board (PCB) examination, and pharmaceutical packaging.
Incorporating VS Technology's macro lenses into your visual inspection systems will enhance accuracy and efficiency, ensuring superior results in industrial automation and quality control processes.
Features:
- Fixed & variable magnification options
- Focal length: 4.8mm to 6.4mm
- Working distance: 121.3mm to 75.3mm
- Magnification: 0.5x to 1.0x
- Working F/#: 4.8 to 6.4
- C-Mount compatibility
- Supports 2/3" sensors
- 15 models with fixed magnification (0.1x to 2.0x)
- 2 models with variable magnification (0.24x to 1.0x)
Applications:
- Semiconductor inspection
- Printed circuit board (PCB) examination
- Pharmaceutical packaging inspection
- Automated visual inspection systems
- High-precision image analysis
- Quality control in manufacturing
- Industrial automation systems
| Optical Mag. Range | x 0.5 ～ x 1.0 | ||
| Optical Mag. | x0.5 x0.75 x1.0 | ||
| FOV (V x H) | 2/3" - 14.2 x 16.8 mm 9.5 x 11.2 mm 7.1 x 8.4 mm 1/2" - 9.6 x 12.8 mm 6.4 x 8.5 mm 4.8 x 6.4 mm 1/3" - 7.2 x 9.6 mm 4.8 x 6.4 mm 3.6 x 4.8 mm | ||
| WD | 121.3 mm 90.6 mm 75.3 mm | ||
| O/I (Object & Imager distance) | 200.1 mm 180.9 mm 177.1 mm | ||
| Working F/# *Value at Iris open | 4.8 5.9 6.4 | ||
| DOF at PCoC Ø 0.04mm | 1.5 mm 0.8 mm 0.5 mm | ||
| TV Distortion (2/3") | 0.0% | ||
| Relative Illuminance (Y=5.5) | 88 % | ||
| Operation | Manual | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 52 g | ||
| Dimension | Ø 32 (max.) x L = 61.3 (X0.5) ～ 84.3 (X1.0) mm | ||
