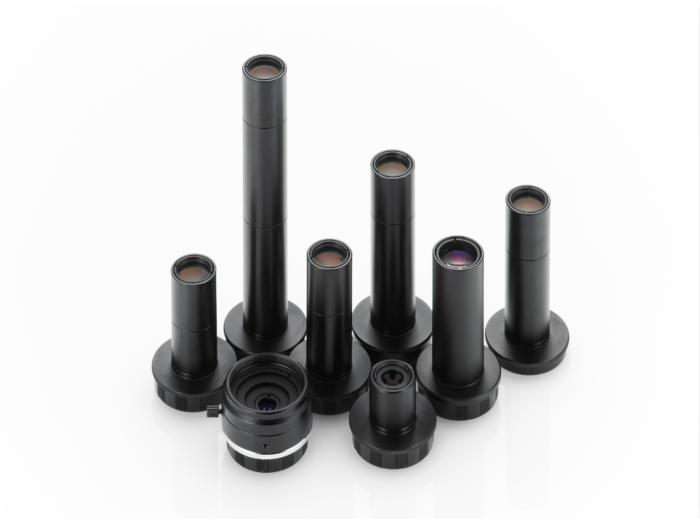

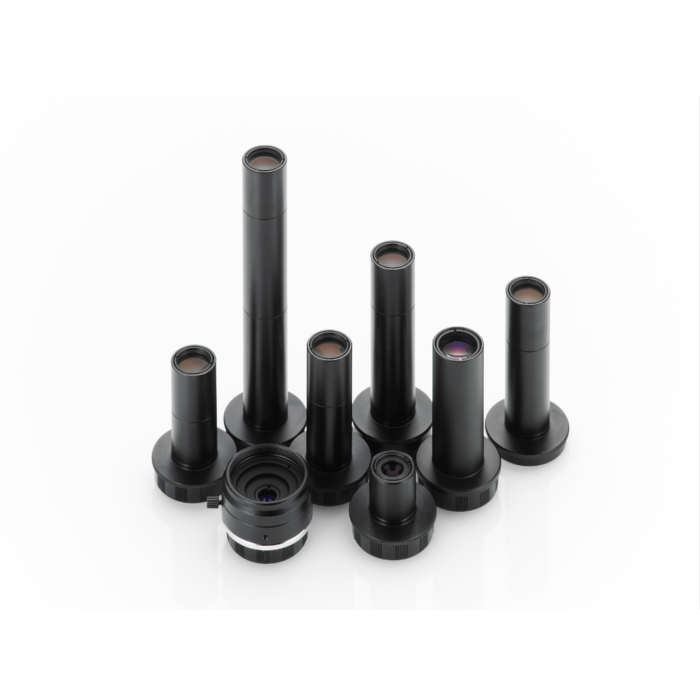

VS Technology VS-MC05-90 Fixed & Variable Magnification Macro Lens
Precision Imaging Unleashed with VS-MC05-90 Lenses
Unlock the pinnacle of industrial imaging with the VS Technology VS-MC05-90 Fixed & Variable Magnification Macro Lens, available through Aegis Electronic Group. These lenses boast a versatile 2/3" support, offering exceptional clarity and precision in machine vision applications. With 15 models featuring fixed magnification (0.1x-2.0x Φ16) and 2 models with variable magnification (0.24x-1.0x), these lenses cater to diverse industrial imaging needs.
The lenses showcase cutting-edge optics, ensuring high-resolution imaging for demanding tasks in industrial inspection and quality control. The Φ16 lens design enhances light capture, delivering detailed and accurate images. Aegis Electronic Group provides a seamless connection experience, ensuring these lenses integrate effortlessly into your industrial setup.
Features:
- Versatile 2/3" support
- 15 models with fixed magnification (0.1x-2.0x Φ16)
- 2 models with variable magnification (0.24x-1.0x)
- High-resolution imaging
- Precision optics for detailed clarity
Applications:
- Industrial Inspection
- Quality Control
- Machine Vision Applications
- Industrial Automation
| Focal Length | 23.7mm | ||
| Optical Mag. | x 0.5 ± 5 % | ||
| FOV (V x H) | 2/3" - 14.2 x 16.8 1/2" - 9.6 x 12.8 1/3" - 7.2 x 9.6 |
||
| WD | 93.8 mm ± 4 | ||
| O/I (Object & Imager distance) | 152.8 mm | ||
| Working F/# *Value at Iris open | 6.1 | ||
| NA | 0.041 | ||
| DOF at PCoC Ø 0.04mm | 2.0 mm | ||
| TV Distortion (2/3") | 0.00% | ||
| Relative Illuminance (Y=5.5) | 95 % | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 18 g | ||
| Dimension | Ø 30 (max.) x L = 41.5 mm | ||
