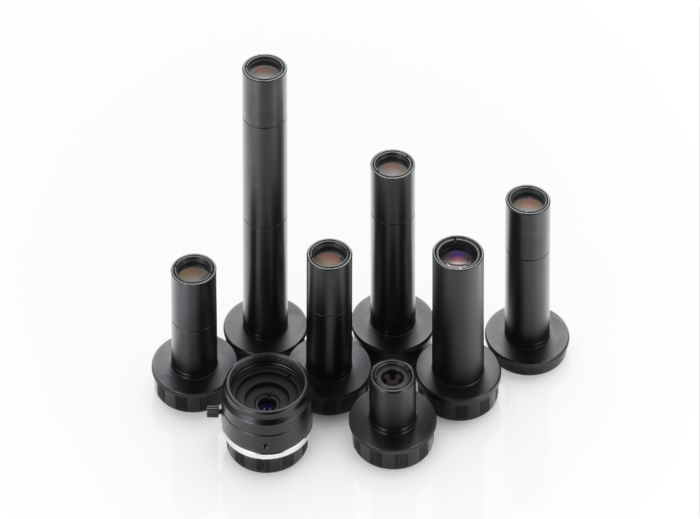

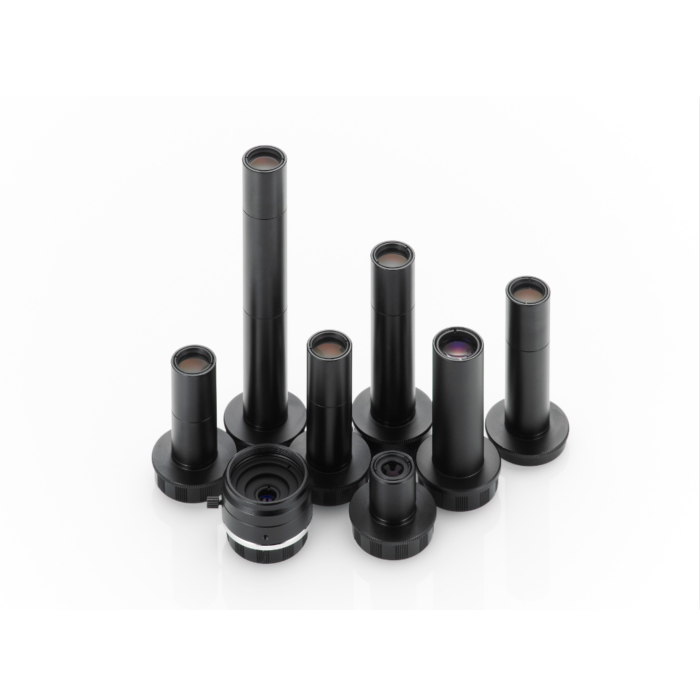

VS Technology VS-MC05-130 Fixed & Variable Magnification Macro Lens
Unlock Precision with VS-MC05-130 Fixed & Variable Magnification Macro Lens
In the realm of industrial imaging, the VS-MC05-130 by VS Technology stands out as a pinnacle of precision. Designed for 2/3" support, this lens series offers versatility with 15 models featuring fixed magnification ranging from 0.1x to 2.0x. Additionally, it presents two variable magnification models (0.24x to 1.0x) for unparalleled flexibility. The lenses boast Φ16 connections, ensuring seamless integration into various setups.
These lenses excel in applications requiring high-resolution imaging and optical inspection. Whether it's industrial automation, machine vision, or macro imaging, the VS-MC05-130 delivers crisp and detailed visuals. Aegis Electronic Group proudly presents this series as part of its commitment to providing cutting-edge industrial camera solutions. Elevate your imaging capabilities with the VS-MC05-130, experiencing the perfect synergy of technology and precision.
Features:
- 2/3" support
- 15 fixed magnification models (0.1x to 2.0x)
- 2 variable magnification models (0.24x to 1.0x)
- Φ16 connections for seamless integration
- Ideal for high-resolution imaging and optical inspection
Applications:
- Industrial Automation
- Machine Vision
- Macro Imaging
- Precision Optical Inspection
- Versatile Imaging Solutions
| Focal Length | 43.9mm | ||
| Optical Mag. | x 0.5 ± 5 % | ||
| FOV (V x H) | 2/3" - 14.2 x 16.8 1/2" - 9.6 x 12.8 1/3" - 7.2 x 9.6 | ||
| WD | 126.3 mm ± 4 | ||
| O/I (Object & Imager distance) | 198.8 mm | ||
| Working F/# *Value at Iris open | 6.1 | ||
| NA | 0.041 | ||
| DOF at PCoC Ø 0.04mm | 2.0 mm | ||
| TV Distortion (2/3") | 0.00% | ||
| Relative Illuminance (Y=5.5) | 96 % | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 21 g | ||
| Dimension | Ø 30 (max.) x L = 55 mm | ||
