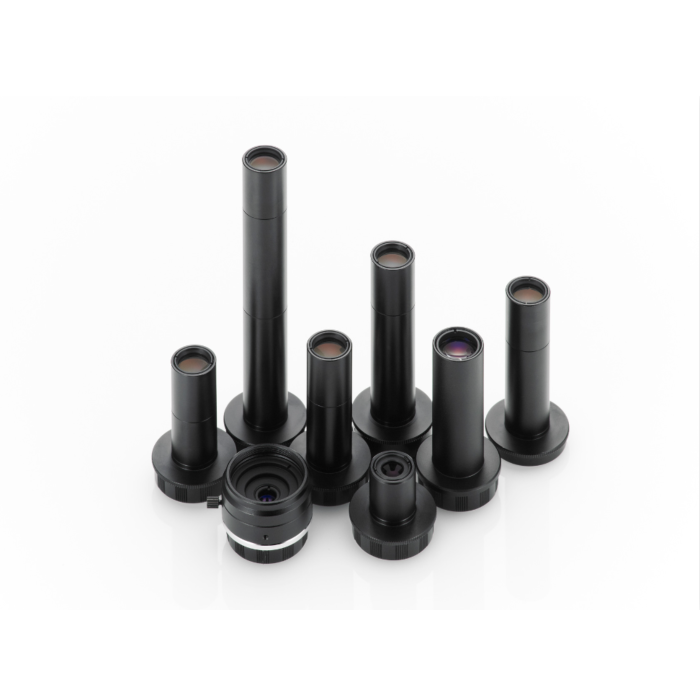

VS Technology VS-MC03-180 Fixed & Variable Magnification Macro Lens
Revolutionizing Industrial Imaging with VS-MC03-180 Macro Lenses
Discover cutting-edge imaging capabilities with the VS Technology VS-MC03-180 Fixed & Variable Magnification Macro Lens, available at Aegis Electronic Group. Designed for industrial and machine vision applications, these lenses redefine precision in imaging.
The VS-MC03-180 lenses support 2/3" sensors, providing exceptional clarity and detail. With a magnification range from 0.1x to 2.0x (Φ16), choose from 15 models with fixed magnification or opt for the 2 types and 2 models with variable magnification ranging from 0.24x to 1.0x. The lenses ensure optimal performance with a robust Φ16 connection.
These lenses cater to a myriad of industrial applications, from automated inspection to quality control. The high-resolution optics guarantee sharp and detailed imaging, making them ideal for tasks requiring precision. The 2/3" sensor support further enhances their adaptability to diverse machine vision setups.
Features:
- 2/3" sensor support
- Versatile magnification options (0.1x to 2.0x, Φ16)
- 15 models with fixed magnification
- 2 models with variable magnification (0.24x to 1.0x)
- Robust Φ16 connection for optimal performance
Applications:
- Automated Inspection Systems
- Quality Control Processes
- Industrial Imaging Solutions
- Machine Vision Setups
- Precision Manufacturing Processes
| Focal Length | 43.9mm | ||
| Optical Mag. | x 0.3 ± 5 % | ||
| FOV (V x H) | 2/3" - 23.7 x 28.0 1/2" - 16.0 x 21.3 1/3" - 12.0 x 16.0 | ||
| WD | 184.8 mm ± 9 | ||
| O/I (Object & Imager distance) | 248.5 mm | ||
| Working F/# *Value at Iris open | 5.3 | ||
| NA | 0.028 | ||
| DOF at PCoC Ø 0.04mm | 4.7 mm | ||
| TV Distortion (2/3") | 0.00% | ||
| Relative Illuminance (Y=5.5) | 94 % | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 19 g | ||
| Dimension | Ø 30 (max.) x L = 46.2 mm | ||
