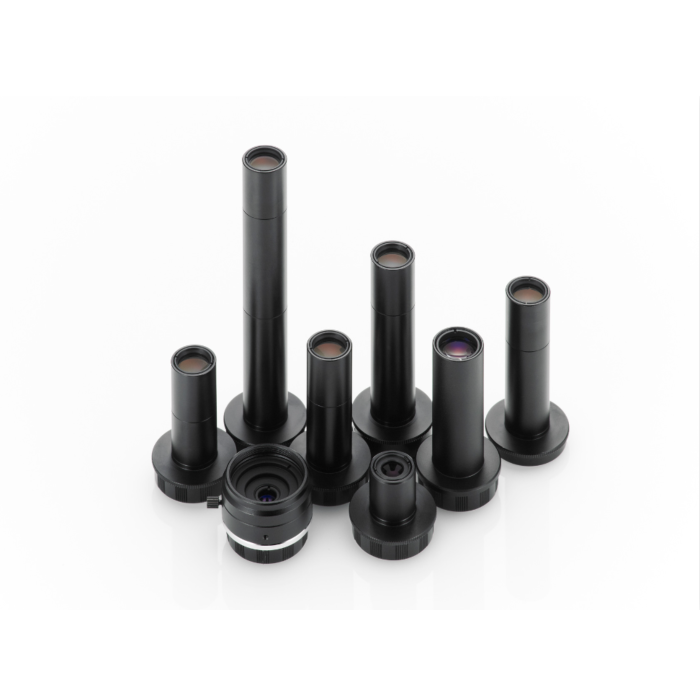

VS Technology VS-MC03-135 Fixed & Variable Magnification Macro Lens
Revolutionize Imaging Precision with VS-MC03-135 Industrial Lens
Immerse yourself in the realm of unparalleled precision with the VS-MC03-135 Fixed & Variable Magnification Macro Lens, proudly offered by Aegis Electronic Group. Engineered to support 2/3" imaging, this lens boasts a versatile magnification range from 0.1x to 2.0x, with 15 models featuring fixed magnification and 2 models offering variable magnification from 0.24x to 1.0x.
Connectivity is seamless with Φ16 support, ensuring optimal optical performance. Ideal for industrial and machine vision applications, this lens provides exceptional clarity and detail for high-resolution imaging tasks. Whether you require fixed magnification for specific tasks or variable magnification for flexibility, the VS-MC03-135 lens is your go-to solution.
Features:
- 2/3" Imaging Support
- Versatile Magnification (0.1x to 2.0x)
- Fixed and Variable Magnification Models
- Seamless Φ16 Connectivity
- High-Resolution Imaging
Applications:
- Industrial Inspection
- Machine Vision Systems
- Precision Imaging Tasks
- Macro Imaging Solutions
- Quality Control in Manufacturing
| Focal Length | 33.7mm | ||
| Optical Mag. | x 0.3 ± 5 % | ||
| FOV (V x H) | 2/3" - 23.7 x 28.0 1/2" - 16.0 x 21.3 1/3" - 12.0 x 16.0 |
||
| WD | 138.7 mm ± 6 | ||
| O/I (Object & Imager distance) | 190.9 mm | ||
| Working F/# *Value at Iris open | 5.3 | ||
| NA | 0.028 | ||
| DOF at PCoC Ø 0.04mm | 4.7 mm | ||
| TV Distortion (2/3") | 0.00% | ||
| Relative Illuminance (Y=5.5) | 93 % | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 16 g | ||
| Dimension | Ø 30 (max.) x L = 34.7 mm | ||
