VS Technology VS-MC03-100 Fixed & Variable Magnification Macro Lens
Elevate your industrial imaging with the VS-MC03-100 Macro Lens. Unrivaled clarity, versatile magnification, and seamless integration for precision in quality inspection and automation. Explore now!
SKU
VS-MC03-100
Unlocking Precision: VS Technology VS-MC03-100 Macro Lens

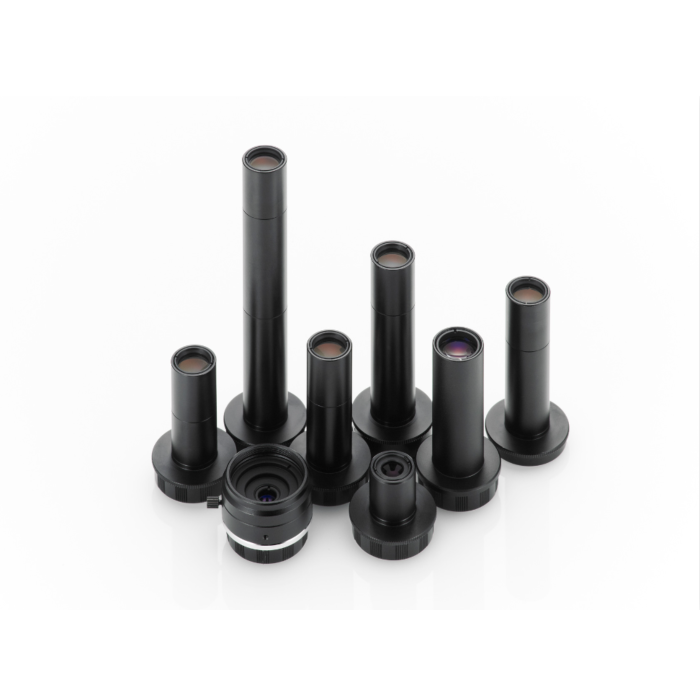

Experience unparalleled clarity with the VS Technology VS-MC03-100 Fixed & Variable Magnification Macro Lens, designed for 2/3" support. This cutting-edge lens boasts a versatile magnification range from 0.1x to 2.0x with Φ16 support, offering 15 models with fixed magnification and 2 models with variable magnification from 0.24x to 1.0x.
Crafted for precision imaging, the lens is a cornerstone in industrial and machine vision applications. Its robust connections ensure seamless integration into imaging systems, providing a vital component for quality inspection and automation processes. The Φ16 lens design enhances compatibility and flexibility.
Features:
- Variable magnification from 0.24x to 1.0x
- Fixed magnification options from 0.1x to 2.0x
- Φ16 lens for enhanced compatibility
- Designed for 2/3" support
- Ideal for precision imaging in industrial applications
Applications:
- Quality Inspection Systems
- Automation Processes
- Industrial Imaging Solutions
- Machine Vision Applications
- Imaging System Components
| Focal Length | 27.5mm | ||
| Optical Mag. | x 0.3 ± 5 % | ||
| FOV (V x H) | 2/3" - 23.7 x 28.0 1/2" - 16.0 x 21.3 1/3" - 12.0 x 16.0 |
||
| WD | 105.8 mm ± 5 | ||
| O/I (Object & Imager distance) | 152.8 mm | ||
| Working F/# *Value at Iris open | 5.2 | ||
| NA | 0.029 | ||
| DOF at PCoC Ø 0.04mm | 4.6 mm | ||
| TV Distortion (2/3") | 0.00% | ||
| Relative Illuminance (Y=5.5) | 94 % | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 16 g | ||
| Dimension | Ø 30 (max.) x L = 29.5 mm | ||
