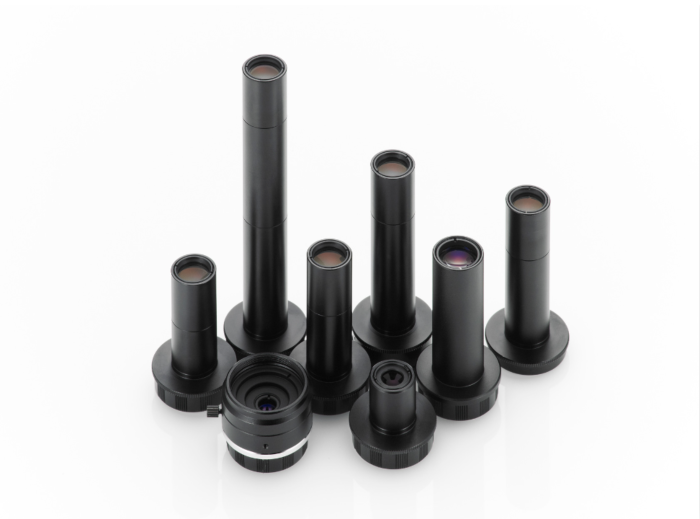

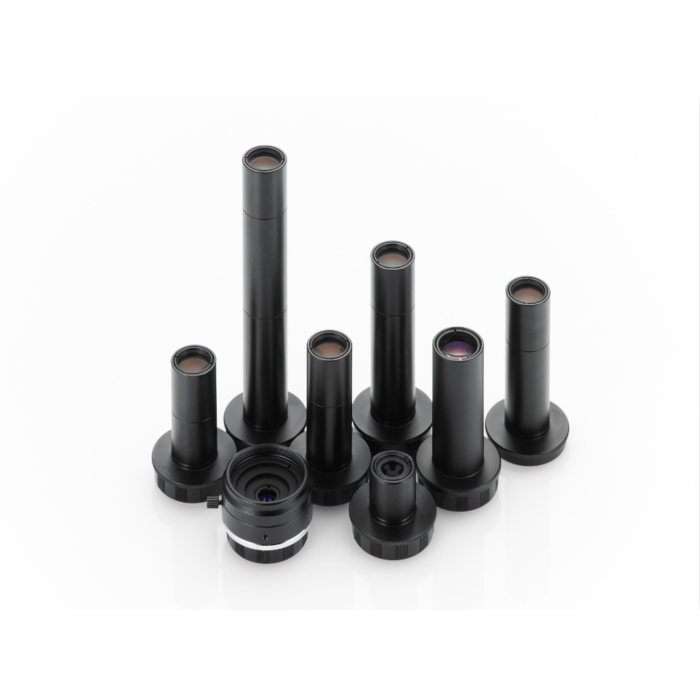

VS Technology VS-MC024S Fixed & Variable Magnification Macro Lenses
Enhance Your Imaging Precision with VS Technology VS-MC024S Macro Lenses
Aegis Electronic Group Inc. proudly offers the VS Technology VS-MC024S Fixed & Variable Magnification Macro Lenses, designed to deliver exceptional performance in both industrial and machine vision applications. These lenses are engineered to support high-resolution imaging with a focal length range of 4.1mm to 5.1mm and a working distance between 218.1mm to 103.3mm. With a magnification range of 0.24× to 0.6× and a working F/# of 4.1 to 5.1, these lenses provide versatile and precise imaging capabilities.
The VS-MC024S series includes models supporting 2/3" sensors and offers both fixed magnification options (0.1x to 2.0x) and variable magnification models (0.24x to 1.0x). These features make them ideal for various applications, such as industrial inspection, quality control, and automation systems, where precision and reliability are paramount.
VS Technology is renowned for its high-quality optics, ensuring that every lens delivers sharp, clear images with minimal distortion. These lenses are perfect for use in environments that demand accuracy and consistency, such as manufacturing, electronics inspection, and other critical industrial processes.
Upgrade your imaging system with VS Technology VS-MC024S macro lenses from Aegis Electronic Group and experience the benefits of superior optical performance in your industrial and machine vision applications.
Features:
- Focal Length: 4.1mm to 5.1mm
- Working Distance: 218.1mm to 103.3mm
- Magnification: 0.24× to 0.6×
- Working F/#: 4.1 to 5.1
- C-Mount compatibility
- Supports 2/3" sensors
- Fixed magnification: 0.1x to 2.0x
- Variable magnification: 0.24x to 1.0x
Applications:
- Industrial inspection
- Quality control
- Automation systems
- Manufacturing processes
- Electronics inspection
- Precision assembly
- Component analysis
- High-resolution imaging
- Defect detection
- Measurement and metrology
| Optical Mag. Range | x 0.24 ～ x 0.6 | ||
| Optical Mag. | x0.24 x0.4 x0.6 | ||
| FOV (V x H) | 2/3" - 29.6 x 35.0 mm 17.8 x 21.0 mm 11.8 x 14.0 mm 1/2" - 20.0 x 26.7 mm 12.0 x 16.0 mm 8.0 x 10.7 mm 1/3" - 15.0 x 20.0 mm 9.0 x 12.0 mm 6.0 x 8.0 mm | ||
| WD | 218.1 mm 141.4 mm 103.0 mm | ||
| O/I (Object & Imager distance) | 287.8 mm 218.5 mm 189.3 mm | ||
| Working F/# *Value at Iris open | 4.1 4.6 5.1 | ||
| DOF at PCoC Ø 0.04mm | 5.7 mm 2.3 mm 1.1 mm | ||
| TV Distortion (2/3") | 0.01% | ||
| Relative Illuminance (Y=5.5) | 80 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 68 g | ||
| Dimension | Ø 32 (max.) x L = 52.2 (X0.24) ～ 68.8 (X0.6) mm | ||
