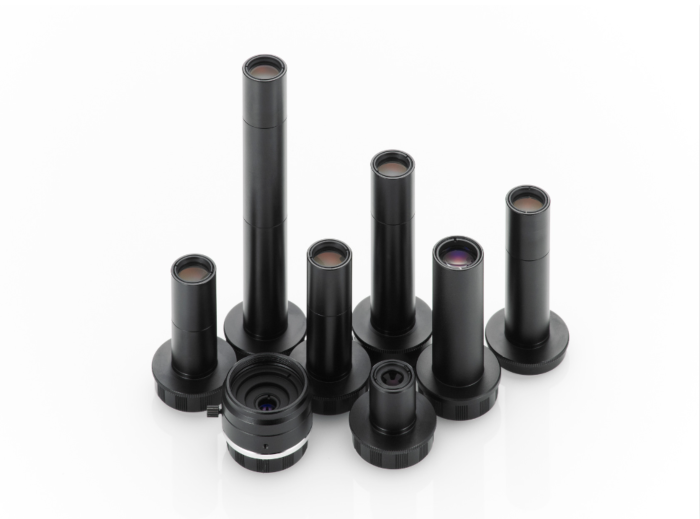

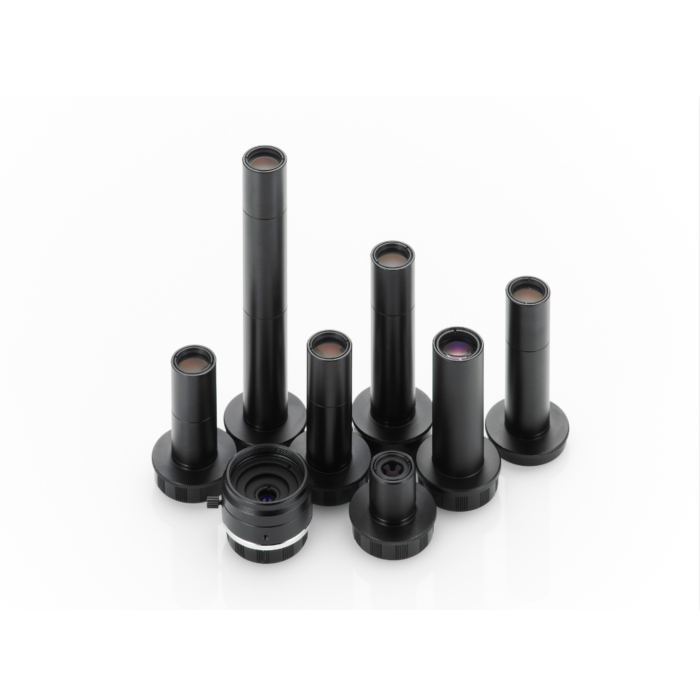

VS Technology VS-MC024 Fixed & Variable Magnification Macro Lenses
Explore the Versatility of VS Technology VS-MC024 Macro Lenses
Aegis Electronic Group Inc. is proud to offer the VS Technology VS-MC024 Fixed & Variable Magnification Macro Lenses, designed to meet the rigorous demands of industrial and machine vision applications. These lenses are renowned for their precision, versatility, and robust performance.
Supporting 2/3" sensors, the VS-MC024 series offers both fixed and variable magnification options. With focal lengths ranging from 4.1 mm to 5.1 mm and working distances between 221.0 mm and 105.9 mm, these lenses provide exceptional flexibility. The fixed magnification models range from 0.1x to 2.0x, while the variable magnification models range from 0.24x to 1.0x.
These lenses are ideal for applications requiring high-resolution imaging and precision, such as automated optical inspection, quality control, and industrial robotics. Their robust C-mount design ensures compatibility with a wide range of cameras and imaging systems, making them a versatile choice for diverse industrial environments.
Aegis Electronic Group Inc. offers comprehensive support and expertise to help you select the right lens for your specific needs, ensuring optimal performance and efficiency in your operations. Enhance your machine vision capabilities with the precision and reliability of VS Technology's VS-MC024 macro lenses.
Features:
- Fixed and variable magnification options
- Supports 2/3" sensors
- Focal length: 4.1-5.1 mm
- Working distance: 221.0-105.9 mm
- Magnification range: 0.1x to 2.0x (fixed), 0.24x to 1.0x (variable)
- Robust C-mount design
Applications:
- Automated optical inspection
- Quality control
- Industrial robotics
- High-resolution imaging
- Precision measurement
| Optical Mag. Range | x 0.24 ～ x 0.6 | ||
| Optical Mag. | x0.24 x0.4 x0.6 | ||
| FOV (V x H) | 2/3" - 29.6 x 35.0 mm 17.8 x 21.0 mm 11.8 x 14.0 mm 1/2" - 20.0 x 26.7 mm 12.0 x 16.0 mm 8.0 x 10.7 mm 1/3" - 15.0 x 20.0 mm 9.0 x 12.0 mm 6.0 x 8.0 mm | ||
| WD | 221.0 mm 144.3 mm 105.9 mm | ||
| O/I (Object & Imager distance) | 287.8 mm 218.5 mm 189.3 mm | ||
| Working F/# *Value at Iris open | 4.1 4.6 5.1 | ||
| DOF at PCoC Ø 0.04mm | 5.7 mm 2.3 mm 1.1 mm | ||
| TV Distortion (2/3") | 0.01% | ||
| Relative Illuminance (Y=5.5) | 80 % | ||
| Operation | Manual | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 52 g | ||
| Dimension | Ø 32 (max.) x L = 49.3 (X0.24) ～ 65.9 (X0.6) mm | ||
