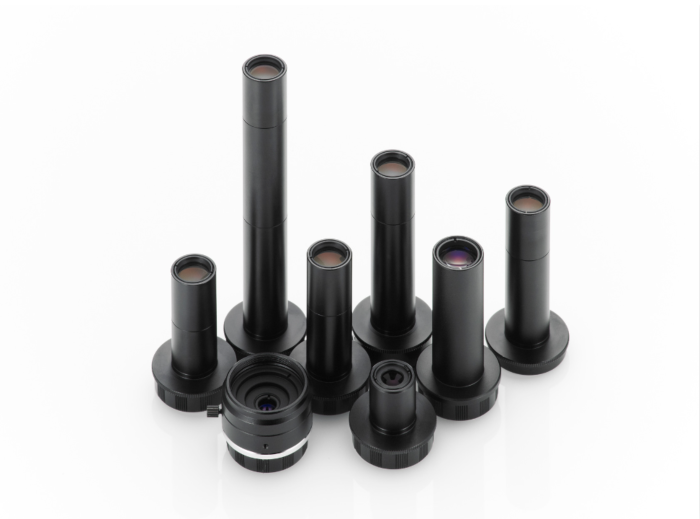

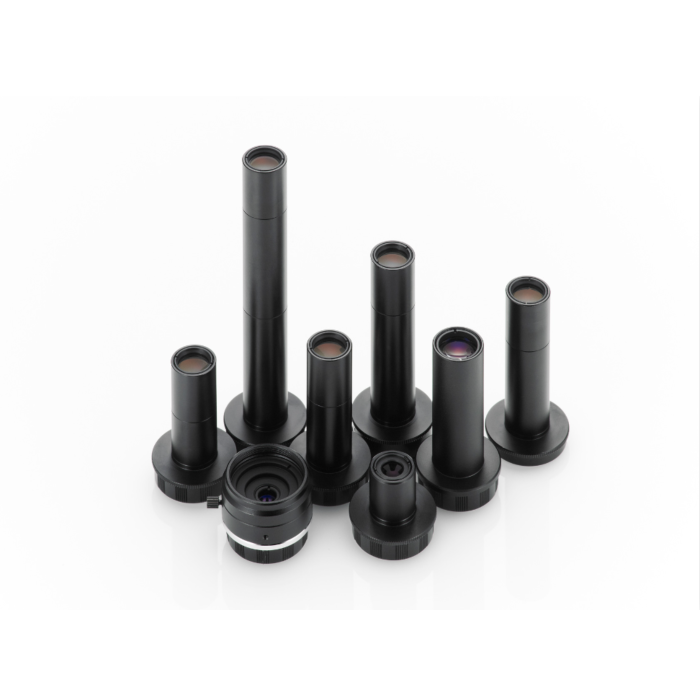

VS Technology VS-MC01-330 Fixed & Variable Magnification Macro Lens
Precision Optics for Industrial Vision: VS Technology VS-MC01-330 Lens
Delve into the world of industrial imaging with the VS Technology VS-MC01-330 Fixed & Variable Magnification Macro Lens from Aegis Electronic Group. Engineered with 2/3" support, this lens boasts versatility with 15 fixed magnification models (ranging from 0.1x to 2.0x Φ16) and 2 variable magnification models (0.24x to 1.0x). Its robust connections ensure seamless integration into diverse machine vision setups.
This lens is a pinnacle of precision optics, delivering high-resolution clarity for industrial and machine vision applications. Whether inspecting intricate details in manufacturing processes or enabling automation in quality control, the VS-MC01-330 lens excels. The 2/3" support enhances compatibility, offering a wide range of imaging possibilities.
Features:
- Variable and fixed magnification options
- 2/3" support for versatile applications
- High-resolution optics for clarity
- Robust connections for seamless integration
Applications:
- Industrial inspection
- Quality control automation
- Manufacturing process analysis
- Machine vision setups
| Focal Length | 30mm | ||
| Optical Mag. | x 0.1 ± 5 % | ||
| FOV (V x H) | 2/3" - 71.0 x 84.0 1/2" - 48.0 x 64.0 1/3" - 36.0 x 48.0 |
||
| WD | 325.5 mm ± 16 | ||
| O/I (Object & Imager distance) | 364.5 mm | ||
| Working F/# *Value at Iris open | 4.4 | ||
| NA | 0.011 | ||
| DOF at PCoC Ø 0.04mm | 35.2 mm | ||
| TV Distortion (2/3") | 0.01% | ||
| Relative Illuminance (Y=5.5) | 80 % | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 14 g | ||
| Dimension | Ø 30 (max.) x L = 21.5 mm | ||
