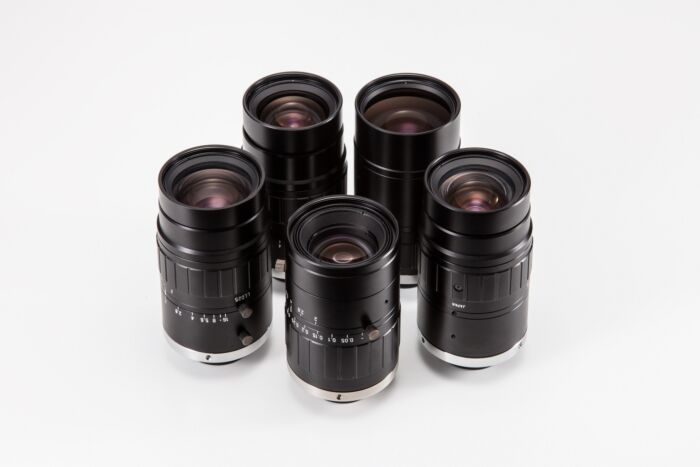

VS Technology VS-LLD18 4/3” Support Distortionless Macro Lens
Unlock Precision and Versatility with VS-LLD18 4/3" Macro Lens
Dive into the world of industrial imaging perfection with the VS-LLD18 4/3" Macro Lens by VS Technology, exclusively offered by Aegis Electronic Group. This lens stands out with its distortionless design, ensuring unparalleled image clarity in machine vision applications. With support for 4/3" sensors and a versatile focal range from f10mm to f50mm across nine models, it caters to diverse imaging needs.
The floating system incorporated in this lens elevates its performance, maintaining exceptional quality at any magnification level. Optimized for macro applications with a short working distance, it opens up new possibilities in capturing intricate details with precision. The robust C-Mount ensures seamless integration into various industrial camera setups.
Features:
- Distortionless design
- 4/3" sensor support
- Versatile f10mm - f50mm range
- Floating system for high performance
- Short working distance for macro applications
- C-Mount compatibility
Applications:
- Industrial Inspection
- Quality Control
- Robotics Vision Systems
- Electronics Manufacturing
- Medical Imaging
- Automated Measurement
- Semiconductor Inspection
- 3D Imaging
- Material Analysis
- Precision Engineering
| Focal Length | 18mm | ||
| Maximum Aperture Ratio | 1: 2.0 | ||
| Optical Mag. Range | 0.05x ~ 0.25x | ||
| Optical Mag. | x 0.05 | x 0.15 | x 0.25 |
| FOV (V x H) | 4/3" - 272.0 x 362.0 | 90.7 x 120.7 | 54.4 x 72.4 1" - 225.2 x 225.2 | 75.1 x 75.1 | 45.0 x 45.0 2/3" - 142.0 x 168.0 | 47.3 x 56.0 | 28.4 x 33.6 | ||
| WD | 347.0 mm | 102.2 mm | 53.8 mm |
| O/I (Object & Imager distance) | 448.3 mm | 202.5 mm | 153.6 mm |
| Working F/# *Value at Iris open | 2.1, 2.2, 2.3 | ||
| TV Distortion (4/3") | -0.28% | -0.40% | -0.49% |
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 4/3" | ||
| Filter Thread | M 43 P= 0.75 | ||
| Weight (approx.) | 320 g | ||
| Dimension | Ø 50.5 (max.) x L = 83.8 (x0.05) ~ 82.3 (x0.25) mm | ||
