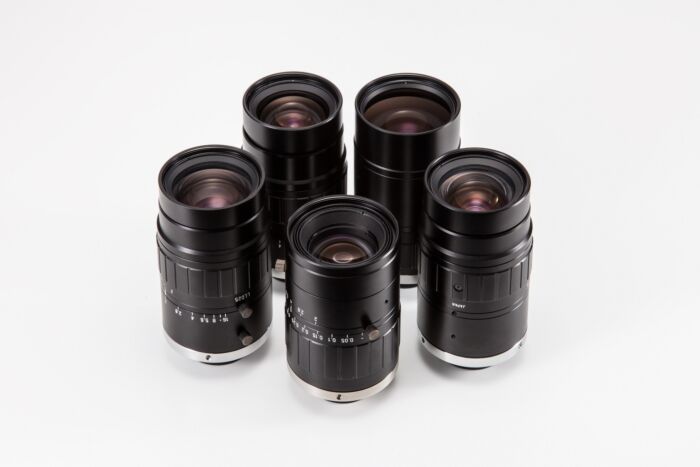

VS Technology VS-LLD12.5 4/3” Support Distortionless Macro Lens
Revolutionizing Imaging with VS-LLD12.5 Distortionless Macro Lens
Delve into unparalleled imaging precision with the VS-LLD12.5 Distortionless Macro Lens by VS Technology. Designed for 4/3" support, this lens series spans focal lengths from f10mm to f50mm, offering a range of 9 models to meet diverse industrial needs. The distortionless design, coupled with a floating system, ensures exceptional performance across various magnifications.
The VS-LLD12.5 lens is optimized for macro applications, excelling in scenarios demanding a short working distance. Its C-Mount compatibility enhances versatility, providing seamless integration with a wide array of industrial cameras. The floating system elevates performance consistency, making it an ideal choice for precision-focused machine vision applications.
Features:
- Distortionless design
- Floating system for consistent performance
- 4/3" support
- Focal lengths ranging from f10mm to f50mm
- Optimized for macro applications
- C-Mount compatibility
Applications:
- Industrial Automation
- Machine Vision Systems
- Precision Imaging
- Versatile Imaging Solutions
- Vision Inspection Systems
| Focal Length | 12.5mm | ||
| Maximum Aperture Ratio | 1: 2.4 | ||
| Optical Mag. Range | 0.05x ~ 0.2x | ||
| Optical Mag. | x 0.05 | x 0.1 | x 0.2 |
| FOV (V x H) | 4/3" - 272.0 x 362.0 | 136.0 x 181.0 | 68.0 x 90.5 1" - 225.2 x 225.2 | 112.6 x 112.6 | 56.3 x 56.3 2/3" - 142.0 x 168.0 | 71.0 x 84.0 | 35.5 x 42.0 |
||
| WD | 232.0 mm | 104.3 mm | 40.9 mm |
| O/I (Object & Imager distance) | 335.6 mm | 207.2 mm | 142.7 mm |
| Working F/# *Value at Iris open | 2.5, 2.6, 2.7 | ||
| TV Distortion (4/3") | 0.33% | 0.05% | -0.40% |
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 4/3" | ||
| Weight (approx.) | 380 g | ||
| Dimension | Ø 65 (max.) x L = 86.1 (x0.05) ~ 84.3 (x0.2) mm | ||
