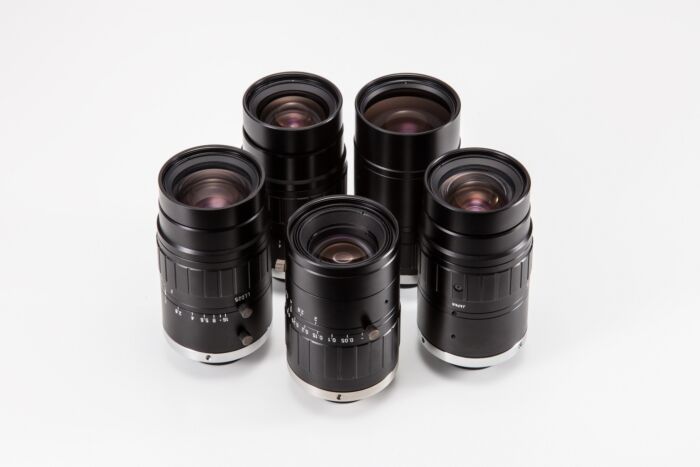

VS Technology VS-LLD10 4/3” Support Distortionless Macro Lens
Precision Redefined: Unveiling the VS-LLD10 4/3” Distortionless Macro Lens
Immerse your industrial and machine vision applications in unrivaled precision with the VS-LLD10 4/3” Support Distortionless Macro Lens by VS Technology. This lens, with its versatile f10mm to f50mm range, comprises 9 models designed for excellence in macro imaging. The distortionless design ensures impeccable clarity, while the floating system enhances performance across various magnifications.
Crafted with a C-Mount, the VS-LLD10 seamlessly integrates with industrial cameras, offering optimal connectivity for precision imaging. Its short working distance is optimized for macro applications, providing unparalleled detail in close-up scenarios. The lens's floating system adapts to different magnifications, ensuring consistent high performance in diverse industrial settings.
Features:
- Distortionless design for impeccable clarity
- C-Mount connectivity for seamless integration
- Versatile f10mm - f50mm range with 9 models
- Floating system for high performance at any magnification
- Short working distance optimized for macro applications
Applications:
- Industrial Imaging
- Machine Vision
- Precision Inspection
- Automation Systems
- Robotics
- Quality Control
- Semiconductor Manufacturing
- Medical Imaging
- 3D Measurement
- Scientific Research
| Focal Length | 10mm | ||
| Maximum Aperture Ratio | 1: 2.8 | ||
| Optical Mag. Range | 0.05x ~ 0.15x | ||
| Optical Mag. | x 0.05 | x 0.1 | x 0.15 |
| FOV (V x H) | 4/3" - 272.0 x 362.0 | 136.0 x 181.0 | 90.7 x 120.7 1" - 225.2 x 225.2 | 112.6 x 112.6 | 75.1 x 75.1 2/3" - 142.0 x 168.0 | 71.0 x 84.0 | 47.3 x 56.0 |
||
| WD | 189.6 mm | 87.2 mm | 53.1 mm |
| O/I (Object & Imager distance) | 295.2 mm | 190.1 mm | 153.7 mm |
| Working F/# *Value at Iris open | 2.9, 3.0, 3.1 | ||
| TV Distortion (4/3") | -0.33% | -0.68% | -0.92% |
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 4/3" | ||
| Weight (approx.) | 450 g | ||
| Dimension | Ø 74.5 (max.) x L = 88.1 (x0.05) ~ 83.1 (x0.15) mm | ||
