VS Technology VS-LDV16 1.1" Support, Distortionless Macro Lens
Exceptional Precision and Versatility: VS-LDV16 1.1" Support, Distortionless Macro Lens

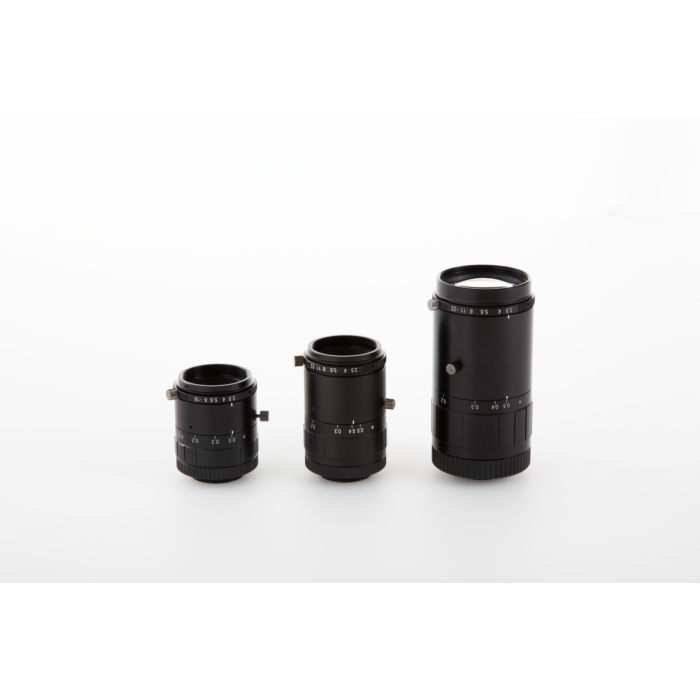

Aegis Electronic Group proudly presents the VS Technology VS-LDV16 lens series, a cutting-edge solution tailored for industrial and machine vision applications. Specifically designed to support 1.1" sensors, these lenses offer unparalleled precision and versatility. With four models available - f25mm, f35mm, f50mm, and f75mm - users can choose the ideal focal length for their unique requirements.
Crafted as distortionless macro lenses, the VS-LDV16 series excels in short working distances, providing crisp and clear imaging for intricate applications. The C-Mount design ensures compatibility with a range of industrial cameras, enhancing flexibility in system integration. These lenses boast high-resolution capabilities, delivering detailed images crucial for accurate machine vision analysis.
Features:
- 1.1" sensor support
- Distortionless macro imaging
- Four models: f25mm, f35mm, f50mm, f75mm
- C-Mount compatibility
- High-resolution optics for detailed imaging
Applications:
| Focal Length | 16mm | ||
| Maximum Aperture Ratio | 1: 3.5 | ||
| Optical Mag. Range | 0.03x ~ 0.14x | ||
| Optical Mag. | x 0.03 | x 0.07 | x 0.14 |
| FOV (V x H) | 1.1" - 343.3 x 470.0 | 147.1 x 201.4 | 73.6 x 100.7 1" - 375.3 x 375.3 | 160.9 x 160.9 | 80.4 x 80.4 2/3" - 236.7 x 280.0 | 101.4 x 120.0 | 50.7 x 60.0 |
||
| WD | 500.0 mm | 200.0 mm | 100.0 mm |
| O/I (Object & Imager distance) | 583.0 mm | 283.7 mm | 184.7 mm |
| Working F/# *Value at Iris open | 3.5, 3.6, 3.6 | ||
| DOF at PCoC Ø 0.04mm | 311.1 mm | 58.8 mm | 14.7 mm |
| TV Distortion (1.1") | -0.22% | -0.28% | -0.36% |
| Relative Illuminance (Y=8.8) | 81% | 81% | 82% |
| Operation of Iris & Zoom | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 1.1" | ||
| Filter Thread | M 35.5 P= 0.5 | ||
| Weight (approx.) | 190 g | ||
| Dimension | Ø 39 (max.) x L = 65.5 (x0.03) ~ 67.2 (x0.14) mm | ||
