VS Technology VS-LDA50 2/3" Support, Distortionless Macro Lens
Precision Imaging with VS-LDA50 2/3" Support, Distortionless Macro Lens
Immerse yourself in the world of precision imaging with the VS-LDA50 Distortionless Macro Lens from VS Technology, exclusively offered by Aegis Electronic Group. Engineered for excellence, this lens boasts a versatile design accommodating a wide range of magnifications, working distances, and depths of field. With support for 1/2" to 2/3" sensors, the lens delivers distortionless images, making it an ideal choice for macro applications with short working distances.

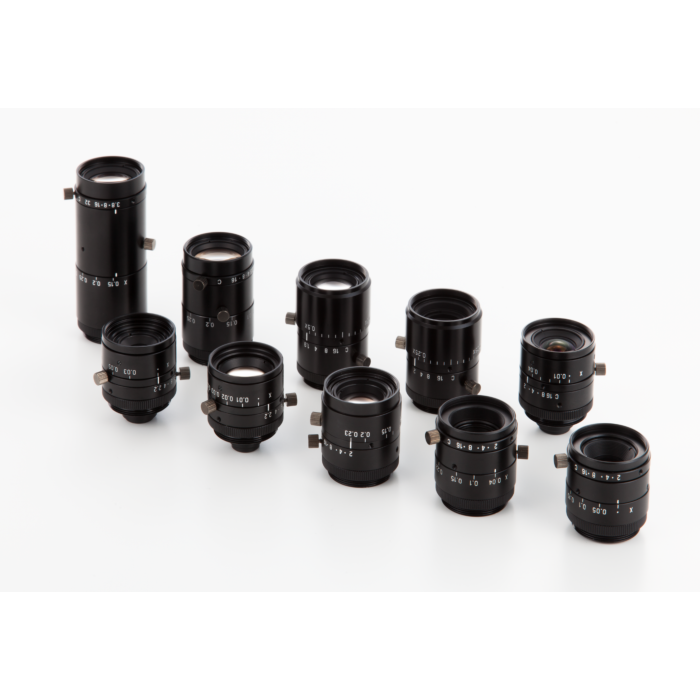

The VS-LDA50 series comprises 10 models with focal lengths ranging from f4mm to f75mm, ensuring adaptability to various imaging scenarios. Its C-Mount compatibility enhances its versatility, making it compatible with a range of industrial cameras. This lens is optimized for macro imaging, offering unparalleled clarity and precision.
The VS-LDA50 lens connects seamlessly to C-Mount cameras, providing a reliable and stable imaging solution. Its distortionless design ensures accurate image reproduction, making it a valuable asset in industrial and machine vision applications. Whether inspecting small components, conducting quality control, or enhancing automation processes, the VS-LDA50 lens delivers exceptional results, ensuring your imaging needs are met with unparalleled precision.
Features:
- Versatile magnification (f4mm - f75mm)
- Distortionless design for accurate image reproduction
- Supports 1/2" to 2/3" sensors
- Short working distance for optimized macro applications
- C-Mount compatibility for easy integration
Applications:
- Industrial inspection
- Quality control
- Automation processes
- Precision manufacturing
- Machine vision applications
| Focal Length | 50mm | |||
| Maximum Aperture Ratio | 1: 2.5 | |||
| Optical Mag. Range | 0.10x ~ 0.25x | |||
| Optical Mag. | x 0.10 | x 0.15 | x 0.20 | x 0.25 |
| FOV (V x H) | 2/3" - 71.0 x 84.0 | 47.3 x 56.0 | 35.5 x 42.0 | 28.4 x 33.6 1/2" - 48.0 x 64.0 | 32.0 x 42.7 | 24.0 x 32.0 | 19.2 x 25.6 1/3" - 36.0 x 48.0 | 24.0 x 32.0 | 18.0 x 24.0 | 14.4 x 19.2 |
|||
| WD | 512.4 mm | 350.8 mm | 270.0 mm | 221.5 mm |
| O/I (Object & Imager distance) | 574.9 mm | 415.7 mm | 337.4 mm | 291.3 mm |
| Working F/# *Value at Iris open | 2.7 | 2.8 | 2.9 | 3.1 |
| TV Distortion (1/2") | 0.03% | 0.02% | 0.01% | 0.00% |
| Operation of Iris & Zoom | Manual (Lock Screw M2) | |||
| Wavelength | Visible | |||
| Mount | C-Mount | |||
| Flange Back | 17.526 mm | |||
| Sensor Size (max.) | 2/3" | |||
| Filter Thread | M 27 P= 0.5 | |||
| Weight (approx.) | 76 g | |||
| Dimension | Ø 30.5 (max.) x L = 45.0 (x0.10) ~ 52.3 (x0.25) mm | |||
