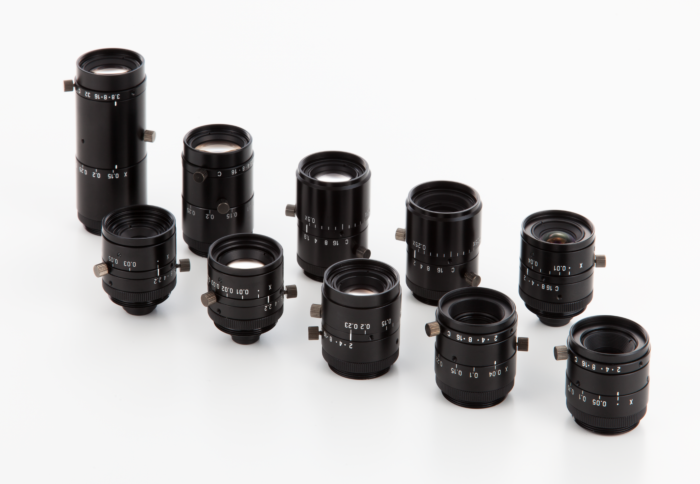

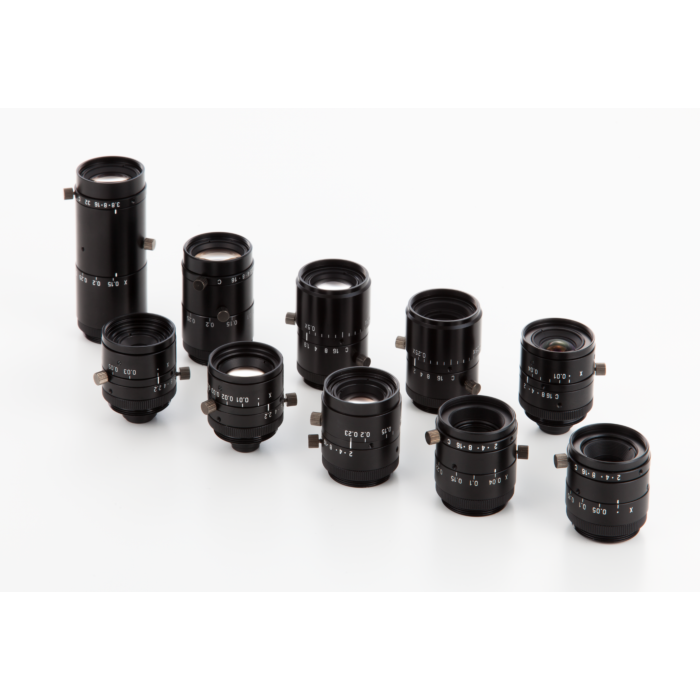

VS Technology VS-LDA4 2/3" Support, Distortionless Macro Lens
Unleash Precision with VS-LDA4 2/3" Support, Distortionless Macro Lens
Immerse yourself in the world of unparalleled imaging precision with the VS-LDA4 Distortionless Macro Lens by VS Technology. This series comprises 10 models with focal lengths ranging from f4mm to f75mm, providing a versatile design catering to a wide spectrum of magnification, working distance (WD), and depth of field (DOF) requirements.
Tailored for 1/2" to 2/3" sensor support, these lenses boast a distortionless design, ensuring clarity and accuracy in every image. Optimized for macro applications and boasting a short working distance, the VS-LDA4 lens series is a beacon of excellence in industrial imaging. With a reliable C-Mount, these lenses seamlessly integrate into various industrial setups, offering unmatched precision for machine vision applications.
Features:
- 10 models: f4mm to f75mm
- Versatile design for magnification, WD, and DOF
- 1/2" to 2/3" sensor support
- Distortionless imaging
- Optimized for macro applications
- C-Mount compatibility
Applications:
| Focal Length | 4mm | |||
| Maximum Aperture Ratio | 1: 2.0 | |||
| Optical Mag. Range | (∞) 0.01x - 0.04x | |||
| Optical Mag. | x 0.01 | x 0.01 | x 0.01 | x 0.01 |
| FOV (V x H) | 2/3" - 1/2" - 480.0 x 640.0 | 300.0 x 400.0 | 160.0 x 213.3 | 120.0 x 160.0 1/3" - 360.0 x 480.0 | 225.0 x 300.0 | 120.0 x 1600 | 90.0 x 120.0 |
|||
| WD | 403.2 mm | 247.9 mm | 127.2 mm | 92.7 mm |
| O/I (Object & Imager distance) | 449.7 mm | 294.5 mm | 173.9 mm | 139.4 mm |
| Working F/# *Value at Iris open | 2.1 | 2.1 | 2.1 | 2.1 |
| TV Distortion (1/2") | -0.23 % | -0.23% | -0.24% | -0.24% |
| Operation of Iris & Zoom | Manual (Lock Screw M2) | |||
| Wavelength | Visible | |||
| Mount | C-Mount | |||
| Flange Back | 17.526 mm | |||
| Sensor Size (max.) | 1/2" | |||
| Filter Thread | M 27 P= 0.5 | |||
| Weight (approx.) | 49 g | |||
| Dimension | Ø 29.5 (max.) x L = 29.0 (x0.01) ~ 29.2 (x0.04) mm | |||
