VS Technology VS-LDA35 2/3" Support, Distortionless Macro Lens
Unlock Precision with VS-LDA35 2/3" Support, Distortionless Macro Lens
Enhance your industrial imaging capabilities with the VS-LDA35 lens from VS Technology, available through Aegis Electronic Group. With 2/3" sensor support and a distortionless design, this lens offers unparalleled precision for a wide range of magnification, working distances, and depth of field requirements.

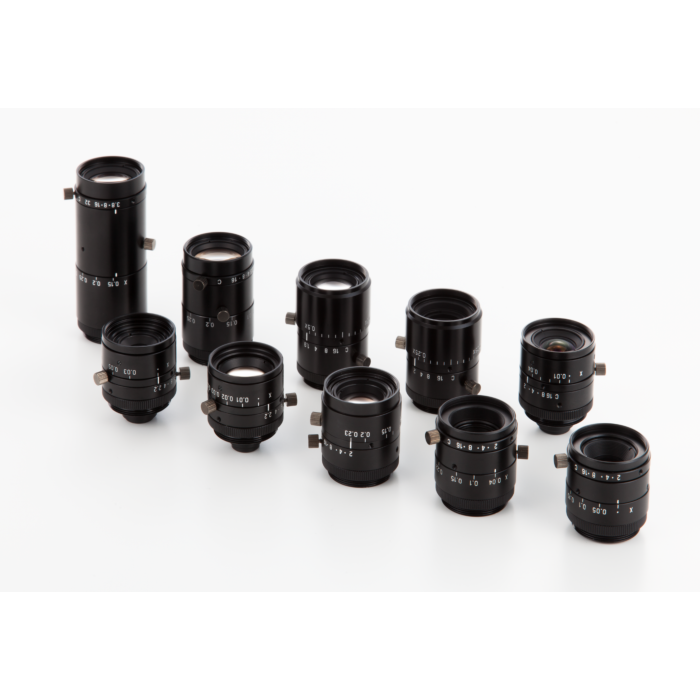

The versatile design of 10 models, ranging from f4mm to f75mm, ensures adaptability to various macro applications with short working distances. The C-Mount compatibility enhances ease of integration into your existing machine vision systems.
Connections are optimized for seamless communication with 1/2" to 2/3" sensors, providing clear and detailed imaging. This lens is specifically engineered for macro applications, making it an ideal choice for industries demanding precision at close ranges.
Features:
- 2/3" sensor support
- Distortionless design
- Versatile magnification (f4mm - f75mm)
- C-Mount compatibility
- Optimized for macro applications
- Wide depth of field options
Applications:
| Focal Length | 35mm | |||
| Maximum Aperture Ratio | 1: 1.9 | |||
| Optical Mag. Range | 0.03x - 0.5x | |||
| Optical Mag. | x 0.30 | x 0.35 | x 0.40 | x 0.50 |
| FOV (V x H) | 2/3" - 23.7 x 28.0 | 20.3 x 24.0 | 17.8 x 21.0 | 14.2 x 16.8 1/2" - 16.0 x 21.3 | 13.7 x 18.3 | 12.0 x 16.0 | 9.6 x 12.8 1/3" - 12.0 x 16.0 | 10.3 x 13.7 | 9.0 x 12.0 | 7.2 x 9.6 |
|||
| WD | 142.9 mm | 126.2 mm | 113.7 mm | 96.1 mm |
| O/I (Object & Imager distance) | 196.9 mm | 182.0 mm | 171.2 mm | 157.1 mm |
| Working F/# *Value at Iris open | 2.5 | 2.6 | 2.7 | 2.9 |
| DOF at PCoC Ø0.04mm | 2.2 mm | 1.7 mm | 1.4 mm | 0.9 mm |
| TV Distortion (1/2") | 0.02% | 0.01% | 0.01% | 0.00% |
| Operation of Iris & Zoom | Manual (Lock Screw M2) | |||
| Wavelength | Visible | |||
| Mount | C-Mount | |||
| Flange Back | 17.526 mm | |||
| Sensor Size (max.) | 2/3" | |||
| Filter Thread | M 27 P= 0.5 | |||
| Weight (approx.) | 58 g | |||
| Dimension | Ø 30.5 (max.) x L = 36.5 (x0.30) ~ 43.5 (x0.50) mm | |||
