VS Technology VS-LDA30 2/3" Support, Distortionless Macro Lens
SKU
VS-LDA30
Quick Overview
Unleash the power of precision imaging with Aegis Electronic Group's VS-LDA30 2/3" Macro Lens. Ideal for industrial and machine vision applications, this distortionless lens series ensures clarity in diverse scenarios. Elevate your imaging experience – explore the VS-LDA30 today.
Unlock Precision with VS-LDA30 2/3" Macro Lens

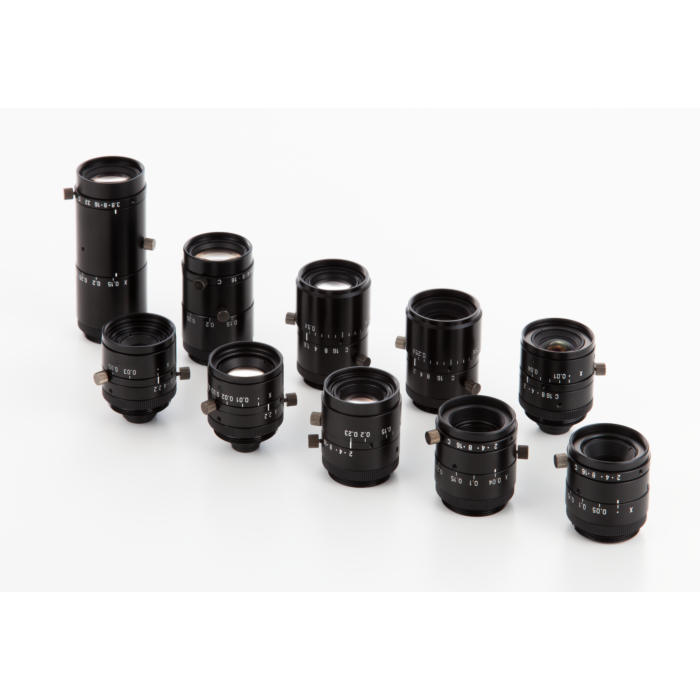

Discover unparalleled clarity in industrial imaging with the VS Technology VS-LDA30 2/3" Macro Lens from Aegis Electronic Group. Boasting a versatile design encompassing f4mm to f75mm with 10 distinct models, this lens series caters to a wide range of magnification, working distance (WD), and depth of field (DOF) requirements. Its 2/3" sensor support ensures compatibility with leading industrial cameras.
The distortionless design of these C-Mount lenses makes them optimally suited for macro applications, particularly those demanding a short working distance. Engineered with precision, they deliver distortion-free imaging, offering a clear and accurate view in industrial and machine vision setups.
Features:
- Distortionless design
- Versatile magnification (f4mm - f75mm)
- 10 different models available
- 2/3" sensor support
- Optimized for macro applications
- C-Mount compatibility
Applications:
- Industrial automation
- Quality control inspections
- Robotics vision systems
- Precision manufacturing
- Object recognition
- Assembly line monitoring
| Focal Length | 30mm | |||
| Maximum Aperture Ratio | 1: 2.0 | |||
| Optical Mag. Range | 0.08x - 0.23x | |||
| Optical Mag. | x 0.08 | x 0.10 | x 0.20 | x 0.23 |
| FOV (V x H) | 2/3" - 88.8 x 105.0 | 71.0 x 84.0 | 35.5 x 42.0 | 30.9 x 36.5 1/2" - 60.0 x 80.0 | 48.0 x 64.0 | 24.0 x 32.0 | 20.9 x 27.8 1/3" - 45.0 x 60.0 | 36.0 x 48.0 | 18.0 x 24.0 | 15.7 x 20.9 | |||
| WD | 381.6 mm | 307.2 mm | 160.2 mm | 141.5 mm |
| O/I (Object & Imager distance) | 431.1 mm | 356.7 mm | 209.7 mm | 191.0 mm |
| Working F/# *Value at Iris open | 2.4 | 2.4 | 2.7 | 2.8 |
| TV Distortion (1/2") | 0.08% | 0.05% | -0.04% | -0.06% |
| Operation of Iris & Zoom | Manual (Lock Screw M2) | |||
| Wavelength | Visible | |||
| Mount | C-Mount | |||
| Flange Back | 17.526 mm | |||
| Sensor Size (max.) | 2/3" | |||
| Filter Thread | M 27 P= 0.5 | |||
| Weight (approx.) | 47 g | |||
| Dimension | Ø 30.5 (max.) x L = 32 | |||
