VS Technology VS-LDA10 2/3" Support, Distortionless Macro Lens
Discover the VS-LDA10 2/3" Support, Distortionless Macro Lens Advantage

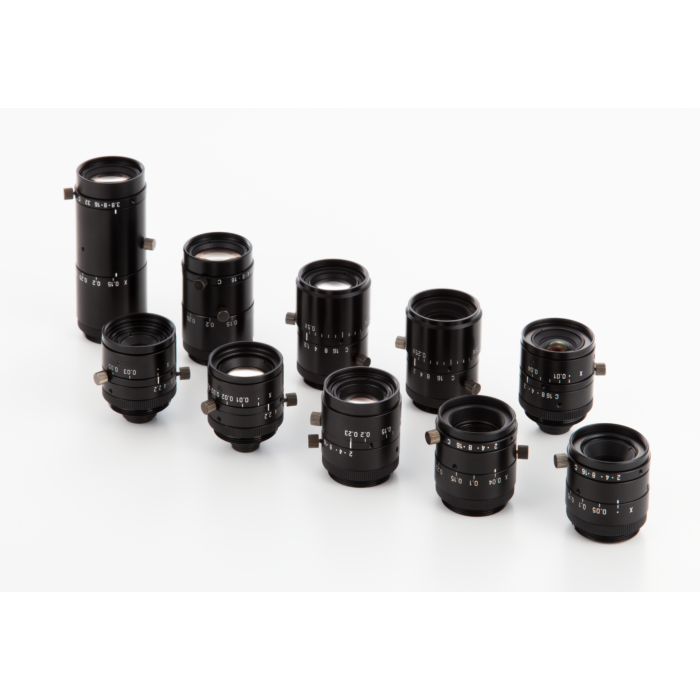

The VS-LDA10, part of VS Technology's renowned lens series, offers unparalleled precision in industrial imaging. With support for 2/3" sensors and a versatile design spanning f4mm to f75mm across 10 models, this lens is optimized for distortionless macro applications with a short working distance. The C-Mount compatibility ensures seamless integration with various camera systems.
The lens's distortionless design guarantees optical excellence, while its wide depth of field accommodates a broad range of magnifications. Whether you're engaged in quality control, robotics, or industrial automation, the VS-LDA10 delivers imaging solutions tailored to your needs. Its adaptability to different magnifications, working distances, and depths of field makes it an indispensable tool for machine vision applications.
Features:
- 2/3" sensor support
- Versatile magnification (f4mm to f75mm)
- Distortionless design
- Short working distance
- C-Mount compatibility
Applications:
- Quality control
- Robotics
- Industrial automation
- Machine vision systems
| Focal Length | 10mm | |||
| Maximum Aperture Ratio | 1: 2.2 | |||
| Optical Mag. Range | (∞) 0.03x - 0.10x | |||
| Optical Mag. | x 0.03 | x 0.05 | x 0.08 | x 0.10 |
| FOV (V x H) | 2/3" - 1/2" - 160.0 x 213.3 | 96.0 x 128.0 | 60.0 x 80.0 | 48.0 x 64.0 1/3" - 120.0 x 160.0 | 72.0 x 96.0 | 45.0 x 60.0 | 36.0 x 48.0 |
|||
| WD | 330.2 mm | 193.5 mm | 116.7 mm | 91.0 mm |
| O/I (Object & Imager distance) | 375.0 mm | 238.5 mm | 162.0 mm | 136.5 mm |
| Working F/# *Value at Iris open | 2.3 | 2.3 | 2.4 | 2.4 |
| TV Distortion (1/2") | 0.03% | 0.01% | -0.02% | -0.04% |
| Operation of Iris & Zoom | Manual (Lock Screw M2) | |||
| Wavelength | Visible | |||
| Mount | C-Mount | |||
| Flange Back | 17.526 mm | |||
| Sensor Size (max.) | 1/2" | |||
| Filter Thread | M 27 P= 0.5 | |||
| Weight (approx.) | 42 g | |||
| Dimension | Ø 29.5 (max.) x L = 27.3 (x0.03) ~ 28.0 (x0.10) mm | |||
