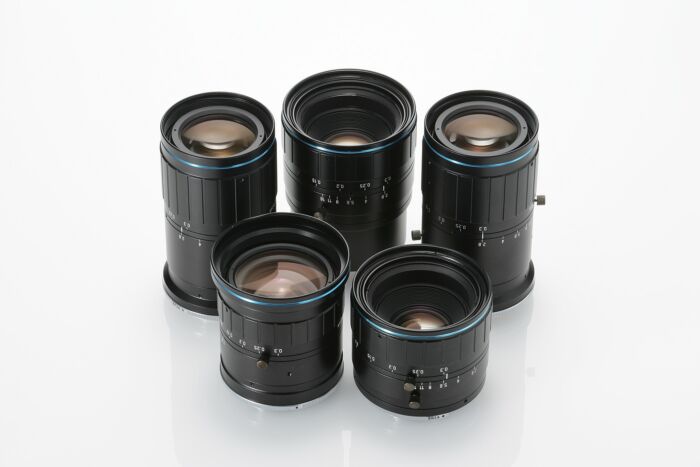

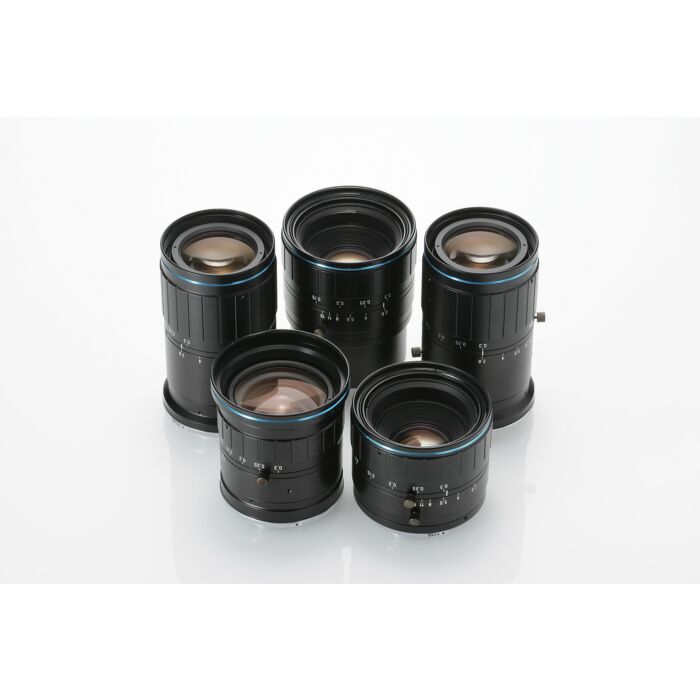

VS Technology VS-L8540/F Line Scan Macro Lenses
VS Technology VS-L8540/F Line Scan Macro Lenses: Precision Optics for Industrial Imaging
Aegis Electronic Group Inc. proudly presents the VS Technology VS-L8540/F Line Scan Macro Lenses, crafted for demanding industrial and machine vision applications. These lenses epitomize precision and clarity, featuring a focal length range from 85mm, supporting sensors from 29mm to 45mm, and offering magnification from 0.1x to 0.35x. Designed with a working F/# range of 4.4 to 5.4, they ensure distortion-free imaging crucial for quality inspection and high-resolution imaging tasks.
Ideal for integration into automated systems, these lenses are compatible with F-mount and offer versatility through optional mount adaptors including M42, TFL, and M58. The VS-L8540/F series represents the pinnacle of optical performance in industrial optics, facilitating seamless image processing and precise analysis across various manufacturing environments. Whether inspecting components for defects, enhancing quality control processes, or optimizing production efficiency, these lenses deliver unmatched clarity and reliability.
Features:
- Focal length range: 85mm
- Sensor support: 29mm to 45mm
- Magnification: 0.1x to 0.35x
- Distortion-free imaging
- Compatible with F-mount, M42, TFL, M58 adaptors
Applications:
- Quality inspection
- Manufacturing automation
- Precision imaging
- Industrial machine vision
| Focal Length (f) | 85 mm | ||
| Optical Mag. Range | x 0.1 ～ x 0.35 | ||
| Optical Mag. | x0.1 x 0.2 x 0.3 x 0.35 | ||
| WD | 864.2 mm 452.5 mm 320.8 mm 285.0 mm | ||
| O/I (Object & Imager distance) | 1003.7 mm 592.0 mm 460.3 mm 424.5 mm | ||
| Aperture | F 4 ～ 16 | ||
| Working F/# *Value at Iris open | 4.4 4.8 5.2 5.4 | ||
| DOF at PCoC φ0.04mm | 35.2 mm 9.6 mm 4.6 mm 3.5 mm | ||
| Optical Distortion (Y=43.2) | 0.00 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | F-Mount | ||
| Flange Back | 46.5 mm | ||
| Image Circle | φ 50 mm | ||
| Filter Thread | M 52 P= 0.75 | ||
| Weight (approx.) | 350 g | ||
| Dimension | Ø 59 (max.) x L = 93 mm | ||
