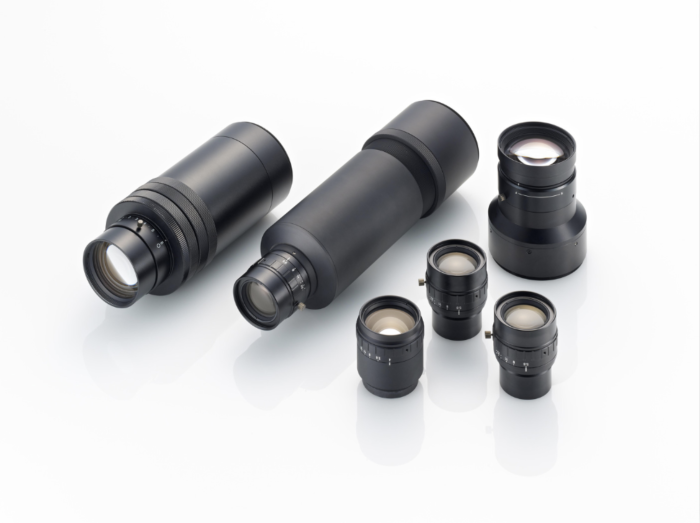

VS Technology VS-L8540-06/V 8K, 12K & 16K Line Scan Macro Lenses
Enhance Your Machine Vision with VS Technology Line Scan Macro Lenses
Aegis Electronic Group Inc. presents the VS Technology VS-L8540-06/V line scan macro lenses, a top-tier choice for industrial and machine vision applications. These lenses are engineered specifically for large sensors up to 90mm in length, ensuring they meet the rigorous demands of high-resolution imaging. Available in resolutions of 8K, 12K, and 16K, they offer unparalleled clarity and precision, making them ideal for applications requiring detailed inspection and analysis.
The VS-L(V) series stands out with its integrated vibration resistance, ensuring stable performance even in challenging industrial environments. The lenses feature a versatile V-Mount system compatible with M42, TFL, M58, and other adapters, providing flexibility for various setups. With a focal length of 85mm, a working distance of 187mm, and a magnification of 0.6x, these lenses deliver excellent performance across a wide range of applications.
Customers in industries such as high-speed inspection systems, industrial automation, and quality control will benefit from the high contrast and distortionless imaging capabilities of these lenses. Additionally, their robust construction and high-resolution output make them suitable for medical imaging, PCB inspection, textile inspection, and semiconductor inspection. Enhance your machine vision system's performance with the VS Technology VS-L8540-06/V line scan macro lenses, ensuring precise and reliable results every time.
Features:
- Focal Length: 85mm
- Working Distance: 187mm
- Magnification: 0.6x
- Working F/#: 6.4
- V-Mount (M42, TFL, M58, and more)
- Supports 8K, 12K, and 16K resolution
- Designed for large sensors up to 90mm
- Integrated vibration resistance
- High resolution and high contrast
- Distortionless imaging
- 13 models available
Applications:
- High-speed inspection systems
- Industrial automation
- Quality control in manufacturing
- Medical imaging
- PCB inspection
- Textile inspection
- Semiconductor inspection
| Focal Length (f) | 85 mm | ||
| Optical Mag. | x0.6 | ||
| WD | 187.0 mm ± 6 | ||
| O/I (Object & Imager distance) | 345.2 mm | ||
| Aperture | F 4 ～ 16 | ||
| Working F/# *Value at Iris open | 6.4 | ||
| NA | 0.047 | ||
| DOF at PCoC Ø 0.04mm | 1.4 mm | ||
| Optical Distortion (Y=31) | -0.04% | ||
| Relative Illuminance (Y=5.5) | 77 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | V-Mount | ||
| Flange Back | 121.7 mm | ||
| Image Circle | φ 62 mm | ||
| Filter Thread | M 37.5 P= 0.5 | ||
| Weight (approx.) | 170 g | ||
| Dimension | Ø 45 (max.) x L = 36.5 mm | ||
