VS Technology VS-L8528/M72 8K, 12K & 16K Line Scan Macro Lenses
Exceptional Quality and Versatility with VS Technology VS-L8528/M72 Line Scan Lenses
Aegis Electronic Group Inc. offers the VS Technology VS-L8528/M72 line scan macro lenses, designed for high-performance industrial and machine vision applications. These lenses are engineered to support large sensors up to 90mm, making them ideal for tasks requiring high resolution and precision. With capabilities of 8K, 12K, and 16K, these lenses provide unparalleled image clarity and detail, essential for demanding inspection and quality control processes.

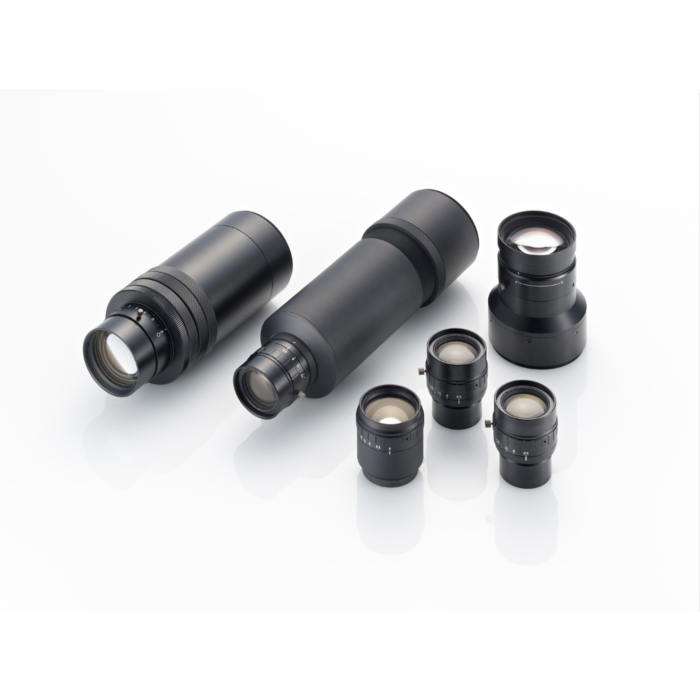

The VS-L(V) series stands out with its integrated vibration resistance, ensuring stable and reliable performance even in challenging environments. The lenses feature a wide working distance range of 1722.9mm to 366.0mm and a magnification range of 0.05x to 0.25x, offering flexibility for various applications. Their distortionless imaging and high contrast make them perfect for tasks that demand accuracy and consistency.
Additionally, the lenses come with a selection of mount adapters, including M42, TFL, and M58, enhancing their versatility and ease of integration into existing systems. Whether for semiconductor inspection, electronics manufacturing, or medical imaging, the VS Technology VS-L8528/M72 lenses deliver exceptional performance and reliability, making them a top choice for professionals in the field.
Features:
- High resolution for 8K, 12K, and 16K imaging
- Supports large sensors up to 90mm
- Integrated vibration resistance
- Wide working distance range (1722.9mm to 366.0mm)
- Magnification range of 0.05x to 0.25x
- Distortionless imaging
- High contrast
- Versatile mount adapters (M42, TFL, M58)
Applications:
- Semiconductor inspection
- Electronics manufacturing
- Medical imaging
- Quality control
- Precision measurement
- Automated inspection systems
- High-speed scanning applications
| Focal Length (f) | 85 mm | ||
| Optical Mag. Range | x 0.05 ～ x 0.25 | ||
| Optical Mag. | x0.05 x0.15 x0.25 | ||
| WD | 1722.9 mm 598.0 mm 366.0 mm | ||
| O/I (Object & Imager distance) | 1859.9 mm 735.0 mm 503.0 mm | ||
| Aperture | F 2.8 ～ 16 | ||
| Working F/# *Value at Iris open | 3.0 3.2 3.5 | ||
| DOF at PCoC Ø 0.04mm | 96.0 mm 11.4 mm 4.5 mm | ||
| Optical Distortion (Y=31) | -0.06% | ||
| Relative Illuminance (Y=5.5) | 70 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | M 72 P=0.75 | ||
| Flange Back | 31.8 mm | ||
| Image Circle | φ 62 mm | ||
| Filter Thread | M 72 P= 0.75 | ||
| Weight (approx.) | 520 g | ||
| Dimension | Ø 75 (max.) x L = 105.2 mm | ||
