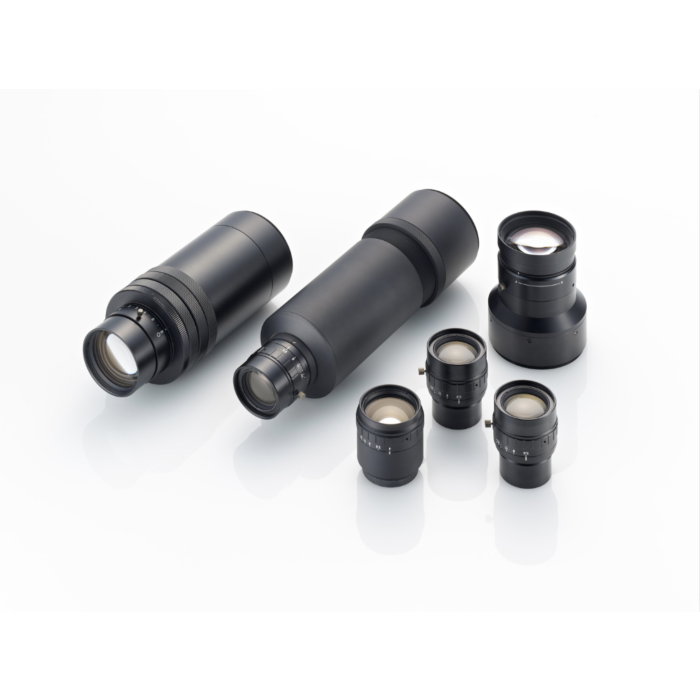

VS Technology VS-L7540/V 8K, 12K & 16K Line Scan Macro Lenses
Discover VS-L7540/V Line Scan Macro Lenses
Aegis Electronic Group proudly presents the VS Technology VS-L7540/V series, expertly crafted for demanding industrial and machine vision applications. These line scan macro lenses are designed to accommodate large sensors of up to 90mm in length, offering unparalleled image quality with high resolution and minimal distortion. Engineered with integrated vibration resistance and available in 8K, 12K, and 16K resolutions, they ensure precise imaging in challenging environments.
The VS-L7540/V lenses feature a versatile V-Mount with additional options like M42, TFL, and M58 adaptors, enhancing compatibility across various setups. Each lens is meticulously crafted to deliver distortion-free images with exceptional contrast, making them ideal for tasks requiring precise inspection and quality control. Whether used in pharmaceuticals, electronics manufacturing, or automotive industries, these lenses excel in capturing fine details and detecting imperfections with clarity.
Features:
- High-resolution imaging up to 16K
- Distortion-free optics
- Integrated vibration resistance
- Wide sensor compatibility (up to 90mm)
- Versatile mount adaptors (V-Mount, M42, TFL, M58)
Applications:
- Quality control in manufacturing
- Surface inspection in electronics
- Defect detection in pharmaceuticals
| Focal Length (f) | 75 mm | ||
| Optical Mag. | x 0.8 x 1.0 x 1.2 | ||
| WD | 132.6 mm 114.0 mm 101.5 mm | ||
| O/I (Object & Imager distance) | 282.7 mm 279.0 mm 281.4 mm | ||
| Aperture | F 4 ～ 22 | ||
| Working F/# *Value at Iris open | 7.7 8.7 9.6 | ||
| NA | 0.052 0.057 0.063 | ||
| DOF at PCoC φ0.04mm | 1.0 mm 0.7 mm 0.5 mm | ||
| Optical Distortion (Y=41) | -0.01 % | ||
| Relative Illuminance (Y=41) | 52 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | V-Mount | ||
| Flange Back | 120.1 mm 135.0 mm 149.9 mm | ||
| Image Circle | φ 82 mm | ||
| Filter Thread | M 34 P= 0.5 | ||
| Weight (approx.) | 134 g | ||
| Dimension | Ø 45 (max.) x L = 30 mm | ||
