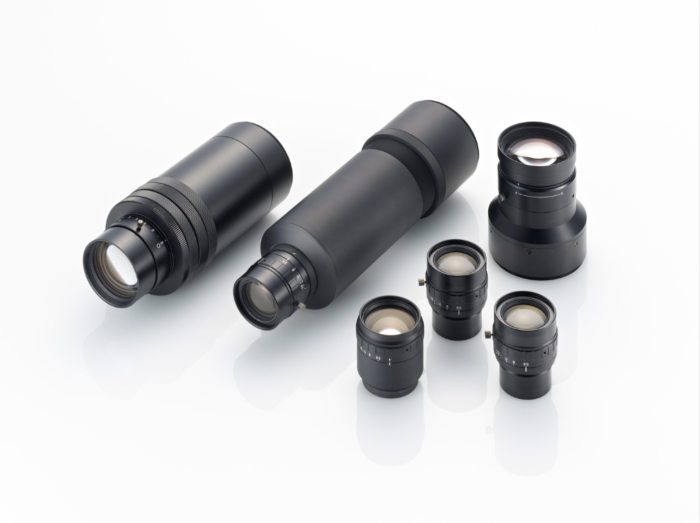

VS Technology VS-L5045FL/M72S 8K, 12K & 16K Line Scan Macro Lenses
Versatile High-Resolution Line Scan Lenses for Industrial and Machine Vision Applications

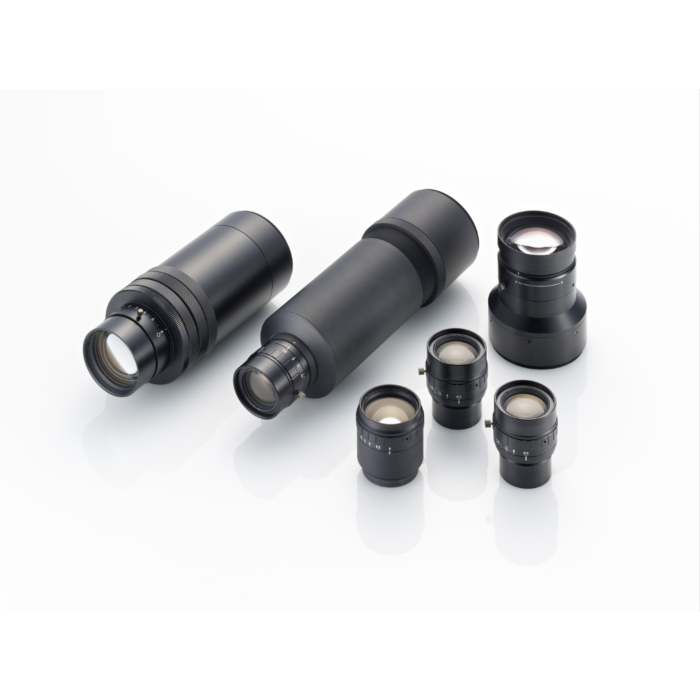

Aegis Electronic Group Inc. proudly offers the VS Technology VS-L5045FL/M72S line scan macro lenses, designed to meet the rigorous demands of modern industrial and machine vision applications. These lenses are engineered to deliver exceptional image quality with high resolution and contrast, suitable for large sensors up to 90mm. The VS-L(V) series supports 8K, 12K, and 16K line scan applications, making them ideal for a wide range of inspection and imaging tasks.
Featuring a focal length of 52.5mm and a working distance ranging from 1763.4mm to 373.7mm, these lenses offer magnifications from 0.03x to 0.15x. The working F/# ranges from 4.7 to 5.3, ensuring optimal performance in various lighting conditions. The integrated vibration resistance enhances stability, reducing image blur caused by mechanical vibrations.
With a variety of mount adapters available, including M72, M42, TFL, and M58, these lenses provide versatility and compatibility with different camera systems. Their distortionless design ensures accurate and reliable image capture, essential for precise measurements and quality control in industrial settings.
Customers can benefit from using these lenses in applications such as automated inspection, surface inspection, and high-resolution imaging, achieving superior performance and productivity.
Features:
- Focal Length: 52.5mm
- Working Distance: 1763.4mm to 373.7mm
- Magnification: 0.03x to 0.15x
- Working F/#: 4.7 to 5.3
- Mount: M72 P=0.75 (with M42, TFL, M58 adapters)
- Vibration resistance
- High resolution and contrast
- Suitable for sensors up to 90mm
- Distortionless design
Applications:
- Automated inspection
- Surface inspection
- High-resolution imaging
- Quality control
- Line scan applications
- Precision measurements
- Manufacturing process monitoring
| Focal Length (f) | 52.5 mm | ||
| Optical Mag. Range | (∞) x 0.03 ～ x 0.15 | ||
| Optical Mag. | x 0.03 x 0.10 x 0.15 | ||
| WD | 1763.4 mm 545.2 mm 373.7 mm | ||
| O/I (Object & Imager distance) | 1884.9 mm 666.7 mm 495.2 mm | ||
| Aperture | F 4.5 ～ 22 | ||
| Working F/# *Value at Iris open | 4.7 5.0 5.3 | ||
| Optical Distortion (Y=37.5) | 0.00% 0.15% 0.22% | ||
| Relative Illuminance (Y=5.5) | 48 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | M72 P=0.75 | ||
| Flange Back | 31.8 mm | ||
| Image Circle | φ 75 mm | ||
| Filter Thread | M 86 P= 1.0 | ||
| Weight (approx.) | 910 g | ||
| Dimension | Ø 90 (max.) x L = 89.7 mm | ||
