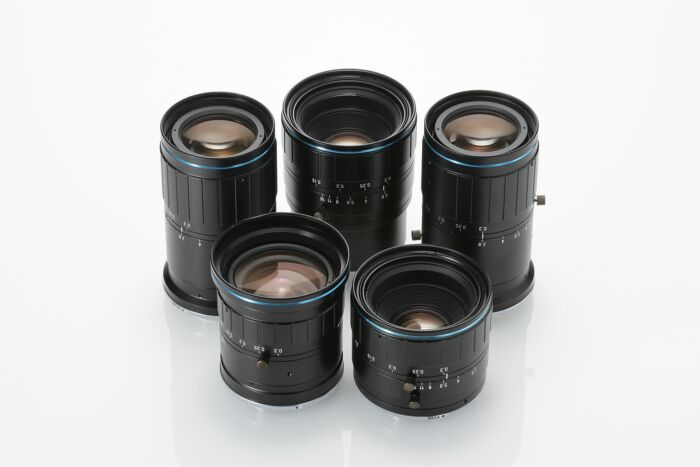

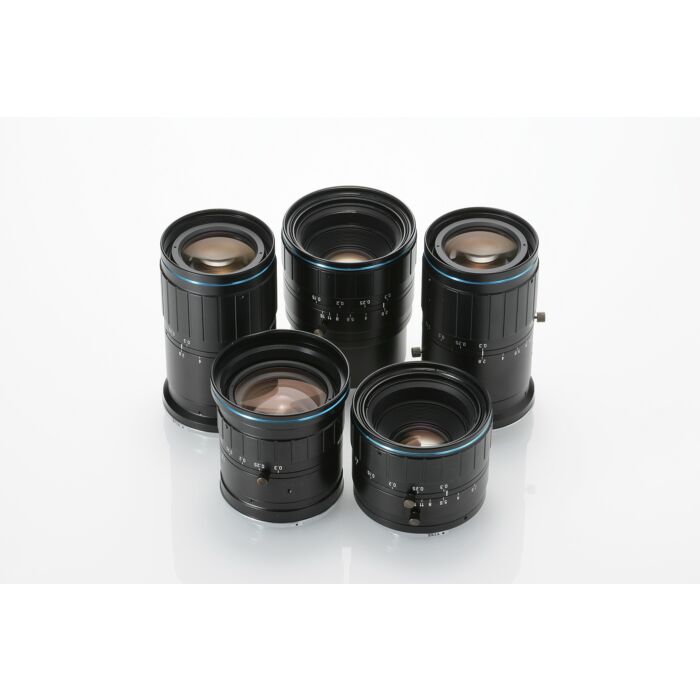

VS Technology VS-L5028FL/F Line Scan Macro Lenses
Enhance Industrial Imaging with VS Technology VS-L5028FL/F Line Scan Macro Lenses
Aegis Electronic Group Inc. offers cutting-edge machine vision and industrial lenses, exemplified by the VS Technology VS-L5028FL/F Line Scan Macro Lenses. These lenses are meticulously engineered for precision and reliability in demanding industrial imaging applications. With a focal length of 50mm and a wide working distance range from 1294.7mm to 356.1mm, they deliver exceptional clarity and detail across various line scan applications.
The VS-L5028FL/F lenses boast a distortionless design and support a broad range of focal lengths and sensor sizes, from 29mm to 45mm, catering to diverse industrial imaging needs. They are compatible with F-mount systems and offer adaptable mounts like M42, TFL, and M58, ensuring versatility and ease of integration into existing setups.
Ideal for automated inspection, quality control, and other high-resolution imaging tasks, these lenses enable precise analysis and reliable performance in challenging environments. Whether enhancing production efficiency or ensuring stringent quality standards, Aegis Electronic Group’s VS Technology lenses empower businesses with advanced imaging solutions tailored for industrial excellence.
Features:
- Focal length: 50mm
- Wide working distance: 1294.7mm to 356.1mm
- Distortionless imaging
- Compatible with F-mount and adaptable to M42, TFL, M58, and more
Applications:
- Automated inspection systems
- Quality control in manufacturing
- High-resolution imaging for precise analysis
| Focal Length (f) | 50 mm | ||
| Optical Mag. Range | (∞) x 0.04 ～ x 0.15 | ||
| Optical Mag. | x0.04 x 0.07 x 0.1 x 0.15 | ||
| WD | 1294.7 mm 744.2 mm 525.2 mm 356.1 mm | ||
| O/I (Object & Imager distance) | 1405.2 mm 854.7 mm 635.7 mm 466.6 mm | ||
| Aperture | F 2.8 ～ 16 | ||
| Working F/# *Value at Iris open | 3.0 3.1 3.2 3.3 | ||
| DOF at PCoC φ0.04mm | 150.0 mm 50.6 mm 25.6 mm 11.7 mm | ||
| Optical Distortion (Y=43.2) | 0.00 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | F-Mount | ||
| Flange Back | 46.5 mm | ||
| Image Circle | φ 43 mm | ||
| Filter Thread | M 58 P= 0.75 | ||
| Weight (approx.) | 400 g | ||
| Dimension | Ø 61 (max.) x L = 64 mm | ||
