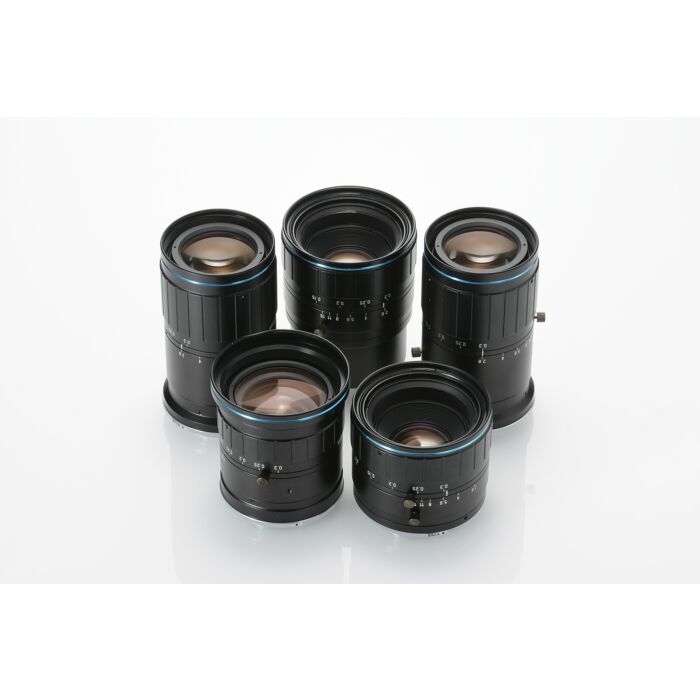

VS Technology VS-L5028/F Line Scan Macro Lenses
Enhance Your Industrial Vision with VS Technology VS-L5028/F Line Scan Macro Lenses
Aegis Electronic Group Inc. proudly presents the VS Technology VS-L5028/F Line Scan Macro Lenses, engineered for the most demanding industrial and machine vision applications. Renowned for their exceptional quality and precision, these lenses feature a versatile focal length of 35mm, supporting a wide range of working distances from 1025.0mm to 181.4mm. With magnification ranging from 0.05x to 0.3x and a working F/# of 3.1 to 3.8, they ensure distortionless, high-resolution imaging essential for accurate quality inspection and industrial automation tasks.
Designed with compatibility in mind, these F-mount lenses are complemented by select mount adaptors such as M42, TFL, M58, and more, enhancing their flexibility across various imaging setups. Whether used in automotive assembly lines, semiconductor inspection, or pharmaceutical production, the VS-5028/F lenses excel in capturing detailed images with utmost clarity and fidelity. The latest model, VS-L20040/F, introduced in March 2021, further extends their capabilities, making them an ideal choice for any line scan application requiring uncompromising performance.
Features:
- Versatile focal length: 35mm
- Wide working distance range: 1025.0mm to 181.4mm
- Magnification: 0.05x to 0.3x
- Distortionless imaging
- Compatible with F-mount and adaptors like M42, TFL, M58
- Ideal for high-resolution industrial vision
Applications:
- Quality inspection in manufacturing
- Precision imaging in automotive assembly
- Semiconductor and electronics inspection
- Pharmaceutical production
- Robotics and industrial automation
| Focal Length (f) | 50 mm | ||
| Optical Mag. Range | (∞) x 0.05 ～ x 0.3 | ||
| Optical Mag. | x0.05 x 0.1 x 0.2 x 0.3 | ||
| WD | 1025.0 mm 513.7 mm 261.9 mm 181.4 mm | ||
| O/I (Object & Imager distance) | 1129.5 mm 618.2 mm 366.4 mm 285.9 mm | ||
| Aperture | F 2.8 ～ 16 | ||
| Working F/# *Value at Iris open | 3.1 3.2 3.5 3.8 | ||
| DOF at PCoC φ0.04mm | 99.2 mm 25.6 mm 7.0 mm 3.4 mm | ||
| Optical Distortion (Y=43.2) | -0.02 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | F-Mount | ||
| Flange Back | 46.5 mm | ||
| Image Circle | φ 45 mm | ||
| Filter Thread | M 62 P= 0.75 | ||
| Weight (approx.) | 290 g | ||
| Dimension | Ø 66 (max.) x L = 58 mm | ||
