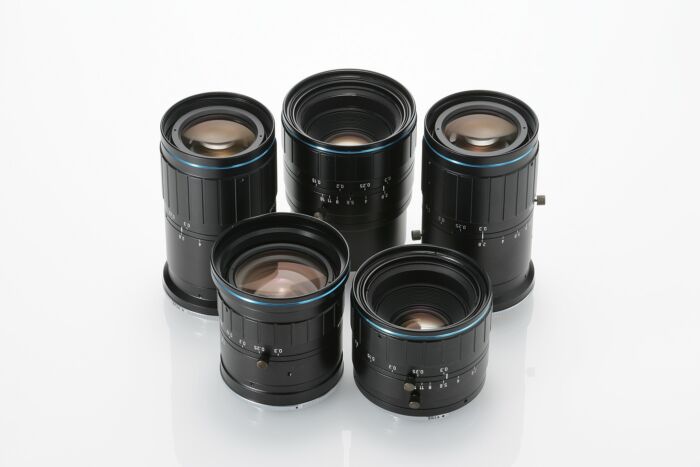

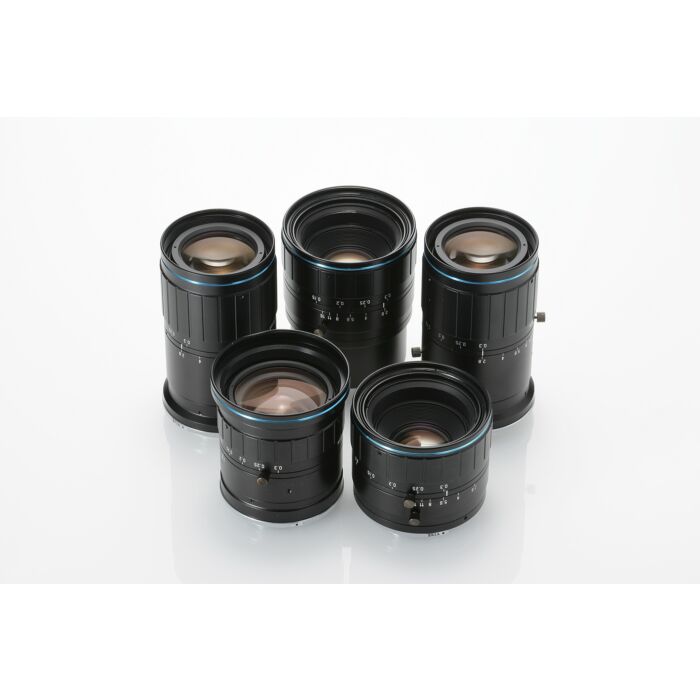

VS Technology VS-L5018FL/F Line Scan Macro Lenses
Versatile Line Scan Macro Lenses for Industrial Applications
Aegis Electronic Group Inc. offers the advanced VS Technology VS-L5018FL/F Line Scan Macro Lenses, designed to meet the rigorous demands of industrial and machine vision applications. With a wide range of focal lengths from 18mm to 200mm and compatibility with various sensors (29mm to 45mm), these lenses provide exceptional versatility and high-precision imaging. The lenses support multiple mount adaptors, including F-Mount, M42, TFL, and M58, ensuring seamless integration into diverse setups.
The VS-L5018FL/F lenses deliver distortionless imaging, crucial for applications requiring precise measurement and inspection. The working distance ranges from 1123.7mm to 388.6mm, with a magnification range of 0.05x to 0.14x, providing the flexibility needed for various line scan tasks. The working F/# of 2.0 to 2.2 ensures optimal light management and image clarity, making these lenses ideal for high-precision tasks.
The introduction of the new model VS-L20040/F further expands the capabilities, offering even more options for specialized applications. Industries such as semiconductor manufacturing, pharmaceutical inspection, and electronic component assembly will greatly benefit from the high quality and adaptability of these lenses.
Features:
- Wide focal length range (18mm to 200mm)
- Distortionless imaging for accurate measurements
- Supports sensors from 29mm to 45mm
- Multiple mount adaptors available (F-Mount, M42, TFL, M58)
- Working distance: 1123.7mm to 388.6mm
- Magnification range: 0.05x to 0.14x
- Working F/#: 2.0 to 2.2
- New model VS-L20040/F available
Applications:
- Semiconductor manufacturing
- Pharmaceutical inspection
- Electronic component assembly
- Quality control in manufacturing
- High-precision measurement systems
- Automated optical inspection
- Surface defect detection
| Focal Length (f) | 50 mm | ||
| Optical Mag. Range | (∞) x 0.05 ～ x 0.14 | ||
| Optical Mag. | x0.05 x 0.07 x 0.1 x 0.14 | ||
| WD | 1123.7 mm 752.4 mm 533.6 mm 388.6 mm | ||
| O/I (Object & Imager distance) | 1223.7 mm 852.4 mm 633.6 mm 488.6 mm | ||
| Aperture | F 1.8 ～ 16 | ||
| Working F/# *Value at Iris open | 2.0 2.0 2.1 2.2 | ||
| DOF at PCoC φ0.04mm | 64.0 mm 32.7 mm 16.8 mm 9.0 mm | ||
| Optical Distortion (Y=43.2) | -2.37 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | F-Mount | ||
| Flange Back | 46.5 mm | ||
| Image Circle | φ 45 mm | ||
| Filter Thread | M 62 P= 0.75 | ||
| Weight (approx.) | 340 g | ||
| Dimension | Ø 65 (max.) x L = 53.5 mm | ||
