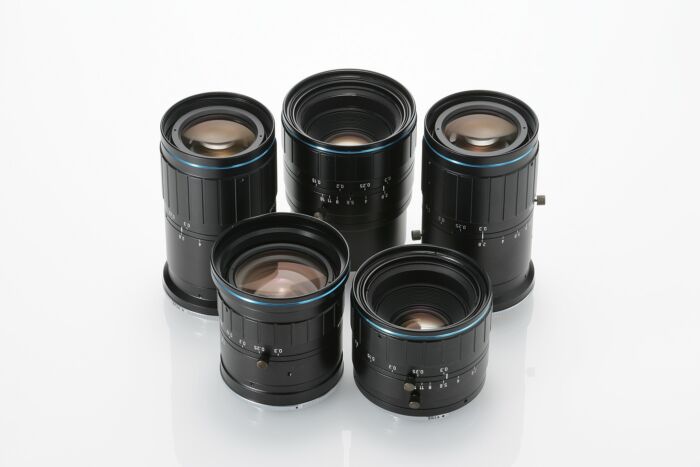

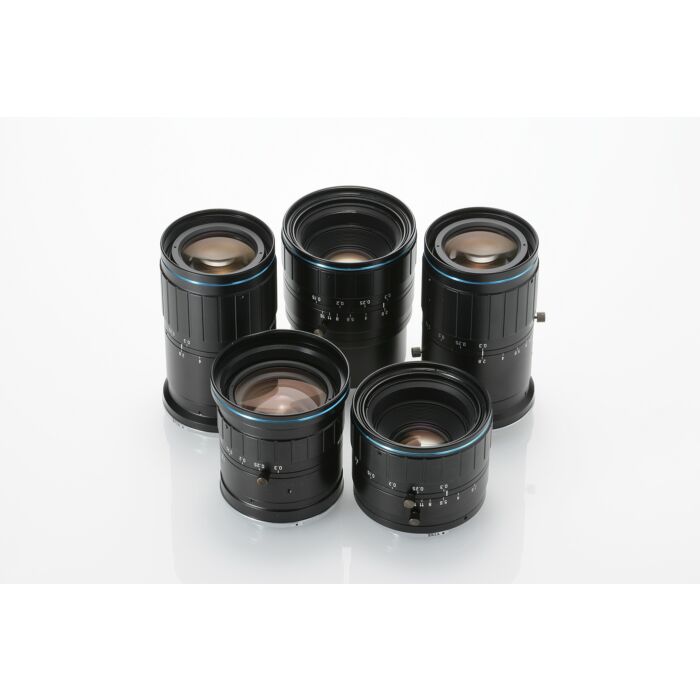

VS Technology VS-L3528LM/F Line Scan Macro Lenses
Superior Imaging with VS Technology Line Scan Macro Lenses
Aegis Electronic Group Inc. presents the VS Technology VS-L3528LM/F Line Scan Macro Lenses, a premium solution for high-precision industrial and machine vision applications. These lenses are designed with a focal length of 35mm and a working distance range of 1795.2mm to 289.0mm, providing versatile magnification from 0.02x to 0.12x. Their distortionless imaging ensures unparalleled accuracy, making them ideal for applications requiring meticulous detail and reliability.
The VS-L3528LM/F supports a wide sensor range from 29mm to 45mm, enhancing its adaptability across various setups. The availability of multiple mount adaptors, including F-Mount, M42, TFL, and M58, further extends its compatibility with different camera systems. This flexibility makes the VS-L3528LM/F a preferred choice for a variety of line scan applications, from quality control in manufacturing to detailed inspection processes.
In 2021, VS Technology introduced the new model VS-L20040/F, expanding the range with advanced features for even more precise and reliable performance. Industries such as electronics, pharmaceuticals, and automotive manufacturing can greatly benefit from these lenses, ensuring high-quality imaging for their critical operations.
Features:
- 35mm focal length
- Working distance: 1795.2mm to 289.0mm
- Magnification range: 0.02x to 0.12x
- Distortionless imaging
- Sensor support: 29mm to 45mm
- Versatile mount adaptors (M42, TFL, M58, and more)
Applications:
- Quality control in manufacturing
- Detailed inspection processes
- Electronics assembly verification
- Pharmaceutical production monitoring
- Automotive component analysis
| Focal Length (f) | 35 mm | ||
| Optical Mag. Range | (∞) x 0.02 ～ x 0.12 | ||
| Optical Mag. | x0.02 x 0.04 x 0.08 x 0.12 | ||
| WD | 1795.2 mm 890.0 mm 438.5 mm 289.0 mm | ||
| O/I (Object & Imager distance) | 1911.2 mm 1006.0 mm 554.5 mm 405.0 mm | ||
| Aperture | F 2.8 ～ 16 | ||
| Working F/# *Value at Iris open | 2.9 2.9 3.0 3.2 | ||
| DOF at PCoC φ0.04mm | 580.0 mm 145.0 mm 37.5 mm 17.8 mm | ||
| Optical Distortion (Y=43.2) | -0.21 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | F-Mount | ||
| Flange Back | 46.5 mm | ||
| Image Circle | φ 45 mm | ||
| Filter Thread | M 62 P= 0.75 | ||
| Weight (approx.) | 340 g | ||
| Dimension | Ø 64.5 (max.) x L = 69.5 mm | ||
