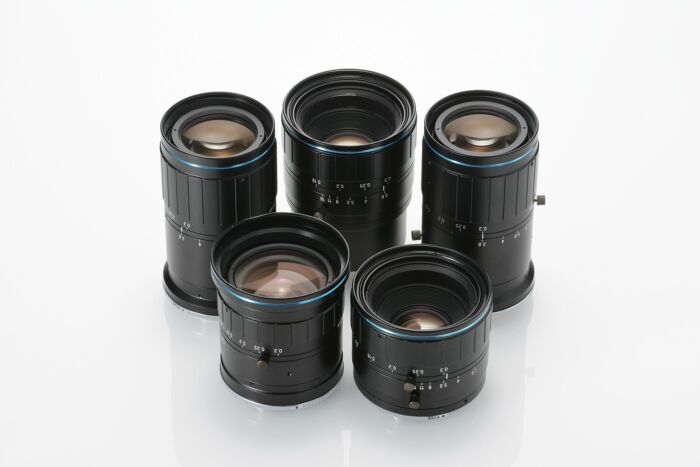

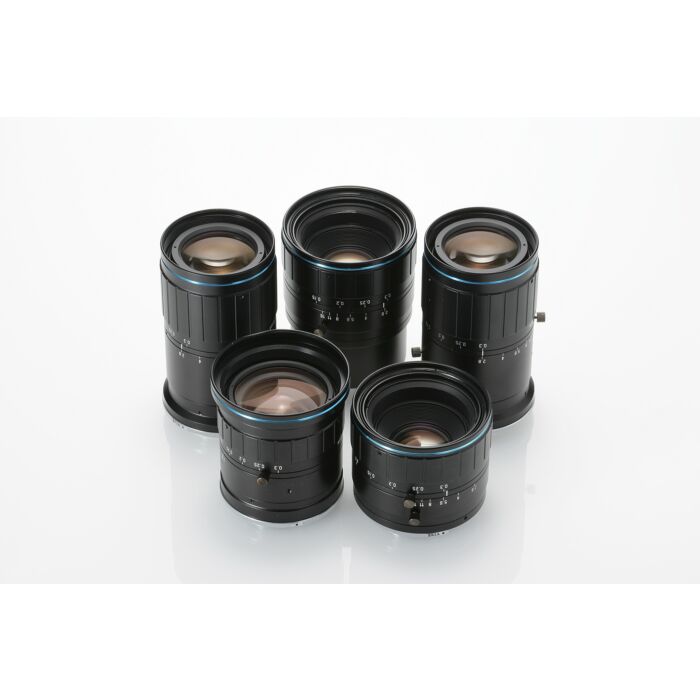

VS Technology VS-L3528FL/F Line Scan Macro Lenses
Unlock Precision with VS Technology VS-L3528FL/F Line Scan Macro Lenses
Aegis Electronic Group Inc. proudly offers the VS Technology VS-L3528FL/F Line Scan Macro Lenses, designed for precision in machine vision and industrial applications. These lenses boast a focal length of 35mm and a working distance ranging from 1018.5mm to 359.9mm, providing magnification from 0.04x to 0.15x. The working F/# ranges between 2.9 to 3.1, ensuring optimal light transmission and image clarity.
One of the standout features of the VS-L3528FL/F is its ability to support sensors ranging from 29mm to 45mm, making it a versatile choice for various line scan applications. With focal lengths between 18mm and 200mm and a distortionless design, these lenses deliver high-resolution imaging without compromising on accuracy. Additionally, select mount adaptors, including M42, TFL, and M58, are available to suit different mounting requirements.
The new model, VS-L20040/F, released in March 2021, further expands the capabilities of this exceptional product line. Industries such as electronics, automotive, and pharmaceuticals can greatly benefit from these lenses, enhancing inspection, quality control, and automation processes. Choose the VS-L3528FL/F for your machine vision needs and experience unmatched precision and reliability.
Features:
- Focal Length: 35mm
- Working Distance: 1018.5mm to 359.9mm
- Magnification: 0.04x to 0.15x
- Working F/#: 2.9 to 3.1
- Sensor Support: 29mm to 45mm
- Focal Length Range: 18mm to 200mm
- Distortionless Imaging
- Select Mount Adaptors Available: M42, TFL, M58
Applications:
- Electronics inspection
- Automotive quality control
- Pharmaceutical automation
- Line scan imaging
- High-resolution industrial imaging
- Precision measurement and analysis
| Focal Length (f) | 35 mm | ||
| Optical Mag. Range | (∞) x 0.04 ～ x 0.15 | ||
| Optical Mag. | x0.04 x 0.07 x 0.1 x 0.15 | ||
| WD | 884.5 mm 498.5 mm 344.7 mm 225.9 mm | ||
| O/I (Object & Imager distance) | 1018.5 mm 632.5 mm 478.7 mm 359.9 mm | ||
| Aperture | F 2.8 ～ 16 | ||
| Working F/# *Value at Iris open | 2.9 3.0 3.0 3.1 | ||
| DOF at PCoC φ0.04mm | 145.0 mm 49.0 mm 24.0 mm 11.0 mm | ||
| Optical Distortion (Y=43.2) | -0.65 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | F-Mount | ||
| Flange Back | 46.5 mm | ||
| Image Circle | φ 43 mm | ||
| Filter Thread | M 62 P= 0.75 | ||
| Weight (approx.) | 340 g | ||
| Dimension | Ø 64.5 (max.) x L = 87.5 mm | ||
