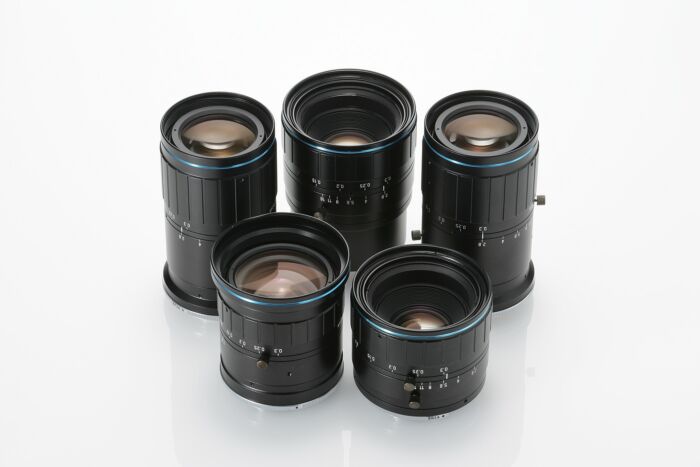

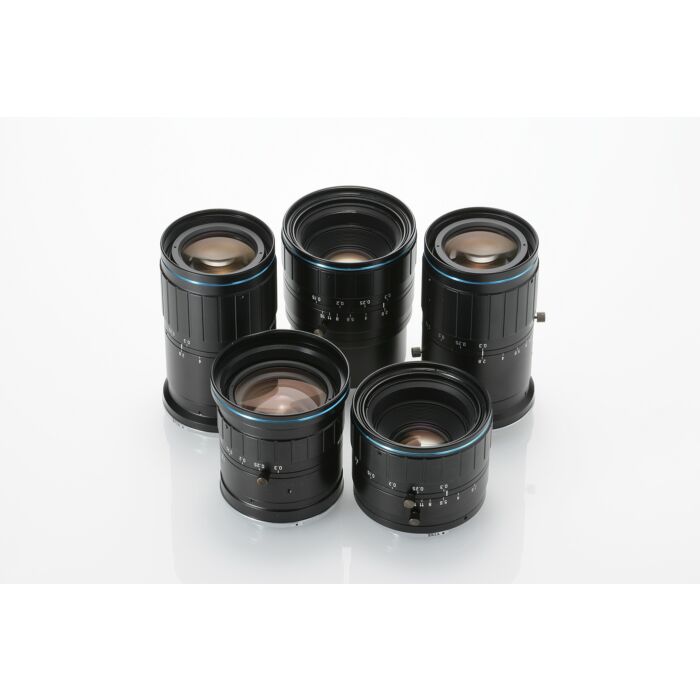

VS Technology VS-L3528/F Line Scan Macro Lenses
Advanced Imaging Solutions with VS Technology VS-L3528/F Line Scan Macro Lenses
Aegis Electronic Group Inc. proudly offers the VS Technology VS-L3528/F Line Scan Macro Lenses, a cutting-edge solution for high-precision imaging in industrial and machine vision applications. These lenses are designed with a focal length of 35mm and support a wide range of working distances from 706.9mm to 112.8mm, providing magnification from 0.05x to 0.3x. The lenses feature an adjustable working F/# from 2.8 to 3.5, ensuring optimal performance in various lighting conditions.
The VS-L3528/F lenses are compatible with multiple mount options, including F-Mount, M42, TFL, and M58, offering versatility for different setups. Their ability to support sensors ranging from 29mm to 45mm makes them ideal for any line scan application. These lenses are also designed to be distortionless, ensuring that images are captured with high accuracy and clarity.
Customers in the industrial and machine vision sectors will benefit from the high-resolution imaging capabilities of these lenses, particularly in applications such as quality control, inspection systems, and automated production lines. With the recent addition of the VS-L20040/F model, Aegis Electronic Group Inc. continues to provide innovative and reliable solutions for advanced imaging needs.
Features:
- Focal length: 35mm
- Working distance: 706.9mm to 112.8mm
- Magnification: 0.05x to 0.3x
- Adjustable working F/#: 2.8 to 3.5
- Mount options: F-Mount, M42, TFL, M58
- Supports 29mm to 45mm sensors
- Distortionless imaging
- New VS-L20040/F model available
Applications:
- Quality control systems
- Inspection systems
- Automated production lines
- High-resolution imaging
- Precision optics
- Line scan applications
| Focal Length (f) | 35 mm | ||
| Optical Mag. Range | (∞) x 0.05 ～ x 0.3 | ||
| Optical Mag. | x0.05 x 0.1 x 0.2 x 0.3 | ||
| WD | 706.9 mm 346.8 mm 169.5 mm 112.8 mm | ||
| O/I (Object & Imager distance) | 824.9 mm 464.8 mm 287.5 mm 230.8 mm | ||
| Aperture | F 2.8 ～ 16 | ||
| Working F/# *Value at Iris open | 2.8 3.0 3.3 3.5 | ||
| DOF at PCoC φ0.04mm | 89.6 mm 24.0 mm 6.6 mm 3.1 mm | ||
| Optical Distortion (Y=43.2) | -0.43 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | F-Mount | ||
| Flange Back | 46.5 mm | ||
| Image Circle | φ 45 mm | ||
| Filter Thread | M 62 P= 0.75 | ||
| Weight (approx.) | 350 g | ||
| Dimension | Ø 64.5 (max.) x L = 71.5 mm | ||
