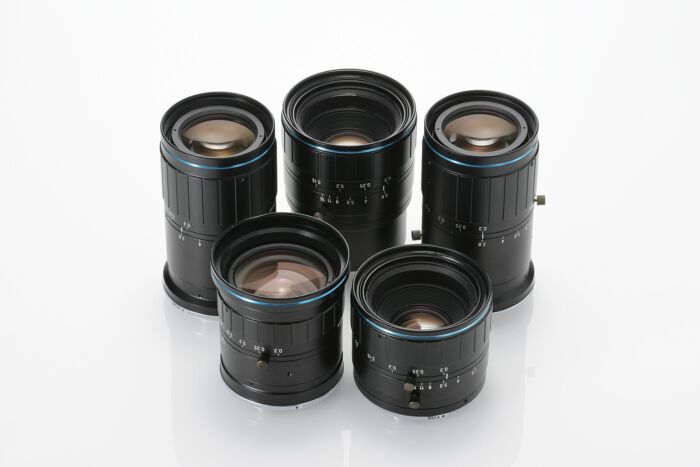

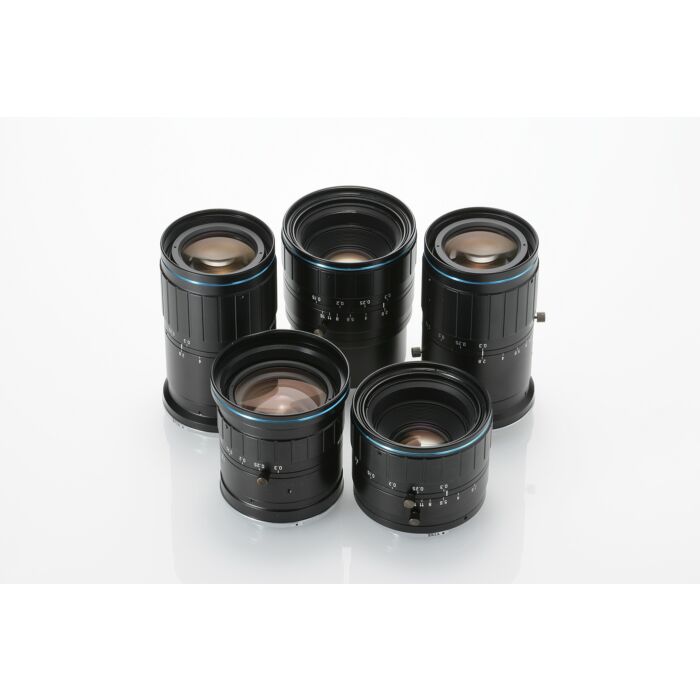

VS Technology VS-L2526/F Line Scan Macro Lenses
Enhance Your Industrial Vision Systems with VS Technology Line Scan Macro Lenses
Aegis Electronic Group Inc. is proud to present the VS Technology VS-L2526/F Line Scan Macro Lenses, renowned for their superior quality and versatility in industrial and machine vision applications. These lenses offer a focal length of 25mm and a working distance range of 1010.8mm to 198.1mm, providing magnifications from 0.025x to 0.12x. Designed with a working F/# of 2.7 to 2.9, these lenses ensure exceptional image clarity and minimal distortion, making them ideal for high-precision tasks.
The VS-L2526/F lenses support a wide range of sensor sizes, from 29mm to 45mm, and offer focal lengths between 18mm and 200mm. This flexibility makes them an excellent choice for various line scan applications. Additionally, these lenses are compatible with multiple mount adaptors, including M42, TFL, and M58, ensuring seamless integration into existing systems.
Industries such as manufacturing, quality control, and inspection can greatly benefit from these advanced lenses, as they provide accurate and reliable imaging solutions. With the introduction of the new VS-L20040/F model, VS Technology continues to push the boundaries of optical performance, offering cutting-edge solutions to meet the evolving needs of industrial vision systems.
Features:
- Focal Length: 25mm
- Working Distance: 1010.8mm to 198.1mm
- Magnification: 0.025x to 0.12x
- Working F/#: 2.7 to 2.9
- Supports 29mm to 45mm sensors
- Focal Length Range: 18mm to 200mm
- Distortionless imaging
- Compatible with M42, TFL, M58 mounts
Applications:
- Manufacturing inspection
- Quality control
- Surface inspection
- High-precision measurement
- Automated optical inspection
- Electronic component inspection
- Pharmaceutical packaging inspection
| Focal Length (f) | 25 mm | ||
| Optical Mag. Range | (∞) x 0.025 ～ x 0.12 | ||
| Optical Mag. | x0.025 x 0.05 x 0.1 x 0.12 | ||
| WD | 1010.8 mm 496.6 mm 240.5 mm 198.1 mm | ||
| O/I (Object & Imager distance) | 1100.8 mm 586.6 mm 330.5 mm 288.1 mm | ||
| Aperture | F 2.6 ～ 16 | ||
| Working F/# *Value at Iris open | 2.7 2.8 2.9 2.9 | ||
| DOF at PCoC φ0.04mm | 345.6 mm 89.6 mm 23.2 mm 16.1 mm | ||
| Optical Distortion (Y=43.2) | -1.64 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | F-Mount | ||
| Flange Back | 46.5 mm | ||
| Image Circle | φ 29 mm | ||
| Filter Thread | M 55 P= 0.75 | ||
| Weight (approx.) | 245 g | ||
| Dimension | Ø 59 (max.) x L = 43.5 mm | ||
