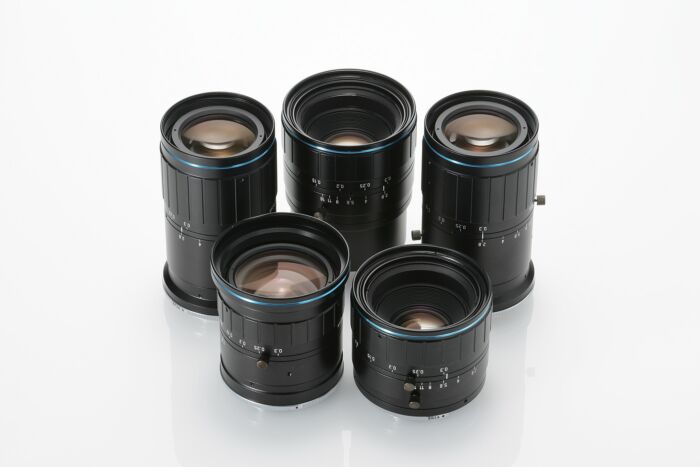

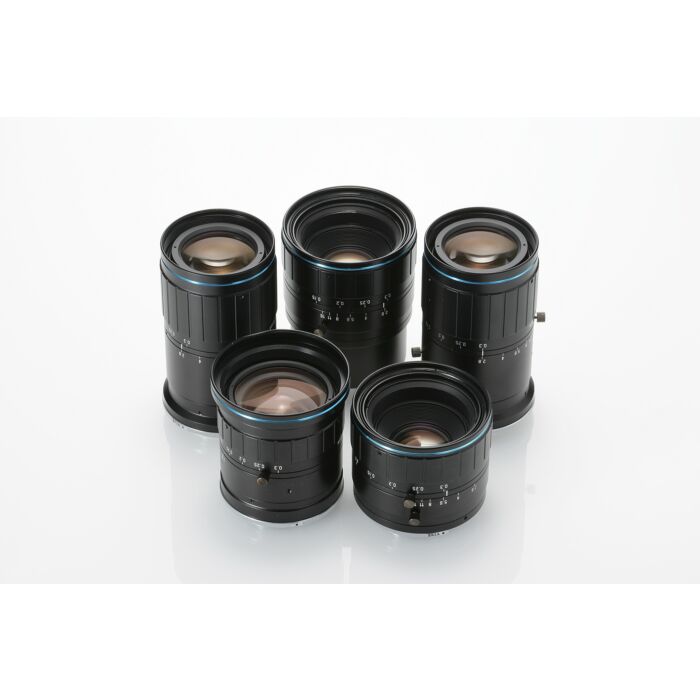

VS Technology VS-L20040/F Line Scan Macro Lenses
VS Technology VS-L20040/F Line Scan Macro Lenses
Aegis Electronic Group Inc. presents the VS Technology VS-L20040/F Line Scan Macro Lenses, designed to meet the exacting demands of industrial and machine vision applications. These lenses offer a versatile solution with a focal length range from 18mm to 200mm and support for sensors ranging from 29mm to 45mm. Engineered with precision optics, they deliver distortion-free images, crucial for accurate quality inspection and precise imaging tasks in industrial automation settings.
The VS-L20040/F lenses feature an adaptable F-mount, supporting various mount adaptors such as M42, TFL, M58, and more, ensuring compatibility with a wide array of camera systems. This flexibility makes them ideal for diverse line scan applications where consistency and high resolution are paramount.
Whether used for monitoring production lines, inspecting pharmaceutical packaging, or ensuring flaw detection in manufacturing processes, these lenses excel in capturing detailed images with exceptional clarity. The 2021 model upgrade enhances performance, reflecting VS Technology's commitment to innovation in optics for industrial imaging.
Features:
- Focal length range: 18mm to 200mm
- Supports sensors: 29mm to 45mm
- Distortionless optics
- Adaptable F-mount with multiple adaptor options
Applications:
- Quality inspection
- Manufacturing automation
- Pharmaceutical inspection
- Print inspection
| Focal Length (f) | 200 mm | ||
| Optical Mag. Range | (∞) x 0.32 ～ x 1.0 | ||
| Optical Mag. | x 0.32 x 1.0 | ||
| WD | 701.5 mm 262.0 mm | ||
| O/I (Object & Imager distance) | 939.5 mm 500.0 mm | ||
| Aperture | F 4.0 ～ 32 | ||
| Working F/# *Value at Iris open | 4.6 5.9 | ||
| NA | 0.035 0.084 | ||
| DOF at PCoC φ0.04mm | 3.6 mm 0.5 mm | ||
| TV Distortion (Super 35mm) | 0.14 % 0.16% | ||
| Relative Illuminance (Y=17.6) | 55% 90% | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | F-Mount | ||
| Flange Back | 46.5 mm | ||
| Sensor Size | Super 35 mm | ||
| Filter Thread | M 62 P= 0.75 | ||
| Weight (approx.) | 1100 g | ||
| Dimension | Ø 68 (max.) x L = 191.5 mm | ||
