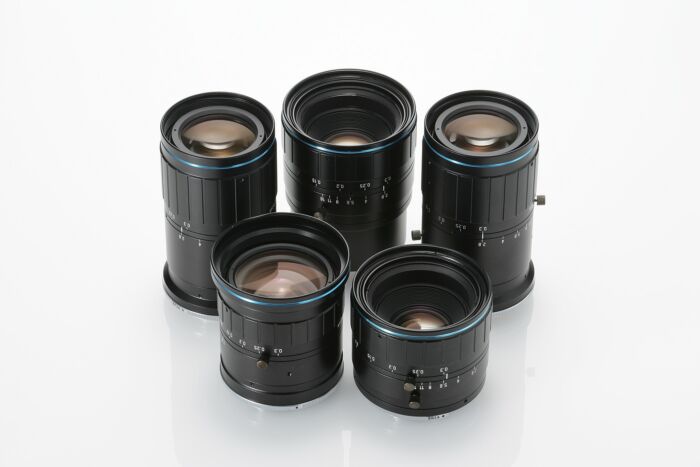

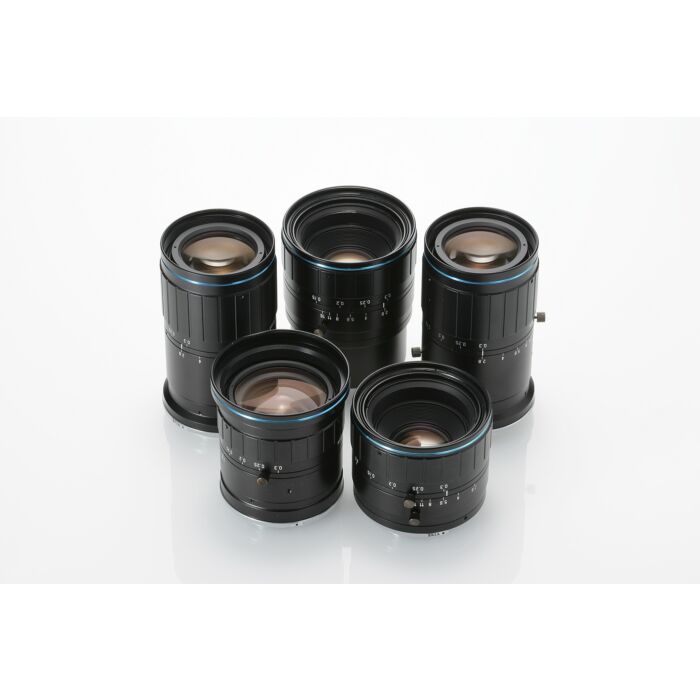

VS Technology VS-L18556/F Line Scan Macro Lenses
High-Performance Line Scan Macro Lens for Industrial Machine Vision
Aegis Electronic Group Inc. proudly introduces the VS Technology VS-L18556/F Line Scan Macro Lens, crafted to excel in demanding industrial and machine vision applications. Renowned for its versatility, this lens boasts a focal length ranging from 185mm, offering superb image quality with minimal distortion across various working distances from 1951.7mm to 1404.4mm. It supports a magnification range of 0.108x to 0.159x and operates efficiently at a working F/# of 7.1 to 7.4.
Engineered for precision, the VS-L18556/F ensures distortionless imaging crucial for detailed inspection tasks in manufacturing and quality control environments. Compatible with multiple mounts including F-mount (M42, TFL, M58, and more), it facilitates seamless integration into diverse imaging setups.
Features:
- Focal Length: 185mm
- Magnification: 0.108x to 0.159x
- Working Distance: 1951.7mm to 1404.4mm
- Working F/#: 7.1 to 7.4
- Distortionless imaging
- Multiple mount adaptors available
Applications:
- Line scan applications
- Industrial automation
- Quality control inspection
- Manufacturing process monitoring
- Precision imaging in robotics
| Focal Length (f) | 185 mm | ||
| Optical Mag. Range | x 0.108 ～ x 0.159 | ||
| Optical Mag. | x 0.108 x 0.159 | ||
| WD | 1951.7 mm 1404.4 mm ± 42 | ||
| O/I (Object & Imager distance) | 2134.8 mm 1596.9 mm | ||
| Aperture | F 5.6 ～ 32 | ||
| Working F/# *Value at Iris open | 7.1 7.4 | ||
| DOF at PCoC φ0.04mm | 48.5 mm 23.4 mm | ||
| Optical Distortion (Y=43.2) | 0.48 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | F-Mount | ||
| Flange Back | 46.5 mm | ||
| Image Circle | φ 45 mm | ||
| Filter Thread | M 40.5 P= 0.5 | ||
| Weight (approx.) | 400 g | ||
| Dimension | Ø 59 (max.) x L = 136.6 mm (X0.108) 146.0～(X0.159) mm | ||
