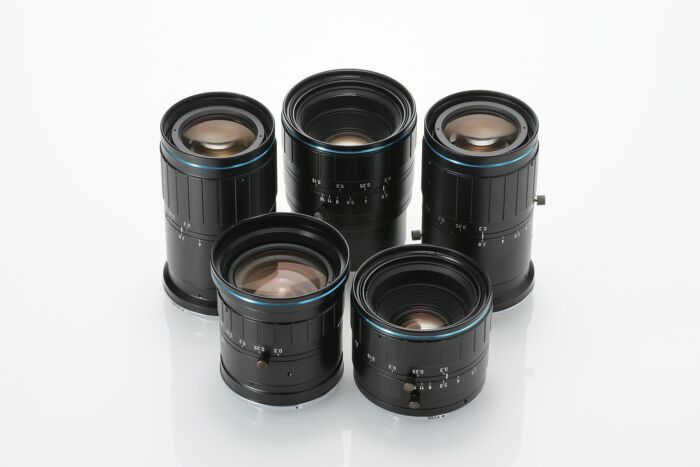

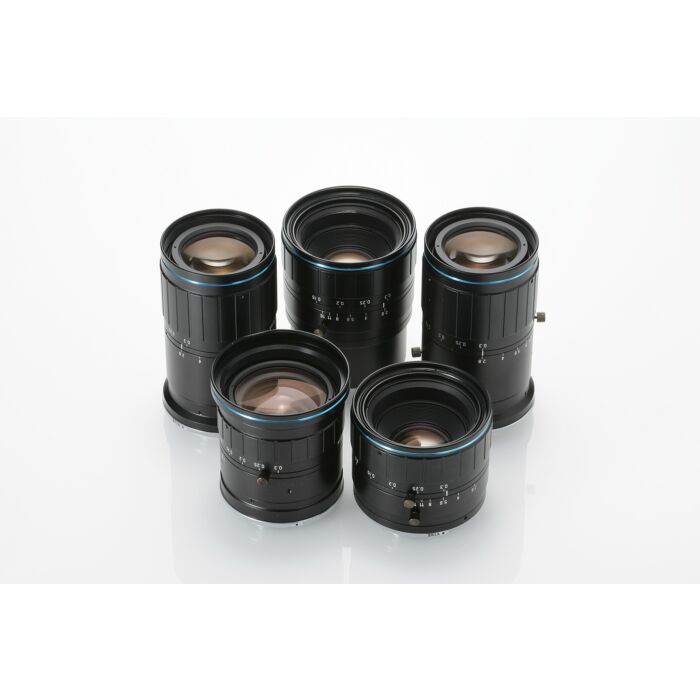

VS Technology VS-L1828/F Line Scan Macro Lenses
Unmatched Precision with VS Technology VS-L1828/F Line Scan Macro Lenses
Aegis Electronic Group Inc. proudly offers the VS Technology VS-L1828/F Line Scan Macro Lenses, renowned for their exceptional precision and versatility in industrial and machine vision applications. These lenses feature a focal length of 18mm, with a working distance ranging from 722.9mm to 137.9mm and a magnification range of 0.025x to 0.12x. Designed to deliver distortionless imaging, these lenses support sensors ranging from 29mm to 45mm, making them an ideal choice for any line scan application.
The VS-L1828/F lenses are compatible with various mount adapters, including M42, TFL, and M58, providing flexibility in integration. Their working F/# of 2.9 to 3.2 ensures optimal performance in diverse lighting conditions. Furthermore, the large range of focal lengths and supported sensors make these lenses a versatile solution for industries requiring high-resolution imaging, such as electronics manufacturing, pharmaceuticals, and food inspection.
VS Technology continuously innovates to meet the demands of modern imaging applications, and the VS-L1828/F is no exception. Aegis Electronic Group Inc. also offers the latest model, VS-L20040/F, introduced in 2021, for even greater imaging capabilities. Choose VS Technology lenses for superior performance and reliability in your industrial and machine vision projects.
Features:
- Focal length: 18mm
- Working distance: 722.9mm to 137.9mm
- Magnification: 0.025x to 0.12x
- Distortionless imaging
- Sensor support: 29mm to 45mm
- Working F/#: 2.9 to 3.2
- Compatible with M42, TFL, M58 mounts
Applications:
- Electronics manufacturing
- Pharmaceutical inspection
- Food and beverage quality control
- Automated assembly lines
- Material sorting and grading
- Precision engineering
- Surface defect detection
| Focal Length (f) | 18 mm | ||
| Optical Mag. Range | (∞) x 0.025 ～ x 0.12 | ||
| Optical Mag. | x0.025 x 0.05 x 0.1 x 0.12 | ||
| WD | 722.9 mm 352.8 mm 168.4 mm 137.9 mm | ||
| O/I (Object & Imager distance) | 826.9 mm 456.8 mm 272.4 mm 241.9 mm | ||
| Aperture | F 2.8 ～ 16 | ||
| Working F/# *Value at Iris open | 2.9 3.0 3.1 3.2 | ||
| DOF at PCoC φ0.04mm | 371.2 mm 96.0 mm 24.8 mm 17.8 mm | ||
| Optical Distortion (Y=43.2) | -2.14 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | F-Mount | ||
| Flange Back | 46.5 mm | ||
| Image Circle | φ 29 mm | ||
| Filter Thread | M 55 P= 0.75 | ||
| Weight (approx.) | 330 g | ||
| Dimension | Ø 59 (max.) x L = 57.5 mm | ||
