VS Technology VS-L12040-2/M67S 8K, 12K & 16K Line Scan Macro Lenses
Unmatched Precision with VS Technology Line Scan Macro Lenses
Aegis Electronic Group Inc. proudly offers the VS Technology VS-L12040-2/M67S 8K, 12K & 16K Line Scan Macro Lenses, setting a new standard in machine vision and industrial lenses. These lenses are engineered for use with large sensors up to 90mm in length, making them ideal for high-resolution applications. The VS-L(V) series boasts integrated vibration resistance, ensuring stable and reliable performance even in challenging environments. With a focal length of 120mm, a working distance of 127.0mm, and a magnification of 2.0x, these lenses deliver exceptional clarity and precision.
Designed with versatility in mind, the VS-L12040-2/M67S lenses offer a variety of mount adapters including M42, TFL, M58, and more, catering to different system requirements. The high contrast and distortionless design ensure that every detail is captured accurately, making these lenses perfect for line scan applications in industrial inspection, quality control, and other machine vision tasks.

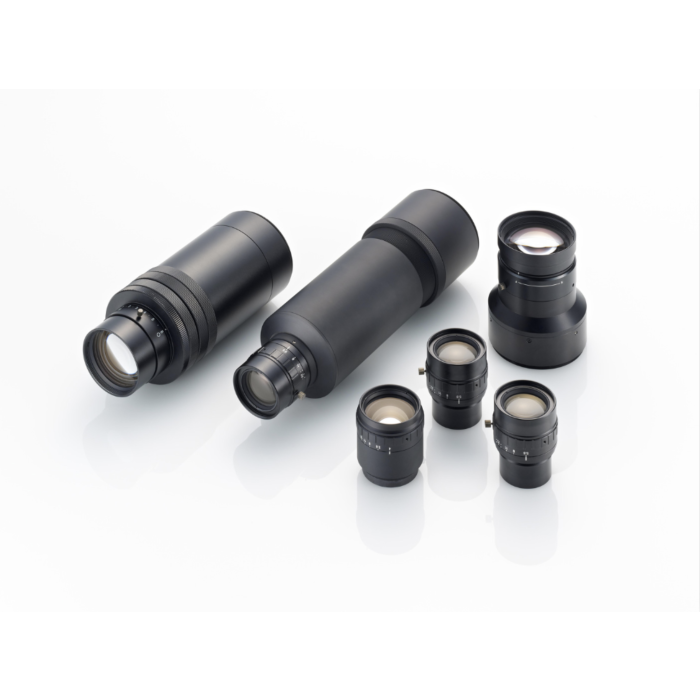

The lenses are available in 8K, 12K, and 16K resolutions, providing options that meet diverse imaging needs. With 13 models available in the VS-L(V) series, customers can find the perfect lens for their specific application, ensuring superior performance and image quality.
Features:
- Focal Length: 120mm
- Working Distance: 127.0mm
- Magnification: 2.0x
- Working F/#: 12.1
- Mount: M67 P=0.75 (Adapters for M42, TFL, M58, and more)
- Designed for sensors up to 90mm
- Available in 8K, 12K, & 16K resolutions
- High resolution and high contrast
- Integrated vibration resistance
- Distortionless imaging
- 13 models available
Applications:
- Industrial Inspection
- Quality Control
- Surface Defect Detection
- High-Speed Sorting
- Precision Measurement
- Automated Optical Inspection
- Material Handling
- Robotics
- Manufacturing Automation
- Print Inspection
| Focal Length (f) | 120 mm | ||
| Optical Mag. | x 2.0 | ||
| WD | 127.0 mm | ||
| O/I (Object & Imager distance) | 548.6 mm | ||
| Aperture | F 4 ～ 22 | ||
| Working F/# *Value at Iris open | 12.1 | ||
| NA | 0.083 | ||
| DOF at PCoC φ0.04mm | 0.2 mm | ||
| Optical Distortion (Y=43.2) | 0.07 % | ||
| Relative Illuminance (Y=43.2) | 97 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | M 67 P= 0.75 | ||
| Flange Back | 303.1 mm | ||
| Image Circle | φ 90 mm | ||
| Filter Thread | M 52 P= 0.75 | ||
| Weight (approx.) | 680 g | ||
| Dimension | Ø 70 (max.) x L = 118.5 mm | ||
