VS Technology VS-L12035-075/V 8K, 12K & 16K Line Scan Macro Lenses

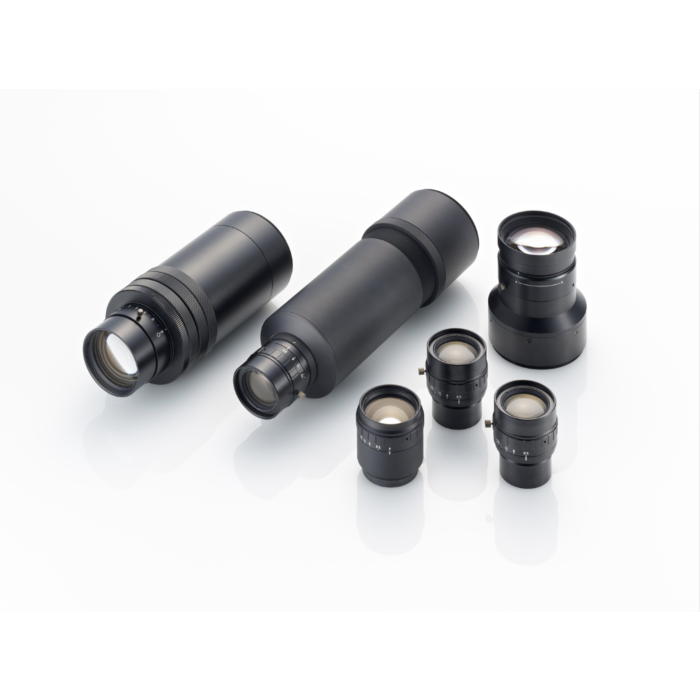

Exceptional VS Technology VS-L12035-075/V Line Scan Macro Lenses
At Aegis Electronic Group Inc., the VS Technology VS-L12035-075/V series represents the pinnacle of quality in line scan macro lenses for industrial and machine vision applications. These lenses are meticulously engineered to accommodate large sensors up to 90mm in length, ensuring optimal image capture across various industrial processes. With integrated vibration resistance and a versatile selection of mount adapters including V-Mount, M42, TFL, and M58, these lenses offer unparalleled adaptability.
The VS-L(V) series boasts high resolution and high contrast capabilities, crucial for demanding applications such as quality control, inspection, and precision manufacturing. Each lens in the series is distortionless, preserving the integrity of images and ensuring accurate analysis in image processing tasks. With 13 models available, supporting resolutions up to 16K, these lenses cater to diverse needs in the industrial sector, delivering clarity and reliability under challenging conditions.
Features:
- Designed for large sensors up to 90mm
- Vibration-resistant construction
- Distortionless image quality
- Versatile mount adapters (V-Mount, M42, TFL, M58)
- Supports resolutions up to 16K
Applications:
- Quality control in manufacturing
- Precision inspection
- Industrial automation
- Image processing
- Machine vision
| Focal Length (f) | 120 mm | ||
| Optical Mag. | x 0.7 x 0.75 x 0.8 | ||
| WD | 260.3 mm 248.9 mm 238.9 mm | ||
| O/I (Object & Imager distance) | 485.8 mm 480.4 mm 476.4 mm | ||
| Aperture | F 3.5 ～ 22 | ||
| Working F/# *Value at Iris open | 6.0 6.1 6.3 | ||
| NA | 0.058 0.061 0.063 | ||
| DOF at PCoC φ0.04mm | 1.0 mm 0.9 mm 0.8 mm | ||
| Optical Distortion (Y=43.2) | 0.01 % | ||
| Relative Illuminance (Y=43.2) | 84 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | V-Mount | ||
| Flange Back | 184.2 mm 190.2 mm 196.2 mm | ||
| Image Circle | φ 90 mm | ||
| Filter Thread | M 46 P= 0.75 | ||
| Weight (approx.) | 350 g | ||
| Dimension | Ø 58 (max.) x L = 41.3 mm | ||
