VS Technology VS-L12028-3.3/M67S 8K, 12K & 16K Line Scan Macro Lenses
Enhance Your Machine Vision with VS Technology VS-L12028-3.3/M67S Macro Lenses
Aegis Electronic Group Inc. proudly offers the VS Technology VS-L12028-3.3/M67S, a premier choice for line scan applications requiring exceptional clarity and precision. These macro lenses are meticulously crafted to meet the demands of modern industrial and machine vision tasks, accommodating sensors up to 90mm in length. With a focal length of 120mm and a magnification of 3.3×, they deliver unrivaled detail and high contrast for 8K, 12K, and 16K resolutions.

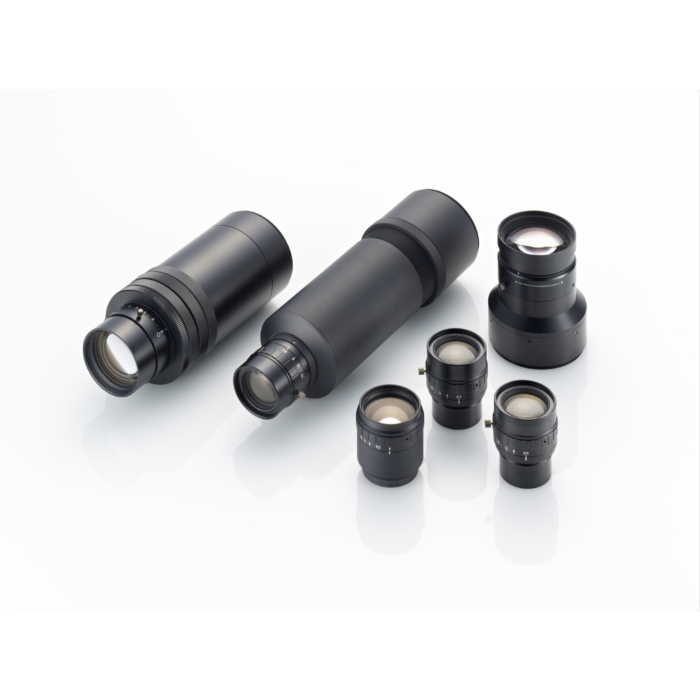

Designed for robustness and reliability, the VS-L(V) series incorporates vibration resistance, ensuring stable performance even in dynamic environments. The lenses' distortionless output and extensive compatibility with various mount adapters, including M42, TFL, and M58, make them versatile for diverse applications.
Industries ranging from semiconductor manufacturing to medical imaging and aerospace will benefit from the superior image quality and precision offered by these lenses. Whether it’s for quality control inspection, surface analysis, or scientific research, the VS-L12028-3.3/M67S lenses enhance the capabilities of your imaging systems.
Explore the cutting-edge technology and elevate your machine vision projects with the VS-L12028-3.3/M67S lenses, available at Aegis Electronic Group Inc. Experience the difference in your industrial applications today.
Features:
- Focal Length: 120mm
- Working Distance: 82.7mm
- Magnification: 3.3×
- Working F/#: 12.6
- Mount: M67 P=0.75 (adapters available for M42, TFL, M58, and more)
- Vibration resistance
- High resolution and high contrast
- Distortionless performance
- Supports sensors up to 90mm in length
Applications:
- High-resolution imaging
- Quality control inspection
- Surface inspection
- PCB inspection
- Semiconductor wafer inspection
- Medical imaging devices
- Scientific research
- Aerospace and defense imaging
| Focal Length (f) | 120 mm | ||
| Optical Mag. | x 3.3 | ||
| WD | 82.7 mm | ||
| O/I (Object & Imager distance) | 625.4 mm | ||
| Aperture | F 2.8 ～ 22 | ||
| Working F/# *Value at Iris open | 12.6 | ||
| NA | 0.131 | ||
| DOF at PCoC φ0.04mm | 0.09 mm | ||
| Optical Distortion (Y=43.2) | 0.04 % | ||
| Relative Illuminance (Y=43.2) | 99 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | M 67 P= 0.75 | ||
| Flange Back | 413.2 mm | ||
| Image Circle | φ 90 mm | ||
| Filter Thread | M 62 P= 0.75 | ||
| Weight (approx.) | 950 g | ||
| Dimension | Ø 70 (max.) x L = 129.5 mm | ||
