VS Technology VS-L12025-5/M67S 8K, 12K & 16K Line Scan Macro Lenses
Discover Superior Clarity with VS Technology Line Scan Macro Lenses

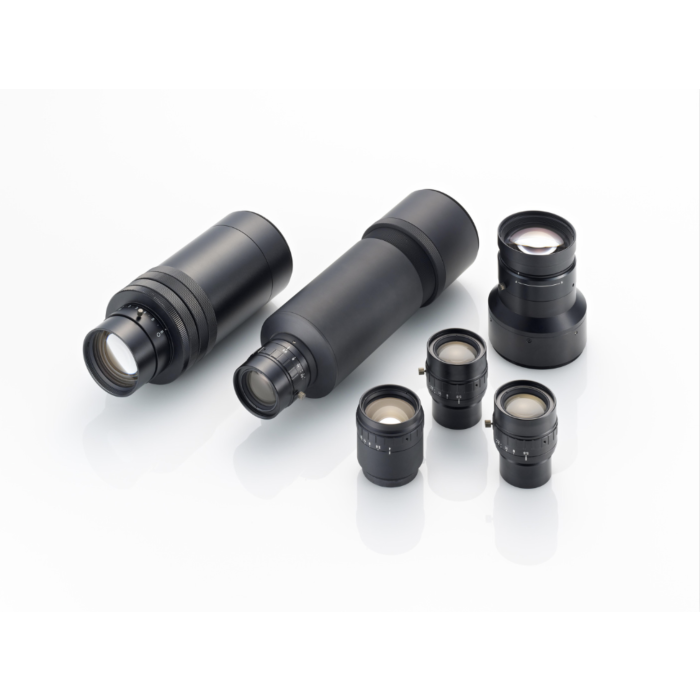

Aegis Electronic Group Inc. proudly presents the VS Technology VS-L12025-5/M67S line scan macro lenses, designed to deliver outstanding performance for industrial and machine vision applications. These lenses are specifically engineered for use with large sensors up to 90mm in length and support resolutions of 8K, 12K, and 16K, making them perfect for high-precision imaging tasks.
The VS-L12025-5/M67S features a focal length of 120mm, a working distance of 78.7mm, and a magnification of 5.0×, ensuring exceptional clarity and detail. With a working F/# of 15.0 and a versatile M67 P=0.75 mount, this lens offers compatibility with various adapters including M42, TFL, and M58. Integrated vibration resistance ensures stable and reliable performance even in challenging environments.
These lenses are ideal for applications that require high resolution and high contrast, such as quality control, materials inspection, and surface analysis. The distortionless design ensures accurate imaging, making them an excellent choice for precise measurement and inspection tasks. With 13 models available, Aegis Electronic Group Inc. offers a versatile solution for any line scan application, providing customers with the best in optical performance and reliability.
Features:
- Focal Length: 120mm
- Working Distance: 78.7mm
- Magnification: 5.0×
- Working F/#: 15.0
- Mount: M67 P=0.75 (compatible with M42, TFL, M58)
- Vibration resistance
- High resolution and high contrast
- Distortionless design
- Supports 8K, 12K, and 16K resolutions
- Compatible with sensors up to 90mm
- 13 models available
Applications:
- Quality control
- Materials inspection
- Surface analysis
- Precision measurement
- Inspection tasks
- High-precision imaging
- Industrial automation
- Production line monitoring
| Focal Length (f) | 116 mm | ||
| Optical Mag. | x 5.0 | ||
| WD | 78.7 mm | ||
| O/I (Object & Imager distance) | 818.7 mm | ||
| Aperture | F 2.5 ～ 22 | ||
| Working F/# *Value at Iris open | 15.0 | ||
| NA | 0.167 | ||
| DOF at PCoC φ0.04mm | 0.05 mm | ||
| Optical Distortion (Y=43.2) | 0.03 % | ||
| Relative Illuminance (Y=43.2) | 100 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | M 67 P= 0.75 | ||
| Flange Back | 600.0 mm | ||
| Image Circle | φ 86.4 mm | ||
| Filter Thread | M 52 P= 0.75 | ||
| Weight (approx.) | 960 g | ||
| Dimension | Ø 72 (max.) x L = 140 mm | ||
