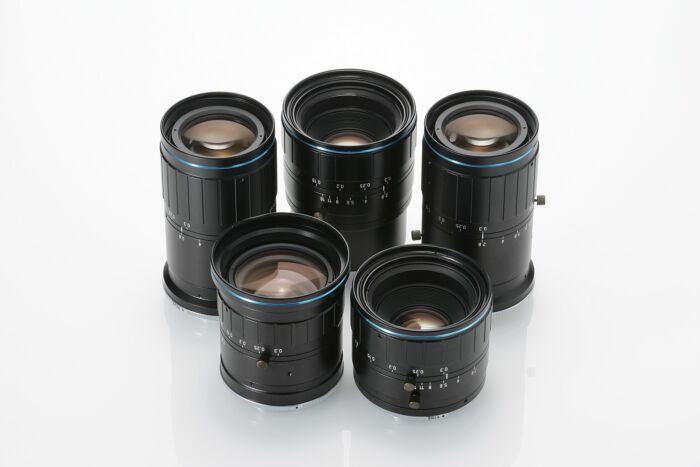

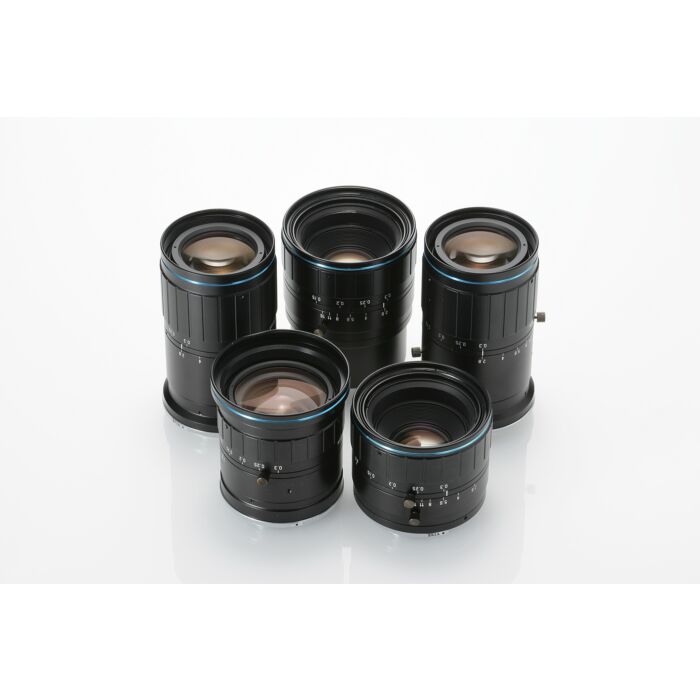

VS Technology VS-L10028/F Line Scan Macro Lenses
Enhance Precision with VS-L10028/F Line Scan Macro Lenses
Aegis Electronic Group Inc. proudly offers the VS-L10028/F Line Scan Macro Lenses from VS Technology, renowned for their exceptional quality and performance in industrial and machine vision applications. These lenses are designed with a focal length range of 100mm, supporting a wide range of sensors from 29mm to 45mm, ensuring compatibility with various imaging setups. With a working distance ranging from 2050.7mm to 409.0mm and a magnification range of 0.05x to 0.3x, these lenses are versatile for diverse imaging needs.
Engineered with precision optics, the VS-L10028/F lenses deliver distortionless imaging, crucial for accurate vision inspection systems in industrial environments. They support multiple mount adaptors including F-mount, M42, TFL, and M58, ensuring flexibility in integration across different systems. The recent introduction of the VS-L20040/F model further expands their capabilities, offering enhanced features to meet evolving industry demands.
Features:
- Focal Length: 100mm
- Working Distance: 2050.7mm to 409.0mm
- Magnification: 0.05x to 0.3x
- Distortionless optics
- Multiple mount adaptors available
Applications:
- Line scan imaging
- Industrial automation
- Quality control inspection
- Precision manufacturing
- Machine vision systems
| Focal Length (f) | 100 mm | ||
| Optical Mag. Range | x 0.05 ～ x 0.3 | ||
| Optical Mag. | x0.05 x 0.1 x 0.2 x 0.3 | ||
| WD | 2050.7 mm 1055.7 mm 565.7 mm 409.0 mm | ||
| O/I (Object & Imager distance) | 2195.2 mm 1200.2 mm 710.2 mm 553.5 mm | ||
| Aperture | F 2.8 ～ 16 | ||
| Working F/# *Value at Iris open | 3.2 3.4 3.7 4.0 | ||
| DOF at PCoC φ0.04mm | 102.4 mm 27.2 mm 7.4 mm 3.6 mm | ||
| Optical Distortion (Y=43.2) | 0.10 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | F-Mount | ||
| Flange Back | 46.5 mm | ||
| Image Circle | φ 45 mm | ||
| Filter Thread | M 52 P= 0.75 | ||
| Weight (approx.) | 360 g | ||
| Dimension | Ø 59 (max.) x L = 98 mm | ||
