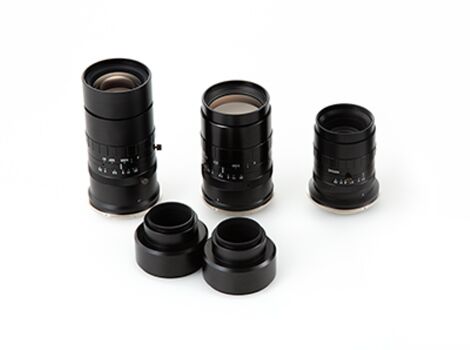

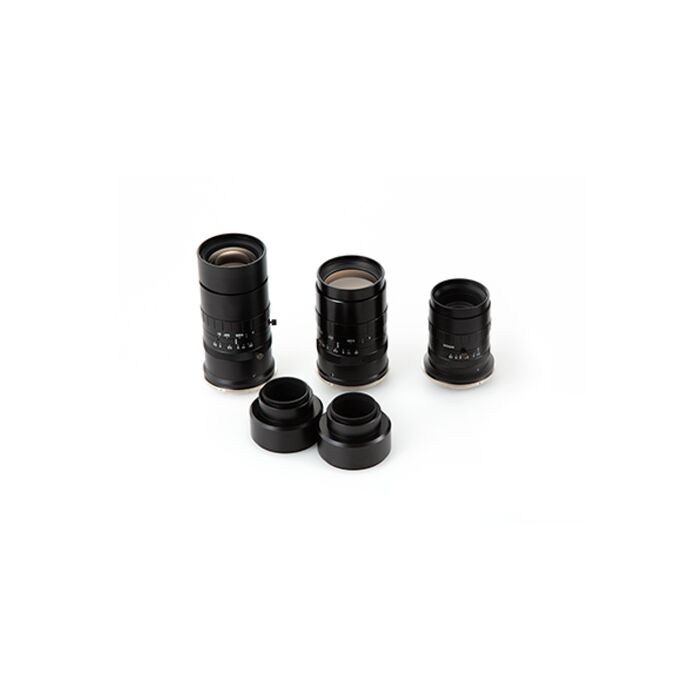

VS Technology VS-HX3535 8K Resolution Large Format Fixed Focal Length Lens
Unveiling the VS-HX3535 8K Resolution Large Format Lens
Experience cutting-edge imaging with the VS-HX3535 8K Resolution Large Format Fixed Focal Length Lens from VS Technology. Boasting an expansive Φ32mm image circle, this lens sets a new standard in industrial camera optics. The 2.74um pixel resolution enhances clarity, surpassing conventional models. Its compact, lightweight design (approximately 500g) ensures versatility without compromising performance.
The VS-HX3535 minimizes distortion and flare, delivering precision optics crucial for demanding industrial and machine vision applications. Compatible with various mount adaptors, including M42, TFL, M58, and more, it seamlessly integrates with diverse setups. This lens caters to industries requiring high-resolution imaging for quality inspection, automation, and surveillance. Its superior pixel resolution ensures detailed, accurate image capture, making it an ideal choice for applications where clarity is paramount.
Features:
- 8K resolution with Φ32mm image circle
- Compact and lightweight (500g or less)
- 2.74um pixel resolution for enhanced clarity
- Less distortion and flare
- Compatible with various mount adaptors
Applications:
- Quality inspection
- Industrial automation
- Surveillance and security
- Machine vision systems
| Focal Length | 35mm |
| Maximum Aperture Ratio | 1: 3.5 |
| Aperture | F3.5 ～16 |
| Angle Of View (1") | 27.6° x 41.1° (Diagonal: 49.9°) |
| M.O.D | 330.4 mm |
| TV Distortion (1.1") | -1.48 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | M 52 P= 0.75 |
| Flange Back | 46.5 mm |
| Sensor Size (max.) | Super 35mm |
| Filter Thread | M 49 P=0.75 |
| Weight (approx.) | 500 g |
| Dimension | Ø 56 (max.) x L = 107.1 mm |
