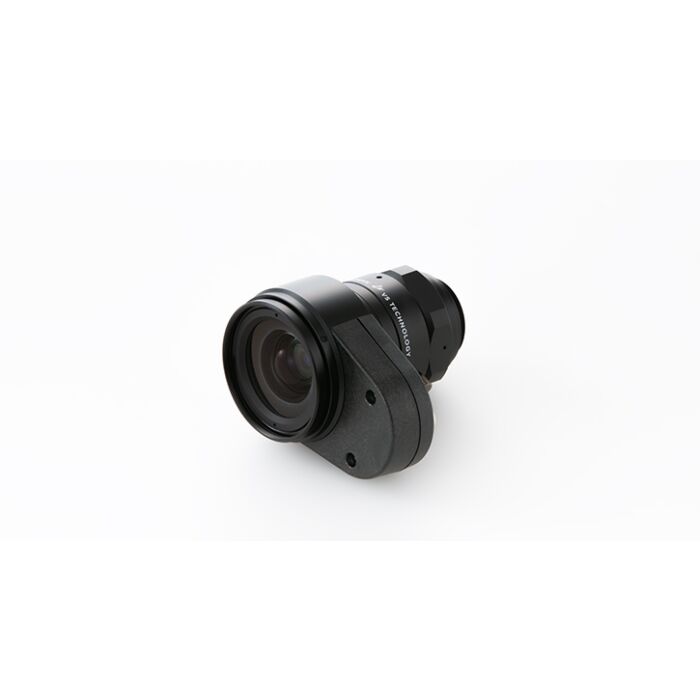

VS Technology VS-FT12HV Wide Angle Fixed Focal Length Lens
Precision Imaging Unleashed: VS-FT12HV Wide Angle Fixed Focal Length Lens
Unlock unparalleled precision with the VS-FT12HV Wide Angle Fixed Focal Length Lens. Crafted for industrial and machine vision applications, this lens is optimized for 12MP 1.1" sensors, offering exceptional 3.45μm resolution support. The large angle of view ensures comprehensive coverage, vital for capturing intricate details in industrial processes.
Equipped with built-in liquid focusing technology, this lens allows seamless adjustments from 150mm to infinity, guaranteeing sharp imaging across varying distances. The optional liquid focusing lens driver and cables provide enhanced flexibility.
The VS-FT12HV lens is engineered by VS Technology, a renowned name in the optics industry. It integrates seamlessly with industrial cameras, delivering high-quality imaging for diverse applications. Precision and adaptability define its core features, making it an ideal choice for industries requiring exacting visual inspections.
Features:
- Optimized for 12MP 1.1" sensors
- Liquid focusing technology
- Adjustable focus from 150mm to infinity
- Seamless integration with industrial cameras
- High-resolution support (3.45μm)
Applications:
- Industrial inspections
- Quality control in manufacturing
- Robotics and automation
- Precision measurement
- Machine vision systems
| Focus Tunable Lens : Optical Power | -2 dpt | 0 dpt | +0.5 dpt | +2.5 dpt |
| Focal Length | 12 mm | |||
| Maximum Aperture Ratio | 1: 2.8 | |||
| Aperture | F 2.8 ~ F16 | |||
| WD | Over Infinity | 1000 mm | 490 mm | 150 mm |
| Angle Of View (1.1") | - | 47.8 X 66.6° | 47.6° X 66.2° | 46.4° X 64.5° |
| TV Distortion (1.1") | - | -7.1% | -7.0% | -6.5% |
| Relative Illuminance (Y=8.75) | - | 64% | 64% | 64% |
| Operation (Iris) | Manual (Lock screw M2) | |||
| Wavelength | Visible | |||
| Mount | C-Mount | |||
| Flange Back | 17.526 mm | |||
| Sensor Size (max.) | 1.1" | |||
| Filter Thread | M 40.5 P=0.5 | |||
| Weight (approx.) | 210 g | |||
| Dimension | φ 47 (max.) × L = 64 mm | |||
| Repeatability in focal power mode | ±0.05dpt (small steps) ±0.1dpt (large steps) | |||
| Response (typical at 30°C,0 to +/- 250mA step) | 5ms | |||
| Setting Time (typical at 30°C,0 to +/- 250mA step) | 25ms | |||
| Lifecycles (10%-90% sinuosidal) | >1,000,000,000 | |||
| Nominal control current with Lens Driver | - 250 mA to 250 mA | |||
| Absolute max. control current | - 500 mA to 500 mA | |||
| Power Consumption | 0W to 0.7W (nominal), 0W to 2.8W (absolute max.) | |||
| Voltage for digital circuitry Vcc | 3.3V | |||
| Serial communication | RS232 | |||
