VS Technology VS-5026VM High Contrast Megapixel Fixed Focal Length Lens

Quick Overview
Enhance your industrial imaging capabilities with the VS-5026VM High Contrast Megapixel Lens. Achieve unmatched clarity and precision for machine vision applications. Explore cost-effective excellence at Aegis Electronic Group now!

Unleash Precision with VS-5026VM Megapixel Lens

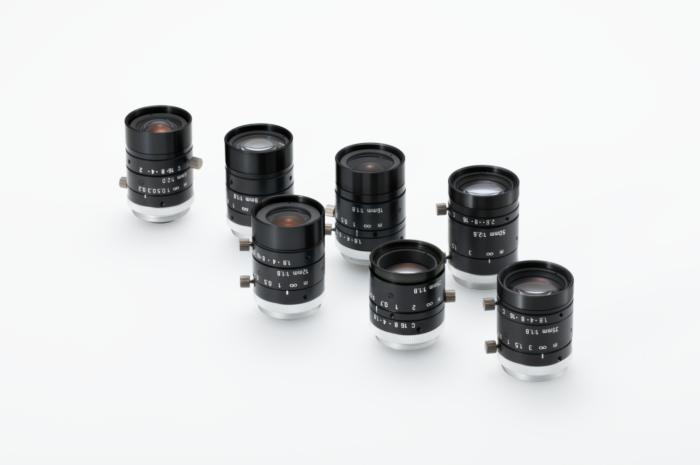

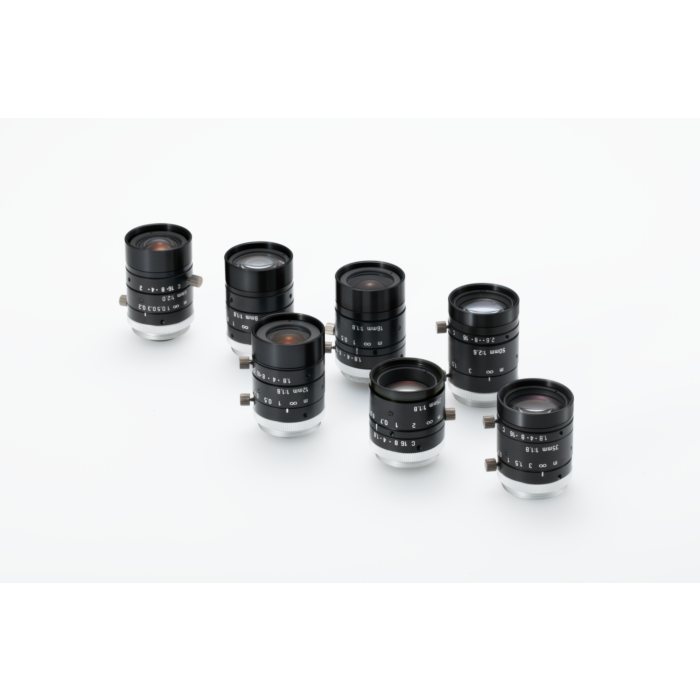

Dive into the world of industrial imaging excellence with the VS-5026VM High Contrast Megapixel Fixed Focal Length Lens from VS Technology, available at Aegis Electronic Group. Boasting a versatile range from f6mm to f50mm across seven models, these lenses are engineered for optimal performance in machine vision applications. The F1.8 brightness and compact design ensure unparalleled clarity, while the vibration-resistant construction guarantees reliability in demanding industrial environments.

Crafted with a keen focus on high contrast and resolution, the VS5026VM lens offers exceptional image quality at a cost-effective price point. With a C-Mount design, these lenses seamlessly integrate into diverse industrial camera setups, providing the precision optics required for critical imaging tasks.

Features:

  • F1.8 brightness
  • Compact design
  • Vibration-resistant construction
  • High contrast and resolution
  • Cost-effective pricing
  • C-Mount compatibility

Applications:

  • Machine vision systems
  • Industrial inspection
  • Quality control
  • Robotics
  • Automation
  • Semiconductor manufacturing
  • Surveillance systems
Focal Length50mm
Maximum Aperture Ratio1:2.6
ApertureF 2.6 ~ Close
Angle Of View (1.1")8.1° x 9.6° (Diagonal: 18.0°)
M.O.D400 mm
TV Distortion (1.1")0.01 %
OperationManual (Lock screw M2)
WavelengthVisible
MountC-Mount
Flange Back17.526 mm
Sensor Size (max.)2/3"
Filter ThreadM 27 P= 0.5
Weight (approx.)54 g
DimensionØ 29 (max.) x L = 39 mm
