VS Technology VS-3514H1 Megapixel Fixed Focal Length Lens

VS Technology VS-5018H1 Megapixel Fixed Focal Length Lens

Unlock precision imaging with the VS-5018H1 Megapixel Lens from Aegis Electronic Group. Perfect for 1" sensors, F1.4 brightness, low distortion, and high-speed CMOS – your gateway to superior industrial vision.
SKU
VS-5018H1

Precision Imaging Unleashed: VS-5018H1 Megapixel Lens

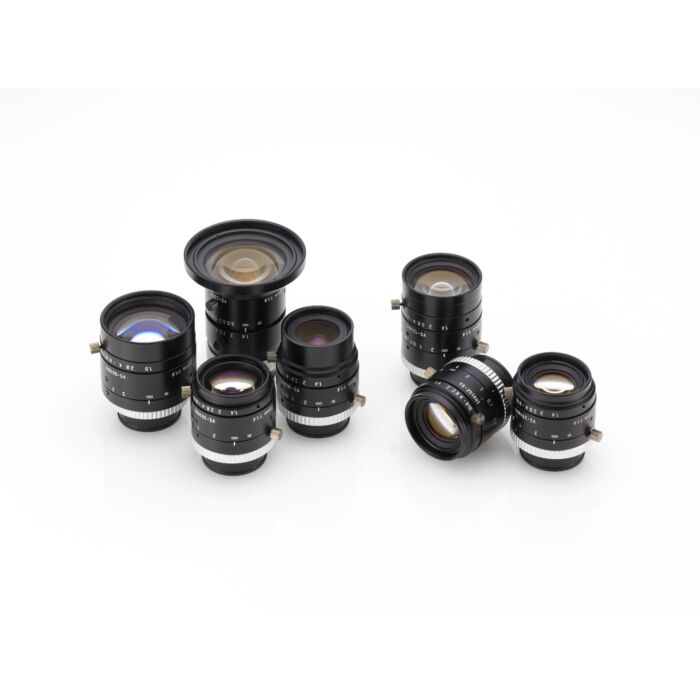

Elevate your industrial imaging capabilities with the VS Technology VS-5018H1 Megapixel Fixed Focal Length Lens, available through Aegis Electronic Group. Engineered to support 1" sensors, this lens offers a versatile range of focal lengths from f6 to 100mm across seven models. With an impressive F1.4 brightness, it is tailored for high-speed CMOS sensors, ensuring optimal performance in demanding industrial and machine vision applications.

The lens boasts low distortion and high contrast, delivering unparalleled image quality for precision-critical tasks. Its exceptional optical design enhances clarity, making it an ideal choice for applications requiring superior image resolution and sharpness. The VS-5018H1 lens features seamless connectivity, ensuring compatibility with various imaging systems.

Whether deployed in robotics, quality control, or automated inspection systems, this lens excels in providing detailed, high-quality imaging. Aegis Electronic Group brings you this cutting-edge lens, promising advanced optics for industrial imaging solutions. Invest in the VS-5018H1 for a transformative experience in precision vision, setting new standards for clarity and performance in the world of industrial optics.

Features:

  • 1" Sensor Support
  • Versatile Focal Lengths (f6 - 100mm)
  • F1.4 Brightness for High-Speed CMOS
  • Low Distortion & High Contrast
  • Seamless Connectivity

Applications:

  • Robotics
  • Quality Control
  • Automated Inspection Systems
  • Industrial Imaging Solutions
Focal Length 50mm
Maximum Aperture Ratio 1:1.8
Aperture F 1.8 ~ 16
Angle Of View (1.1") 12.8° x 12.8° (Diagonal: 18.1°)
M.O.D 500 mm
TV Distortion (1.1") -0.01 %
Operation Manual (Lock screw M2)
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 1"
Filter Thread M 40.5 P= 0.5
Weight (approx.) 128 g
Dimension Ø 44 (max.) x L = 44.5 mm
