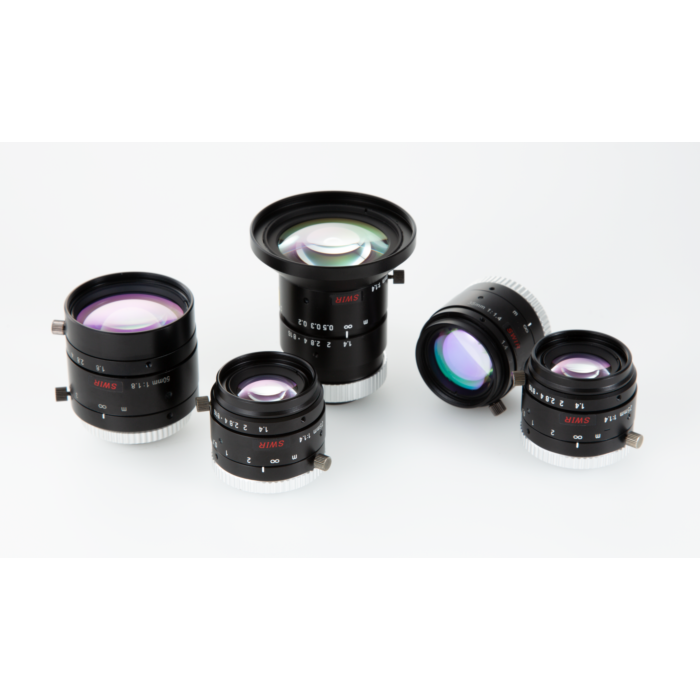

VS Technology VS-3514H1-SWIR Front View Angled Group Lens Image

VS Technology VS-3514H1-SWIR 1" Support, SWIR Fixed Focal Length Lens

VS Technology VS-5018H1-SWIR 1" Support, SWIR Fixed Focal Length Lens

Discover excellence in industrial imaging with Aegis Electronic Group's VS Technology VS-5018H1-SWIR 1" Support Lens. Ideal for machine vision, these lenses offer megapixel resolution and high transmittance for unparalleled clarity. Elevate your industrial applications today!
SKU
VS-5018H1-SWIR

Precision Redefined: Unleash Cutting-Edge Imaging with VS Technology VS-5018H1-SWIR 1" Support Lens

Elevate your industrial imaging capabilities with the VS Technology VS-5018H1-SWIR 1" Support, SWIR Fixed Focal Length Lens from Aegis Electronic Group. With 1" support and seven models ranging from f6mm to f50mm, this lens series ensures unparalleled clarity in machine vision applications. Boasting high transmittance across the 900nm to 2000nm spectrum, it excels in shortwave infrared (SWIR) imaging, delivering megapixel resolution for precise analysis.

These C-Mount lenses offer seamless integration with industrial cameras, providing a reliable connection for optimal performance. Whether used in quality control, robotics, or surveillance, these lenses cater to diverse industrial applications, ensuring enhanced accuracy and efficiency. Trust in the expertise of VS Technology and Aegis Electronic Group to deliver cutting-edge optical solutions, empowering your vision systems with unmatched precision.


Features:

  • 1" support, seven models (f6mm - f50mm)
  • High transmittance (900nm - 2000nm)
  • Megapixel resolution
  • C-Mount compatibility


Applications:

  • Quality control
  • Robotics
  • Surveillance
  • Industrial inspection
  • Machine vision systems
Focal Length 50mm
Maximum Aperture Ratio 1: 1.8
Aperture F1.8 ~16
Angle Of View (1") 12.8° x 12.8° (Diagonal: 18.1°)
M.O.D 500 mm
TV Distortion (1.1") -0.01 %
Operation Manual (Lock screw M2)
Wavelength Short Wave IR
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 1"
Filter Thread M 40.5 P=0.5
Weight (approx.) 128 g
Dimension Ø 44 (max.) x L = 44.5 mm
