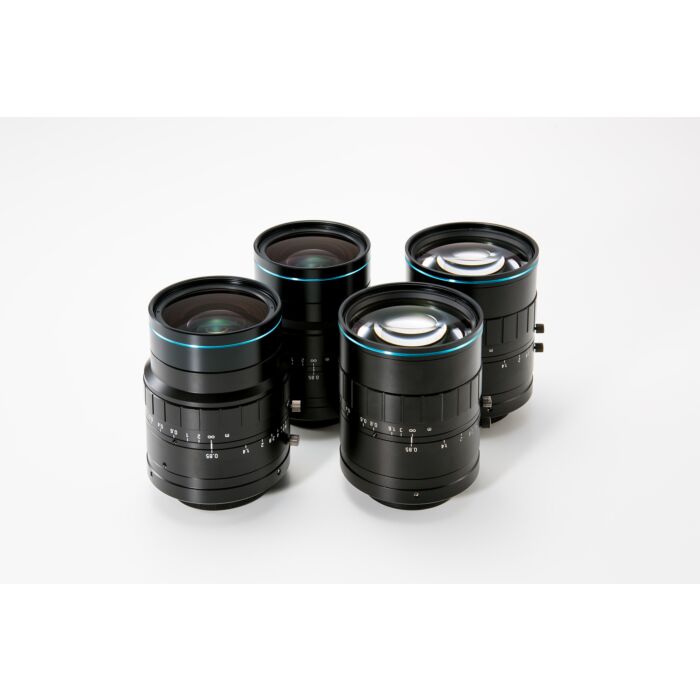

VS Technology VS-50085/C Front View Group Lens Image

VS Technology VS-50085/C Fixed Focal Length Lens with F/0.85 for High Speed Cameras

VS Technology VS-50085/M42 Fixed Focal Length Lens with F/0.85 for High Speed Cameras

Experience unparalleled precision with VS Technology VS-50085/M42 Fixed Focal Length Lenses. Perfect for high-speed cameras, these lenses deliver F/0.85 brightness, low distortion, and high contrast. Elevate your industrial imaging and machine vision applications with cutting-edge optics.
SKU
VS-50085/M42

Discover Precision with VS-50085/M42 Fixed Focal Length Lenses

Unleash the power of VS Technology VS-50085/M42 Fixed Focal Length Lenses, meticulously engineered for high-speed cameras in industrial and machine vision environments. With support for 4/3" sensors, these lenses boast an impressive F/0.85 brightness, ensuring optimal performance even in low-light conditions. The floating system incorporated guarantees peak performance across various magnifications, maintaining low distortion and high contrast.

These lenses feature an M42-Mount, providing versatility for different setups (also available in C-Mount/BTO). Ideal for industrial imaging, the VS-50085/M42 lenses find their niche in applications requiring precision optics. The design, specifically tailored for high-speed cameras, ensures unparalleled clarity and accuracy in capturing fast-paced processes. From manufacturing to quality control, these lenses elevate machine vision technology, offering a reliable solution for diverse imaging needs.

Features:

  • F/0.85 brightness for low-light performance
  • 4/3" sensor support
  • M42-Mount (also available in C-Mount/BTO)
  • Floating system for consistent performance at any magnification
  • Low distortion and high contrast
  • Tailored design for high-speed cameras


Applications:

  • Industrial imaging
  • Machine vision systems
  • High-speed camera setups
  • Quality control processes
  • Precision optics requirements
Focal Length 50mm
Maximum Aperture Ratio 1: 0.85
Aperture F 0.85 ~ 16
Angle Of View (1.1") 15.9° x 21.0° (Diagonal: 26.0°)
M.O.D 240 mm
TV Distortion (1.1") -0.30 %
Operation Manual (Lock screw M2)
Wavelength Visible
Mount M 42 P= 1.0
Flange Back 19.53 mm
Sensor Size (max.) 4/3"
Filter Thread M 62 P= 0.75
Weight (approx.) 610 g
Dimension Ø 65 (max.) x L = 79.5 mm
